TC3MHR series features high-resolution telecentric lenses designed for sensors up to 1.1″ and is the perfect choice for advanced metrology applications. Our TC3MHR series delivers unmatched resolution thanks to the low F# as well as low distortion and homogeneous image quality while offering the best performance-to-price ratio.

The compact and robust design of TC3MHR lenses allows easy integration in industrial environments. Additionally, the camera phase can be easily adjusted by simply loosening the set screws positioned in the eyepiece.

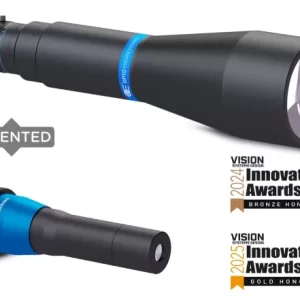

HC series features hypercentric lenses for sensors up to 1.1” designed for the simultaneous inspection of the inner sides and bottom surfaces of hollow cylindrical samples of various diameters, such as bottles, cans, vials, threaded holes, and tubes.

HC lenses image the inside of cavities from the outside thanks to the special optical path of the rays passing through bottlenecks and narrow openings. This unique optical design allows to fully inspect the inside surfaces of cavities without the need to rotate the sample or use complex multi-camera systems.
In addition, HC lenses feature variable iris for maximum flexibility and a wide viewing angle to clearly image the features of interest.

HC lenses are available in three different versions:

• SIDE & BOTTOM hypercentric lenses (i.e., HCSIxxx models) are designed for the inspection of both the bottom and the inner walls of cavities in perfect focus;
• BOTTOM hypercentric lenses (i.e., HCBIxxx models) have been developed to specifically inspect the bottom surface of hollow objects at high resolution. By changing the f/N of the lens, part of the side wall can also be inspected in focus.
• NANO hypercentric lenses (i.e., HCN13xxx models) are designed for the high-quality inspection of the inner surfaces of small cavities, down to 0.75 mm.

Hypercentric lenses innovative optical design has been optimized to image inner defects in containers and cavities, specifically for the beverage, pharma, cosmetics and metal industries but also to generally inspect hollow objects in many other industry sectors.

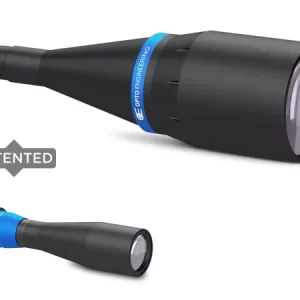

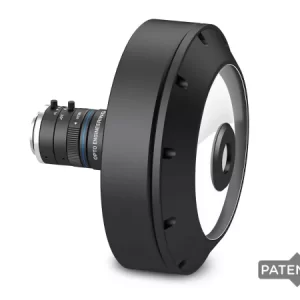

PCCD series features catadioptric lenses exclusively developed and manufactured by Opto Engineering® to enable the 360° top and side view of objects with a single camera.

Their innovative optical design, based on a catadioptric system, makes it possible to image objects of different diameters, ranging from 7.5 mm to 110 mm.

The sides of the object are imaged through the catadioptric system, while the top surface is imaged directly onto the center of the sensor area, allowing for a complete and perfectly focused view of the inspected object.

In addition, the sides of the object being inspected are observed at a wide viewing angle of 35°: this allows to clearly image the features of interest even when inspecting complex geometries.

The compactness and high resolution of these lenses make them ideal to inspect components like pharmaceutical containers, plastic caps, pre-forms, bottlenecks, screws and other threaded objects.

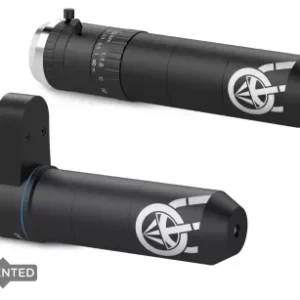

Opto Engineering® PCHIL series features hole inspection lenses for the inner inspection of cavities and containers in perfect focus.

Unlike common optics which can only image flat fields of view, these lenses are specifically designed to image both the inner bottom and vertical walls of cavities, cylinders, cones, bottles or threaded objects from the outside.

Thanks to the large angle of view of 82° and the innovative optical design with variable iris and large aperture, these lenses are compatible with a wide range of inspections and different object diameters.

PCHIL series also includes models with integrated Optotune liquid lens technology (-EL models) to provide the flexibility of an immediate and precise remote focusing. This can be extremely useful, for example, for the inspection of complex objects with diameters of various sizes.

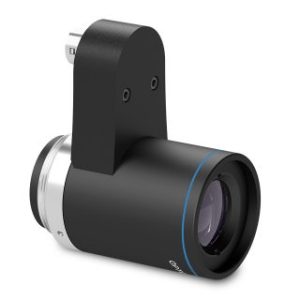

The EL5MP series features 5 MP fixed focal length optics for sensors up to 2/3″ with integrated Optotune liquid lens technology. The high-resolution optical design combined with the liquid lens allows autofocus within milliseconds and acquisition of high-quality images.

These optics are ideal for high-speed inspections at different working distances typical, for example, of the food and beverage sector as well as the pharmaceutical and cosmetic industries. Moreover, EL5MP optics are ideal for guiding robotic arms used for applications such as pick-and-place and bin-picking.

The EL5MP series guarantees high repeatability and focus stability as each lens is calibrated in temperature using a specific algorithm developed ad hoc.
