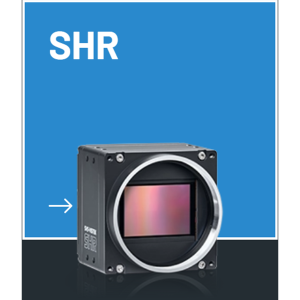

SHR CXP

The Fastest Standardized Interface For Industrial Cameras Over Long Distances

The SHR offers low-noise CMOS sensors with the highest resolution and large pixels in medium format. The high-quality harmonization of the pixels guarantees an impeccable image. Highest structural precision in sensor adjustment in a solid, thermally highly optimized housing make the SHR with its lens shading correction the ideal partner for the most demanding optical tasks.

shr cxp12

Benefits & Highlights

CoaXPress is currently the fastest standardized interface for industrial cameras over long distances with thin cables. The industrial I/O interface facilitates integration.

Outstanding image quality
User defined shading correction
User defined pixel correction
Quad CoaXPress-6 or CoaXPress-12
Power over CoaXPress
Integrated 4-channel LED strobe controller
Industrial TTL-24V I/O interface with SafeTrigger, programmable logic functions, sequencers and timers, RS232
M72 lens mount (FFD 19.55)
Suitable for cleanrooms

SHR CXP12 back sRGB

Areas of application

The SHR with CoaXPress interface is designed for applications where speed and efficiency are required to bring quality to the market economically.

Typical applications include the inspection of semiconductors, solar panels or flat screens, as well as aerial photography.

SVS-VISTEK FXO [CoaXPress 1 & 2 connections]

fxo cxp

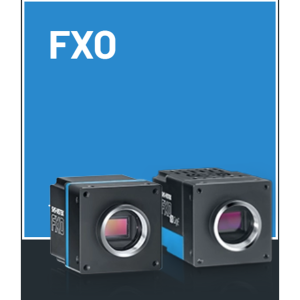

FXO CXP

Data Rates Of 12.5, 25, Or 50 Gbit/s

The FXO stands for outstanding image quality. The fast CoaXPress-12 interface gives the camera outstanding properties in terms of trigger latency and constant data rate.

Designed For Demanding Industrial Automation

An excellent, low-noise image with high dynamic range is complemented by a comprehensive feature set. The Sony Pregius S sensors used are characterized by high light sensitivity and excellent homogeneity. Signal voltages, temperature resistance, I/O control, integrated strobe controller and firmware features are designed for applications in demanding industrial automation.

Technical highlights:

Sony Pregius S sensor, low-noise electronics
GenICam 3.0 software interface
CoaXPress-12 with 1 or 2 connections
LUT, binning, ROI
Electrical and optical inputs
Up to 60°C operating temperature
Integrated 4-channel strobe controller
Industrial TTL-24V I/O interface with SafeTrigger, logic functions, programmable sequencers and timers, RS232 interface
Ideal for cleanrooms

FXO CXP12 2Connection back sRGB

Areas Of Application

The FXO CoaXPress environment is characterized by the highest demands on data rate and latency behavior. The thin CoaXPress cable can be used to power the camera (PoCXP) and is suitable for distances of up to 25 m.

The integrated GenICam strobe controller effectively saves costs by reducing the number of components. In plant engineering, the fast FXO scores with the latest sensor technology, an extended temperature range, and numerous I/O interfaces.

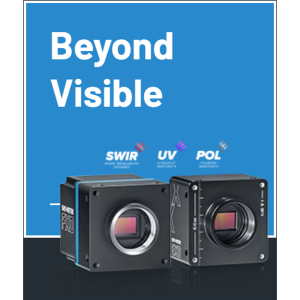

SVS-VISTEK BeyondVisible [SWIR]

Extended perception

Properties of light that are invisible to humans can be made visible with cameras from SVS-Vistek. These cameras extend the standard industrial image processing system in terms of polarization planes or wavelengths from infrared to ultraviolet.

Two black cameras with silver lens mount and sensor, on a reflective surface.

The invisible see and measure

Wavelengths from infrared to ultraviolet enable invisible markings, the identification of materials and much more. Properties of light such as polarization facilitate industrial inspection in many industrial applications with non-metallic materials. We offer highly sensitive cameras for technical and biological applications.

Features

SWIR wavelengths up to 1,700 nm
UV wavelength range from 200 nm
Only one sensor for SWIR and VIS wavelengths
High quantum efficiency and sensitivity
Measurement of the polarization angle
Separate intensities for horizontal and vertical polarization
Proven industrial machine vision design
GenICam and GenTL interface
Depending on model with GigE Vision, 10GigE, CoaXPress-12 or USB3 Vision interface

SWIR

Our SWIR cameras are based on Sony SenSWIR technology and our proven EXO and FXO camera designs. Due to the wide wavelength range and high sensitivity, they enable extremely compact inspection solutions in the VIS range from 400nm up to the SWIR range at 1700nm. Our innovative thermal design is the basis of the outstanding optical quality and the excellent dynamic range. The integrated 4-channel strobe controller supports complex analysis scenarios.

Sony SenSWIR sensor with 400 – 1700 nm spectral sensitivity and high quantum efficiency
Advanced two-point NUC (Non Uniformity Correction)
CoaXPress-12 for lowest latency and highest speed
10GigE for economical bandwidth and easy integration
LUT, binning, ROI, burst mode
Up to 60°C operating temperature
Industrial TTL-24V I/O interface with SafeTrigger, logic functions, programmable sequencers and timers, RS232 interface, electrical and optical inputs, GenICam and GenTL

ATTENTION: This product is subject to export control and requires written information on intended use and final destination!

Two black industrial cameras with sensors standing next to each other on a shiny surface.

Industrial design

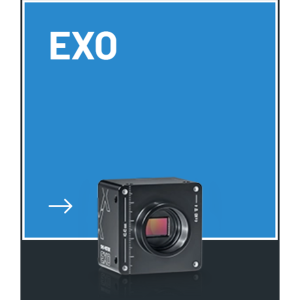

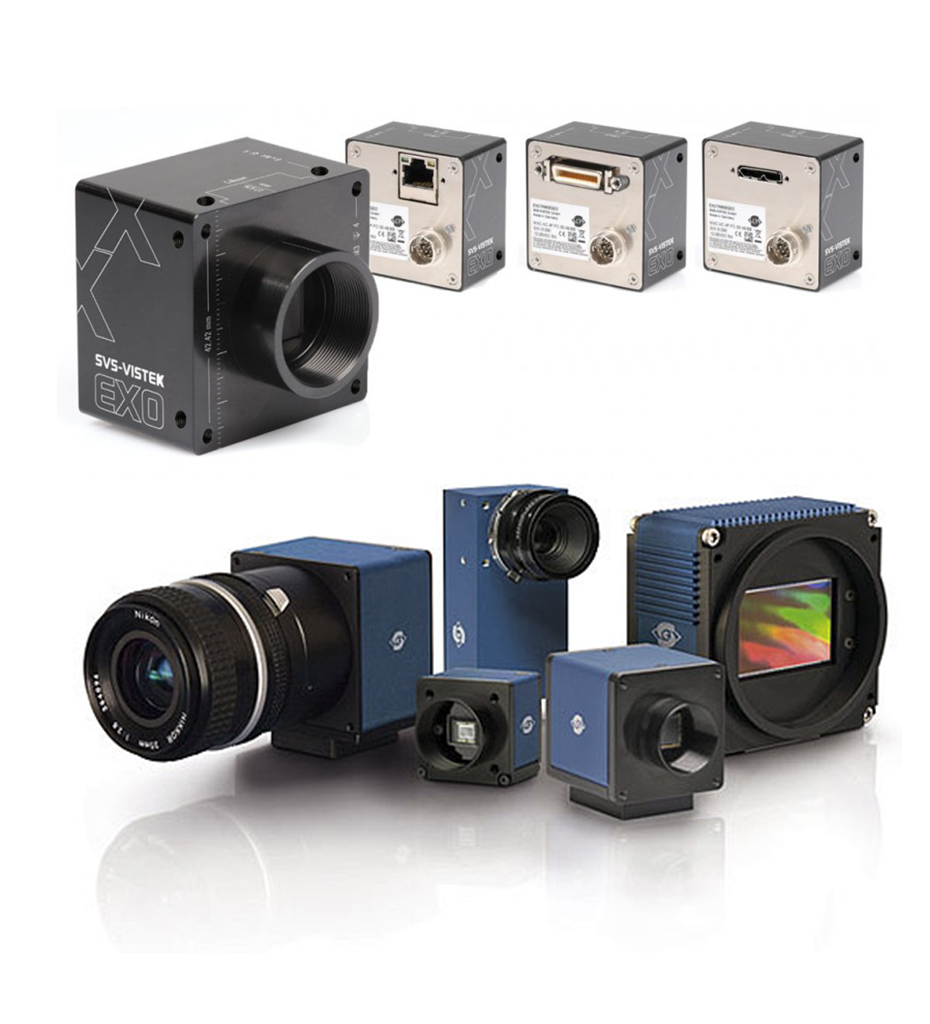

All of our special cameras for invisible properties of light are based on the proven camera concepts of the EXO series and the FXO series. While the EXO covers the established GigE Vision and USB3 Vision interfaces, the FXO series can provide the highest frame rates with its high-speed 10GigE and CoaXPress-12 interfaces.

A close thermal connection of the low-power optimized electronics and the sensor to the housing enables operating temperatures of up to 60°C. The integrated power I/O interface enables simple control tasks to be performed with hardware precision via the PLC functionality. Up to 4 LED lights can be controlled directly without additional drivers, ideal for the identification of materials. All Beyond Visible cameras from SVS-Vistek have the following features: Region of Interest (ROI), logical trigger functions (PLC) with programmable timers, sequencers and logic, electrical and optical inputs are specified with TTL-24V.
Rear of two black cameras, one with 10 GigE Vision connection and the other with USB3 Vision connection. Both have Hirose/Powerful I/O connections.

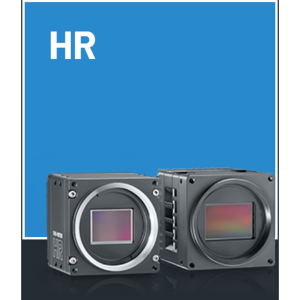

SVS-VISTEK HR [CoaXPress]

hr cxp

HR CXP

Latest Technology And Fast Data Transfer Speeds

The HR CXP-6 and CXP-12 cameras are equipped with the latest CoaXPress technology, which enables lightning-fast data transfer speeds of up to 12.5 Gbps per channel. This not only ensures seamless integration into existing systems, but also the ability to capture and process high-resolution images in real time.

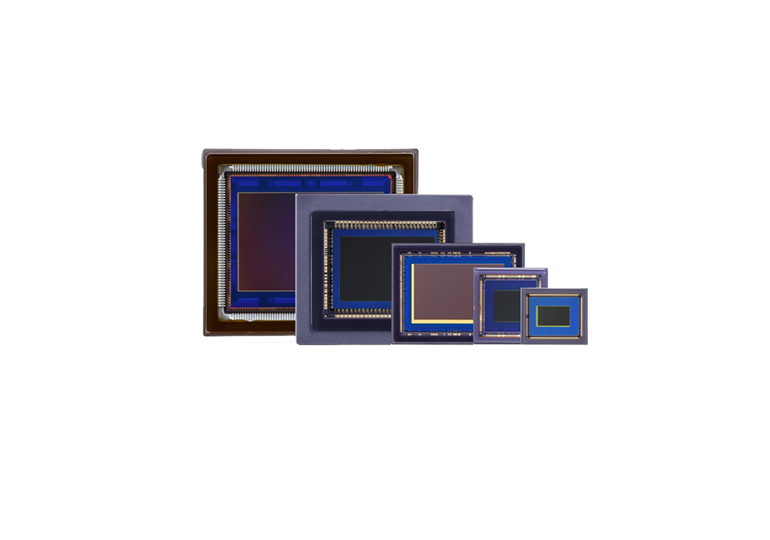

Modern, Fast And High-Resolution CMOS Sensors

CoaXPress was developed to cope with the increasing bandwidths of new sensor generations. Up to 6.25 GBit/s or 12.5 GBit/s can be transmitted per line. SVS-Vistek supplies CoaXPress cameras with four CoaXPress-6 or CoaXPress-12 lines and thus provides a data bandwidth of 25 GBit/s or 50 GBit/s.

The HR series with CoaXPress is equipped with modern, fast and high-resolution CMOS sensors. With outstanding frame rates, the HR offers a wide range of industrial hardware and software features.
