Product Catalog
Smart Vision Lights is the leading designer and manufacturer of LED lighting solutions for any type of machine vision or automation camera application.
The ODRL300 Large Ring Light Series is designed to produce a homogeneous, uniform light pattern for larger applications and longer working distances. This light operates in OverDrive™ strobe mode. The ODRL300 runs on an industry-standard 24VDC. The 1-10VDC analog control line gives the user total control over intensity. Proper heat dissipation is achieved using the side extrusion. The 45 mm extrusion makes mounting the light easy when using drop-in T-nuts. The 5-pin M12 connector makes wiring to the light simple.
The JWL225-MD, part of the Camera to Light (CTL) Series, is an intense light source meant to provide external illumination for machine vision cameras or smart cameras where the built-in illumination is not enough. This light can be connected directly to camera housings through optional mounting plates to illuminate areas larger than what is normally covered by the camera’s internal light source. The JWL225-MD is compatible with many machine vision cameras and can be directly connected and controlled through a camera’s trigger output.
More light in less space

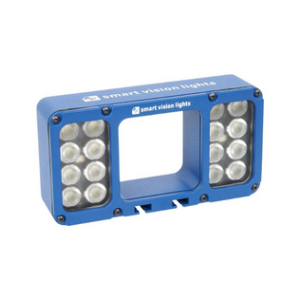

The JWL150 is an intense, compact light source to provide external illumination for machine vision cameras or smart cameras where the built-in illumination is not enough.
Camera integration
Connect the JWL150 directly to camera housings through optional mounting plates to get the light you need in a small footprint. The JWL is compatible with many machine vision cameras and can be directly connected and controlled through a camera’s trigger output.
The options you need
With a working distance from 500 mm all the way to 2000 mm, the JWL offers high intensity light even at longer distances. The built-in Multi-Drive™ driver offers both continuous operation and OverDrive mode in the same light.

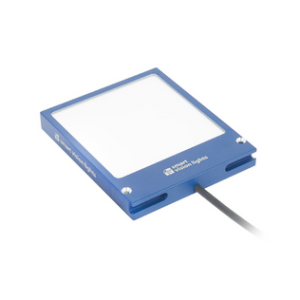

The MBL Series of backlights is a mini back light with an ultra-slim design. Edge-enhancing technology is built-in to provide maximum contrast to backlit objects, providing the ability to get sharp images of round and highly reflective objects. The MBL Series is a Multi-Drive™ light capable of being adjusted remotely from a smartphone or tablet through SmartVisionLink.
MBL mini backlights provide a high density of LEDs with an active area ranging from 25 x 25 mm to 100 x 100 mm. The integrated constant current Multi-Drive™ LED driver simplifies installation and use while delivering either constant or strobe operation. And with a surface illuminance of up to 190,000 lux in continuous mode and 2,180,000 lux in OverDrive™, these are seriously bright backlights.
Built-in edge enhancing technology provides collimated lighting for uniform, consistent light. Get excellent edge contrast for shiny parts and curved edges while improving overall image clarity.

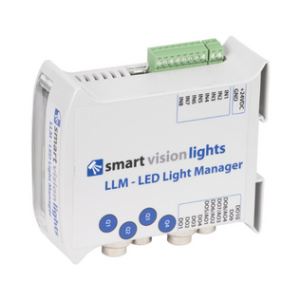

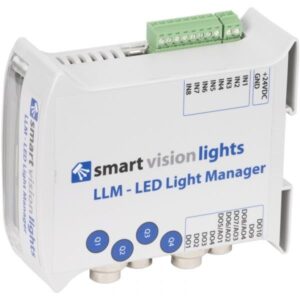

The LLM can drive multiple lights of virtually any type or up to four individual zones or channels within an integrated photometric or multispectral ring light solution. Each program can contain up to six sequences with up to four lights set to continuous on, off, any intensity level in between, and even OverDrive™ strobe mode.
To program the four zones of a single LED illumination system such as a ring light or four separate LED light sources, simply connect the LLM to a computer via Ethernet cable and use the browser-based interface to program the light through a series of drop-down menus. The intuitive user interface makes it possible for technicians of any level to set image sequences and program intensities for each light.
The LLM system and light kit bundles initially will target 3D photometric stereo and 2D multi-light applications. When used in conjunction with specialized photometric stereo software from Matrox Imaging, Cognex, TeleDyne DALSA, SICK or MVTec, the lighting system can solve previously intractable tasks, such as finding a defect in the surface of a part. By capturing successive images of a stationary object as it is illuminated by a sequence of lights, photometric image processing software can determine the 3D surface orientation of every pixel across the object’s surface. The same technique can generate 2D images of multiple regions of interest using separate lights and/or cameras.
LLM is also appropriate for multispectral imaging solutions where the LED wavelengths – and not broad-spectrum white lights with optical filters in front of the sensor – are the spectral band selection mechanisms. Using the color of illuminating light as the spectral band selection mechanism can greatly reduce the cost of multispectral imaging solutions while increasing budgets for imaging applications.

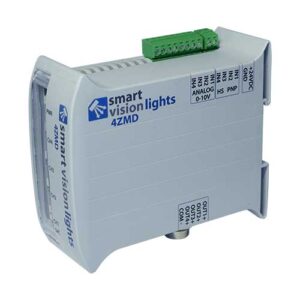

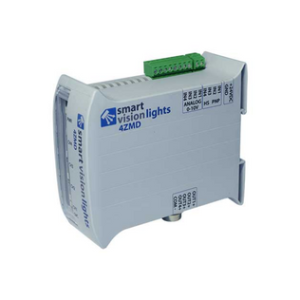

The 4ZMD is an external driver with four individual built-in channels, allowing control of up to four zones within a single light or four individual lights with no built-in drivers. Users can set different intensity levels for each zone channel because they act independently of each other. Also, depending on the channel’s configuration, intensity controls can adjust the intensity for either continuous operation or OverDrive™ strobe mode.
When connected to the LED Light Manager (LLM), each individual channel can be set to continuous operation, off, any intensity level in between, and even OverDrive™ strobe mode.

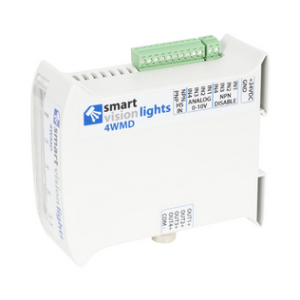

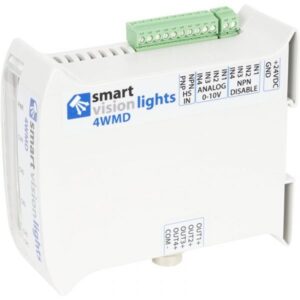

The 4WMD is a four-channel external driver developed for multi-wavelength lights. The 4WMD permits up to four individual wavelengths to be controlled independently of each other. This external driver includes Multi-Drive™, which allows a single channel to drive LEDs in continuous operation or OverDrive™ strobe mode separate from the other channels. For quick and easy adjustments, each output channel has its own tuning control located on the front of the driver. Wavelength tuning can be controlled for continuous operation using the analog input channels as well.
The 4WMD can be used with any combination of up to four LED wavelengths, including white, red, blue, green, UV, IR, and SWIR. Additional wavelength options are available.

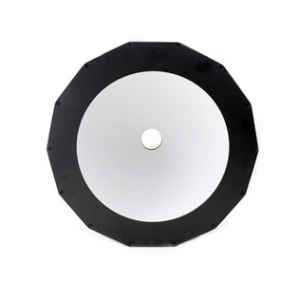

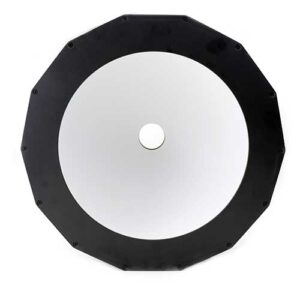

The DDL-250 is a diffuse dome light with a 235 mm viewing area designed for reading barcode, imperfections/rounded/highly reflective products or for inspecting products with an even, uniform, and repeatable light intensity. The DDL-250 has been designed with simplicity and functionality in mind. The DDL-250 features Multi-Drive™, which allows the user to operate the light in continuous operation or OverDrive™ strobe mode, depending on the wiring method. NPN and PNP trigger signal input and a built-in 1-10VDC analog intensity control allows for maximum versatility. The industry-standard 5-pin M12 connector makes for easy installation

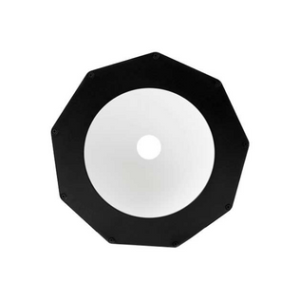

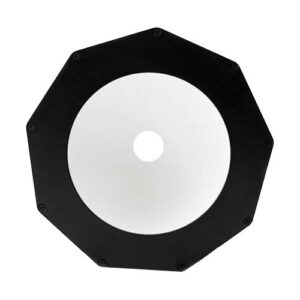

The DDL-150 is a diffuse dome light with a 140 mm viewing area designed for reading barcode, imperfections/rounded/highly reflective products or for inspecting products with an even, uniform, and repeatable light intensity. The DDL-150 has been designed with simplicity and functionality in mind. The DDL-150 features Multi-Drive™, which allows the user to operate the light in continuous operation or OverDrive™ strobe mode, depending on the wiring method. NPN and PNP trigger signal input and a built-in 1-10VDC analog intensity control allows for maximum versatility. The industry-standard 5-pin M12 connector makes for easy installation.

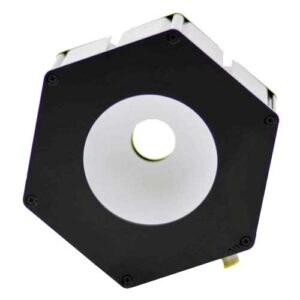

The DDL-100 is a diffuse dome light with a 75 mm viewing area designed for reading barcode, imperfections/rounded/highly reflective products or for inspecting products with an even, uniform, and repeatable light intensity. The DDL-100 has been designed with simplicity and functionality in mind. The DDL-100 features Multi-Drive™, which allows the user to operate the light in continuous operation or OverDrive™ strobe mode, depending on the wiring method. NPN and PNP trigger signal input and a built-in 1-10VDC analog intensity control allows for maximum versatility. The industry-standard 5-pin M12 connector makes for easy installation

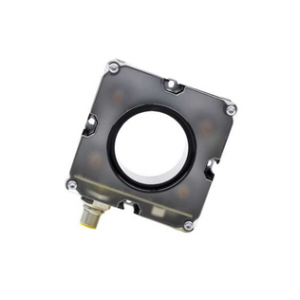

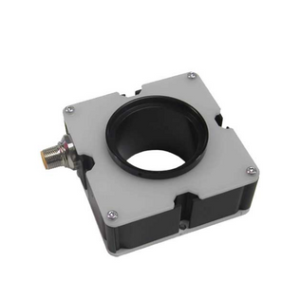

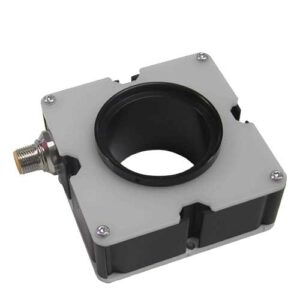

The ODRD80 EZ Mount Ring Light Series features a factory-installed diffused lens cover and is an all-around durable light. It features an OverDrive™ strobe driver with NPN or PNP signal trigger inputs. Its simple plug-and-play 5-pin M12 connector is easy to use. The 10%-100% intensity control gives users full control over light output. A standard 42 mm inner hole diameter allows for use with nearly all camera systems with available step-up and step-down conversion kit adapters.

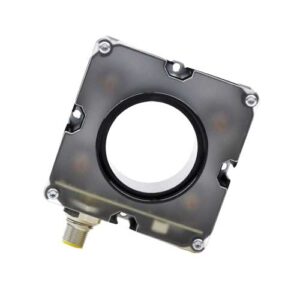

The ODR80 EZ Mount Ring Light Series is an all-around durable light that operates in OverDrive™ strobe mode. Its simple plug-and-play 5-pin M12 connector is easy to use. The 1-10VDC intensity control gives users full control over light output. A standard 42 mm inner hole diameter allows for use with nearly all camera systems with available step-up and step-down conversion kit adapters.
The RD80EZ Mount Ring Light Series is an all-around durable light. Its simple plug-and-play 5-pin M12 connector is easy to use. The RD80 has an optimal working distance between 100 mm and 400 mm and will operate with either an NPN or a PNP signal and runs on an industry-standard 24VDC. The 10%-100% intensity control gives users full control over light output. A standard 42 mm inner hole diameter allows for use with nearly all camera systems with available step-up and step-down conversion kit adapters.

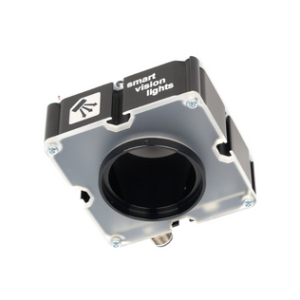

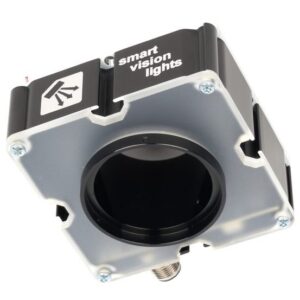

The R80 EZ Mount Ring Light is an all-around durable light. Its simple plug-and-play 5-pin M12 connector is easy to use. The R80 operates with either an NPN or a PNP signal and runs on an industry-standard 24VDC. The 10%-100% intensity control gives users full control over light output. A standard 42 mm inner hole diameter allows for use with nearly all camera systems with available step-up and step-down conversion kit adapters.

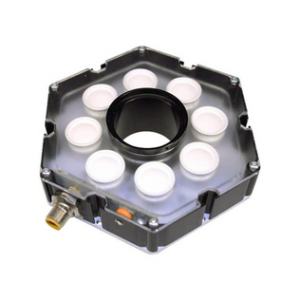

The RCC130 EZ Mount Ring Light contains special lenses to produce a narrow uniform/homogeneous light pattern. Its simple plug-and-play 5-pin M12 connector is easy to use. The RCC130 operates with either an NPN or a PNP signal and runs on an industry-standard 24VDC. The 10%-100% intensity control gives users full control over light output. A standard 42 mm inner hole diameter allows for use with nearly all camera systems with available step-up and step-down conversion kit adapters.
The RC130 EZ Mount Ring Light Series was designed to produce a large uniform/homogeneous light pattern. To achieve this, the RC130 contains special lenses for creating this near collimated light pattern. Its simple plug and play 5-pin M12 connector is easy to use, while allowing for full control. The RC130 operates with either an NPN or a PNP trigger signal input and runs on an industry-standard 24VDC. The 10%-100% intensity control assists in gaining full control of the light’s output. A standard 42 mm inner hole diameter allows for use with nearly all camera systems with available step-up and step-down conversion kit adapters.

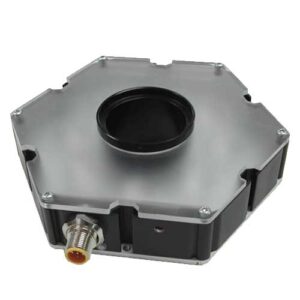

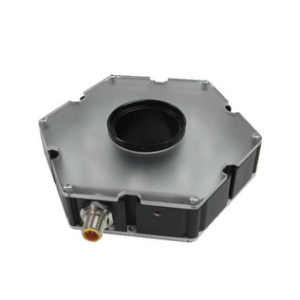

The ODR130-16 EZ Mount Ring Light Series is an all-around durable light that also features an OverDrive™ driver with NPN or PNP signal options and provides double the light output as the standard ODR130. Its simple plug-and-play 5-pin M12 connector is easy to use. The 10%-100% intensity control gives users full control over light output. A standard 42 mm inner hole diameter allows for use with nearly all camera systems with available step-up and step-down conversion kit adapters.

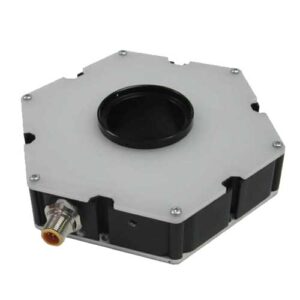

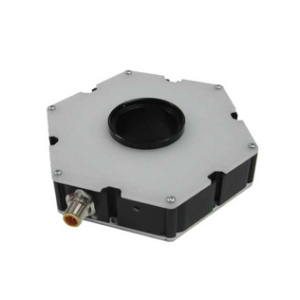

The ODRD130 EZ Mount Ring Light Series features a factory installed diffused lens cover and is an all-around durable light. It features an OverDrive™ strobe driver with NPN or PNP signal trigger inputs. Its simple plug-and-play 5-pin M12 connector is easy to use. The 10%-100% intensity control gives users full control over light output. A standard 42 mm inner hole diameter allows for use with nearly all camera systems with available step-up and step-down conversion kit adapters.
The ODR130 EZ Mount Ring Light Series is an all-around durable light that also features an OverDrive™ strobe driver with NPN or PNP signal trigger inputs. Its simple plug-and-play 5-pin M12 connector is easy to use. The 10%-100% intensity control gives users full control over light output. A standard 42 mm inner hole diameter allows for use with nearly all camera systems with available step-up and step-down conversion kit adapters.

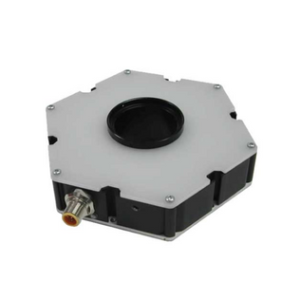

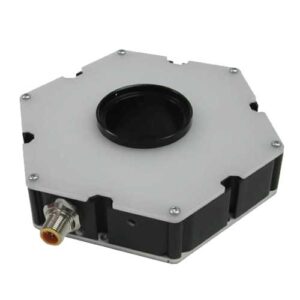

The RD130 EZ Mount Ring Light Series features a factory-installed diffused lens cover and is an all-around durable light. Its simple plug-and-play 5-pin M12 connector is easy to use. The RD130 has an optimal working distance between 100 mm and 400 mm and will operate with either an NPN or a PNP trigger signal inputs and runs on an industry-standard 24VDC. The 10%-100% intensity control gives users full control over light output. A standard 42 mm inner hole diameter allows for use with nearly all camera systems with available step-up and step-down conversion kit adapters.

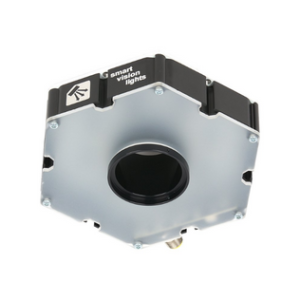

Heat is dissipated through the aluminum housing, allowing the R130 EZ Mount Ring Light Series to be run at a higher current and a greater intensity. Its simple plug-and-play 5-pin M12 connector is easy to use. The 10%-100% intensity control gives users full control over light output will operate with either an NPN or a PNP trigger signal inputs and runs on an industry-standard 24VDC. A standard 42 mm inner hole diameter allows for use with nearly all camera systems with available step-up and step-down conversion kit adapters.

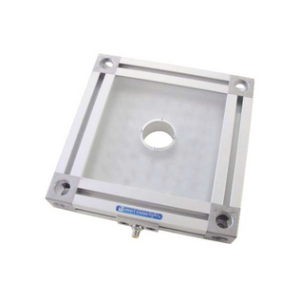

The ODRL200 Large Ring Light Series is designed to produce a homogeneous, uniform light pattern for larger applications and longer working distances. This light operates in OverDrive™ strobe mode. The ODRL200 runs on an industry-standard 24VDC. The 1-10VDC analog control line gives the user total control over intensity. Proper heat dissipation is achieved using the side extrusion. The 45 mm extrusion makes mounting the light easy when using drop-in T-nuts. The 5-pin M12 connector makes wiring to the light simple.

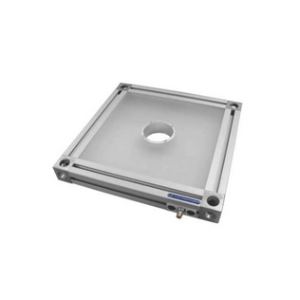

The RL300 Large Ring Light Series is designed to produce a homogeneous, uniform light pattern for larger applications and longer working distances. The RL300 runs on an industry-standard 24VDC. The 1-10VDC analog control line gives the user total control over intensity. Proper heat dissipation is achieved using the side extrusion. The 45 mm extrusion makes mounting the light easy when using drop-in T-nuts. The 5-pin M12 connector makes wiring to the light simple.

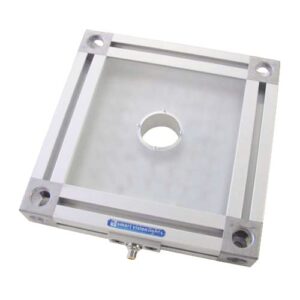

The RL200 Large Ring Light Series is designed to produce a homogeneous, uniform light pattern for larger applications and longer working distances. The RL200 runs on an industry-standard 24VDC. The 1-10VDC analog control line gives the user total control over intensity. Proper heat dissipation is achieved using the side extrusion. The 45 mm extrusion makes mounting the light easy when using drop-in T-nuts. The 5-pin M12 connector makes wiring to the light simple.

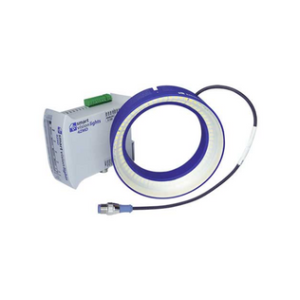

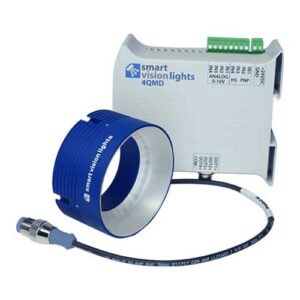

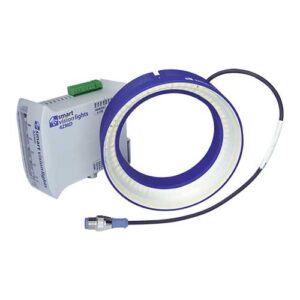

The compact and powerful RM140-4Z Mini Ring Light is a low-angle ring light that works best for dark field ring applications. The light can also be used for radial illumination. The RM140-4Z series features an aluminum housing and is IP65 rated. The RM140-4Z has four zones, making it a quadrant light in which each individual zone can be controlled independently of each other. The 4ZMD-250 is an external driver that permits control of up to four separate light zones either independently or simultaneously, in any combination. The 4ZMD has independent intensity controls and built-in Multi-Drive™, allowing for a range to be set from 10%-100% for continuous operations or OverDrive™ strobe mode. The RM140-4Z KIT includes a RM140-4Z mini ring light and a 4ZMD-250 external driver.

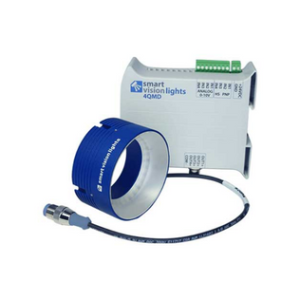

The compact and powerful RM75-4Z Mini Ring Light is a low-angle ring light that works best for dark field ring applications. The light can also be used for radial illumination. The RM75-4Z has four zones, making it a quadrant light that can have each individual zone controlled independently of one another. The 4ZMD-250 is an external driver that permits control of up to four separate light zones either independently or simultaneously, in any combination. The 4ZMD has independent intensity controls and built-in Multi-Drive™, allowing a range to be set from 10%-100% for continuous operation or OverDrive™ strobe mode. The RM75-4Z KIT includes a RM75-4Z mini ring light and a 4ZMD-250 external driver.

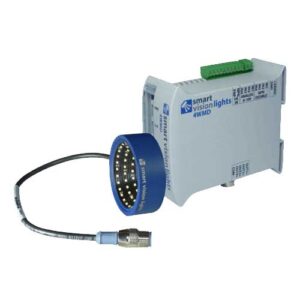

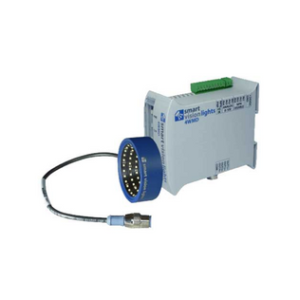

The RMF60 Mini Ring Light Series features three LED zones that can be controlled independently. The RMF60 is designed for dark field applications and produces a highly focused, homogeneous light pattern. The 4WMD is a four-channel external driver developed for multi-wavelength lights. The 4WMD permits up to four individual wavelengths to be controlled independently of each other. This external driver includes Multi-Drive™, which allows a single channel to drive LEDs in continuous operation or OverDrive™ strobe mode separate from the other channels. The RMF60-KIT comes with an RMF60 ring light and a 4WMD-100 external driver.
The RMX140 Mini Ring Light Series is specifically engineered for radial and bright field applications. There are multiple lens options available, making this an extremely versatile illumination option. The standard 40° and optional 80° wide lenses are designed to work at a closer working distance, while the long-distance narrow lenses allow the light to work at a longer working distance. The light offers over-current protection in OverDrive™ strobe mode and PNP and NPN trigger signal input.

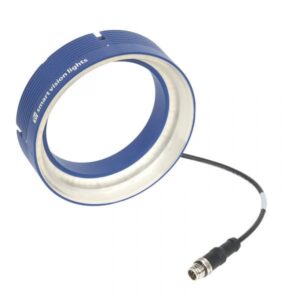

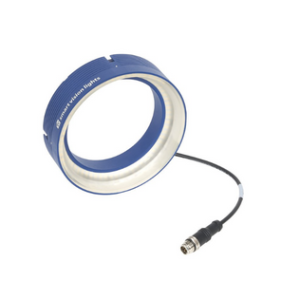

The compact and powerful RM140 Mini Ring Light is a low-angle ring light that works for radial and dark field ring applications. The RM140 series features a sealed, IP65-rated aluminum housing and includes Smart Vision Lights’ built-in Multi-Drive™ constant current driver, which allows the light to operate continuous operation or in OverDrive™ strobe mode. The industry-standard 5-pin M12 connector makes for simple wiring.

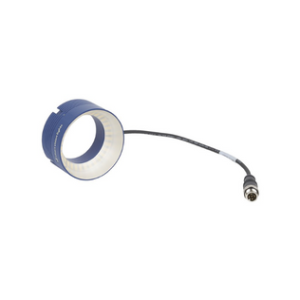

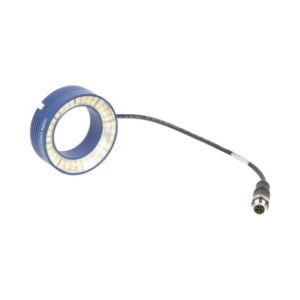

The RM75 Series of mini ring lights is compact, yet produces a homogeneous, uniform light pattern. The RM75 features an integrated Multi-Drive™ constant current driver that operates in continuous operation or OverDrive™ strobe mode depending on wiring configuration. The light also offers overcurrent protection and PNP and NPN trigger signal input. The industry-standard 5-pin M12 connector makes for simple wiring.

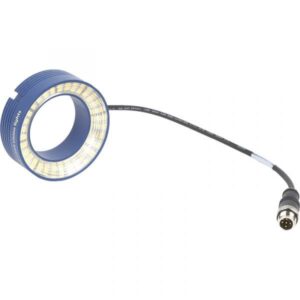

Offering an ideal working distance of 100-500 mm, the RMX75 Mini Ring Light Series is specifically engineered for radial and bright field applications. The light’s silicone lens provides an extra-tight seal and IP65 rating. The RMX75 features an integrated Multi-Drive™ constant current driver that operates in continuous operation or OverDrive™ strobe mode depending on the wiring method. The industry-standard 5-pin M12 connector makes for simple wiring.

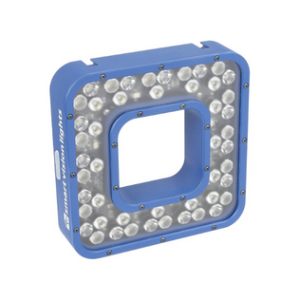

The RTF200, a SmartVisionLink™-enabled light, features three independently adjustable beam angle lighting channels. When used with the BTM-1000 Bluetooth accessory and the SmartVisionLink™ app, lighting channels can be set to produce unique beam-angle combinations – optimizable for many different applications over a wide range of working distances and field of view requirements.

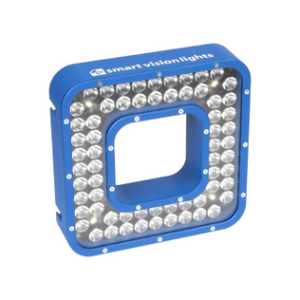

The RHI200-DO is an OverDriveTM only light source meant to provide external illumination for logistics. The RHI200-DO is a high intensity ring light that can be used with long working distances and features optional mounting brackets for most major machine vision cameras.
Get more light with less power with exceptional energy management
Our specially designed onboard charging capacitors ensure powerful bursts of energy with a low consistent electrical draw.
The Lightgistics Series: Brighter. Faster. Better.
The RHI200-DO is part of the Lightgistics Series – machine vision lights made for the logistics industry.

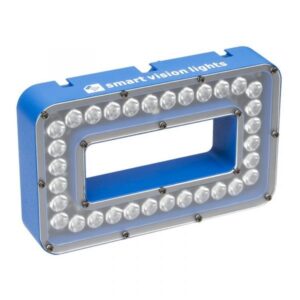

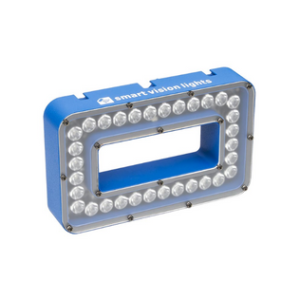

The JWL225-DO is an OverDriveTM only light source meant to provide external illumination for logistics. The JWL225-DO is compatible with most common major machine vision cameras and can be directly connected and controlled through a camera’s trigger output.
Get more light with less power with exceptional energy management
Our specially designed onboard charging capacitors ensure powerful bursts of energy with a low consistent electrical draw.
The Lightgistics Series: Brighter. Faster. Better.
The JWL225-DO is part of the Lightgistics Series – machine vision lights made for the logistics industry.

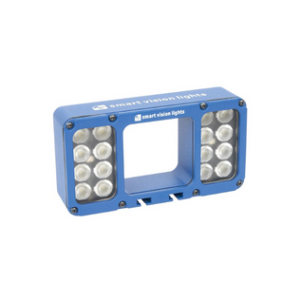

The JWL150-DO is an OverDriveTM-only light source meant to provide external illumination for logistics. This light can be mounted to camera housings through optional mounting plates. The JWL150-DO is compatible with most common major machine vision cameras and can be directly connected and controlled through a camera’s trigger output.
Get more light with less power with exceptional energy management
Our specially designed onboard charging capacitors ensure powerful bursts of energy with a low consistent electrical draw.
The Lightgistics Series: Brighter. Faster. Better.
The JWL150-DO is part of the Lightgistics Series – machine vision lights made for the logistics industry.

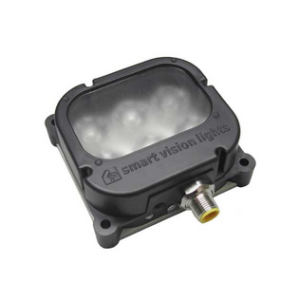

The ODSB75 Brick Light features a smart driver with OverDrive™ strobe mode. The light’s diffused lens makes it a viable option for silhouetting objects. The manual potentiometer control allows the intensity to be adjusted from 10%-100%. A user can also adjust the intensity using the 1-10VDC remote analog signal. The ODSB75 has the ability to produce up to 5000 strobes per second at a maximum strobe length of 125 mS when at a 10% maximum duty cycle. Heat is dissipated through the aluminum backplate, allowing the ODSB75 to be run at a high current and great intensity.

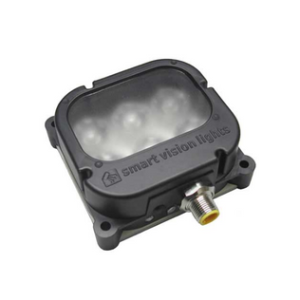

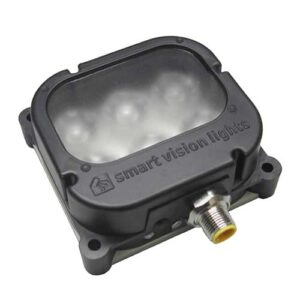

The ODS75 Brick Light Series features a smart driver with OverDrive™ strobe mode. The high-intensity LEDs provide an intense but diffused light pattern at a working distance of up to 4000 mm. This series of lights offers a manual potentiometer intensity control allowing the intensity to be adjusted from 10%-100%. A user can also adjust the intensity using the 1-10VDC analog signal line. Heat is dissipated through the aluminum back plate, which allows the ODS75 Series to be run at a higher current and hence greater intensity.

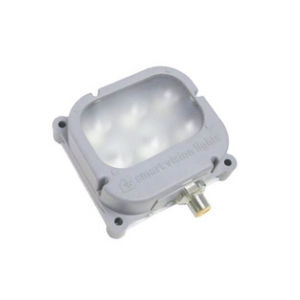

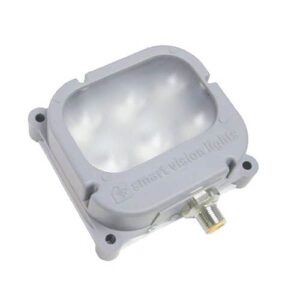

The SC75 is the basic spot light version of the S75 Brick Light. It features a built-in smart driver. NPN or PNP trigger signal inputs can be used to control the on/off input of the light. A 75 mm active light area provides an intense and diffuse light pattern at any given working distance.

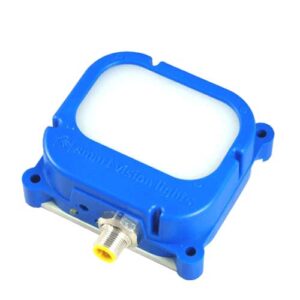

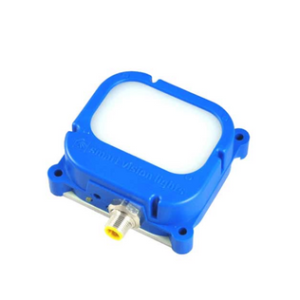

The SB75 Brick Light features a built-in smart driver and a diffused lens, making it a viable option for silhouetting objects. The manual potentiometer control allows the intensity to be adjusted from 10%-100%. A user can also adjust the intensity with the 1-10VDC analog signal line. Heat is dissipated through the aluminum back plate, allowing the SB75 to be run at a higher current and a greater intensity.

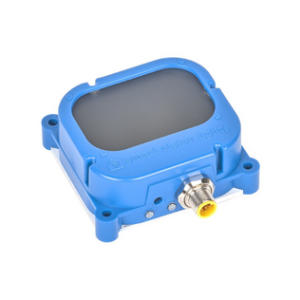

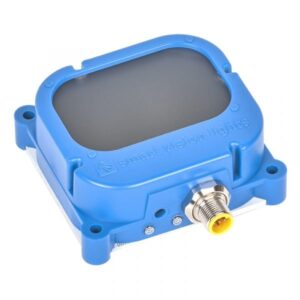

The S75 Brick Light Series is a spot light that features a built-in smart driver. NPN or PNP trigger signal inputs can be used to control the on/off input of the light. The intensity of the light can be controlled via 1-10VDC analog signal line or by adjusting the built-in manual potentiometer. Heat is dissipated through the aluminum back plate, which allows the S75 Brick Light Series to be run at a higher intensity current.

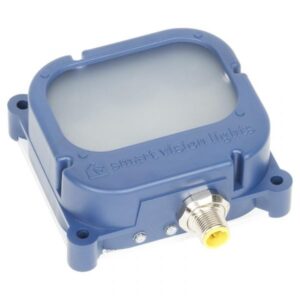

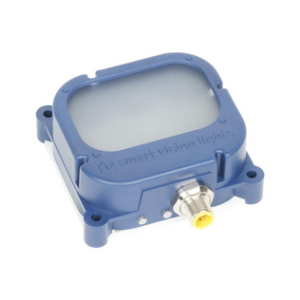

The S75G2 spot light features an integrated Multi-Drive™ driver that can produce up to 300,000 lux. NPN or PNP triggers can be used to control the light for either OverDrive™ or continuous operation. Control light intensity via 1 – 10 VDC analog intensity line or remotely using SmartVisionLink™ .

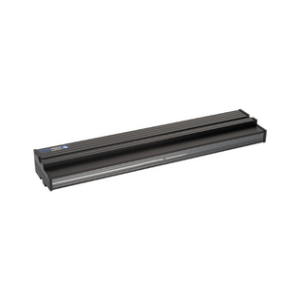

The LCHPX is a low-cost, high-powered line scan light capable of over 800,000 lux. Fan-free passive cooling means less maintenance and fewer issues. Multiple lens configurations optimize illumination for your working distance. The LCHPX is fully enclosed and can be mounted using standard T-slot mounting hardware.
High power, low cost, with just the features you need.
Lens Position
Use the table below to determine the best lens position for your application.
| Lens Position | Working Distance (mm) | Beam Width (mm) | Illuminance (Lux) Values |
|---|---|---|---|
| 1 | 35 | 2.5 | 805,000 |
| 2 | 50 | 3 | 644,000 |
| 3 | 100 | 4.5 | 290,000 |
| 4 | 100 | 8 | 274,000 |
| Illumination measurement taken on white light, 5700 K | |||

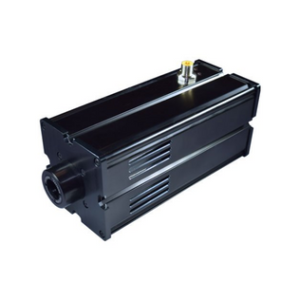

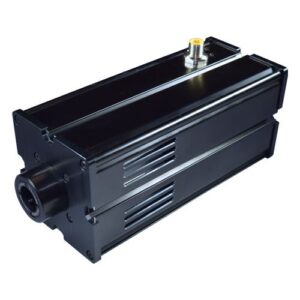

The SXP80 Series is among the highest intensity LED based projectors available in the market. With the ability to produce a thin and well-defined light pattern, the SXP80 performs with intensities comparable to that of laser projectors but without the speckle and can be used both far-field and near-field applications. The projector features Multi-Drive™ along with Smart Vision Lights newest high-speed, high-output driver technology and forced-air cooling. This combination provides very fast high energy strobe capabilities as well as the highest intensity continuous operation available. Multiple interchangeable pattern styles are available, along with optional custom patterns.

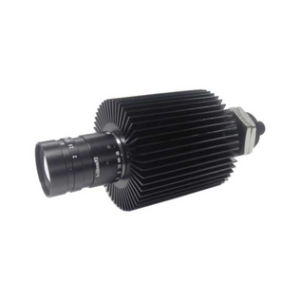

The ODSXP30 Series Projector Light offers a homogeneous light pattern. This light is designed for Overdrive™ strobe mode only and offers NPN or PNP trigger signal input. The 9 mm2 die emits five times the intensity of a constant current SXP30. The housing is constructed of finned 6061-T6 aluminum and designed to dissipate as much heat as possible, therefore allowing the LED to be run at a much higher current than the standard 1 mm2 die LEDs. Multiple interchangeable pattern styles are available along with optional custom patterns.
The SXP30 Series Projector Light offers a homogeneous light pattern. The 9 mm2 die emits nine times the intensity of a standard high-output LED. The housing is constructed of finned 6061-T6 aluminum and designed to dissipate as much heat as possible, therefore allowing the LED to be run at a much higher current than the standard 1 mm2 die LEDs. Multiple interchangeable pattern styles are available along with optional custom patterns. The SXP30 Series is able to project a thinner and more defined pattern of light compared to laser projectors, making the SXP30 a more accurate light.

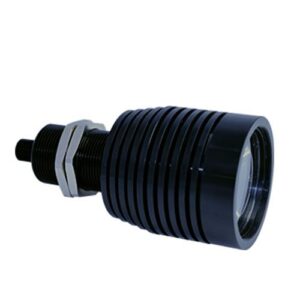

The ODSX30 (N4) Series of Prox Lights feature a single high current LED enclosed in a 30 mm Barrel Style Housing. This light is designed for Overdrive™ strobe mode only. The ODSX30 (N4) Series feature an NPN and PNP strobe signal with a 1-10VDC analog intensity control signal for added versatility. The ODSX30 (N4) Series has multiple mounting options allowing for ease of install and comes with two mounting nuts. The narrow, 4-degree lens allows for a long, tightly focused beam of light.

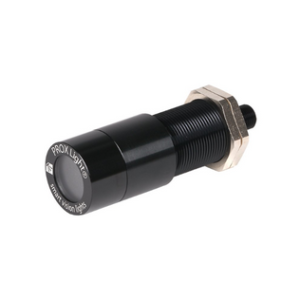

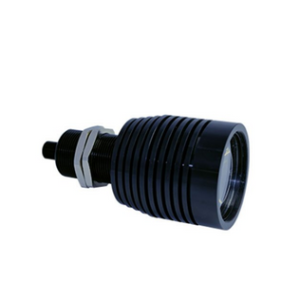

The SX30 (N4) Series of Prox Lights feature a single high current LED enclosed in a 30mm Barrel Style Housing. The SX30 (N4) Series feature an NPN and PNP strobe signal with a 1-10VDC analog intensity control signal for added versatility. The SX30 (N4) Series has multiple mounting options allowing for ease of install and comes with two mounting nuts. The narrow, 4 degree lens allows for a long, tightly focused beam of light.

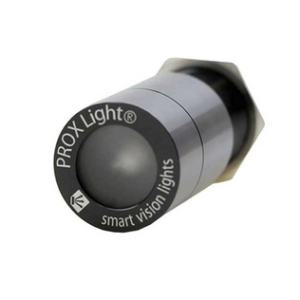

The ODSX30 Prox Light Series operates in OverDrive™ strobe mode. The housings are industry-standard threaded-barrel M30 x 1.5 style used for proximity and photoelectric sensors. The Prox Light Series includes an integrated built-in driver – no external driver needed. The ODSX30 Series feature an NPN and PNP trigger input signal with a 1-10VDC analog signal line for added versatility. The ODSX30 Prox Light has multiple mounting options allowing for ease of install and comes with two mounting nuts.

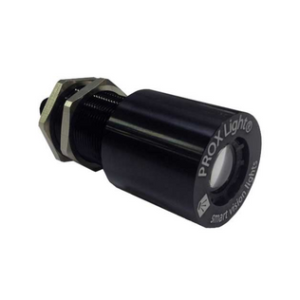

The ODSXA30 Prox Light Series spot lights featuring an adjustable-length lens, allowing users to select the correct spot size needed for the specific application without having to adjust the position of the whole light. This light operates in OverDrive™ strobe mode. Equipped with convenient mounting options, the ODSXA30 also offers a completely homogeneous light pattern at any working distance for a defined and even projected spot. The ODSXA30 Prox Light includes an NPN and PNP trigger signal input with a 1-10VDC analog signal line for added versatility. The ODSXA30 Prox Light has multiple mounting options allowing for ease of install and comes with two mounting nuts.
The SXA30 Prox Light Series spot lights featuring an adjustable-length lens, allowing users to select the correct spot size needed for the specific application without having to adjust the position of the whole light. Equipped with convenient mounting options, the SXA30 also offers a completely homogeneous light pattern at any working distance for a defined and even projected spot. The SXA30 Prox Light includes an NPN and PNP trigger signal input with a 1-10VDC analog signal line for added versatility. The SXA30 Prox Light has multiple mounting options allowing for ease of install and comes with two mounting nuts.

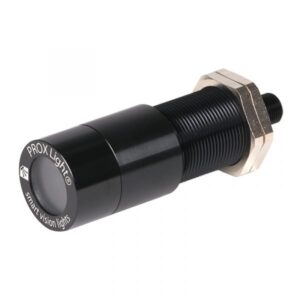

The SX30 Prox Light Series’ housings are industry-standard threaded-barrel M30 x 1.5 style used for proximity and photoelectric sensors. The Prox Light Series includes an integrated built-in driver – no external driver needed. The SX30 Series features an NPN and PNP trigger signal input with a 1-10VDC analog signal line for added versatility. The SX30 Prox Light has multiple mounting options allowing for ease of install and comes with two mounting nuts.

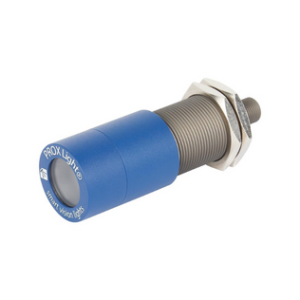

The SX30G2 spot light features an integrated Multi-Drive™ driver that can produce up to 300,000 lux. NPN or PNP triggers can be used to trigger the light for either OverDrive™ or continuous operation. Control light intensity via 1 – 10 VDC analog intensity line or remotely using SmartVisionLink™ .

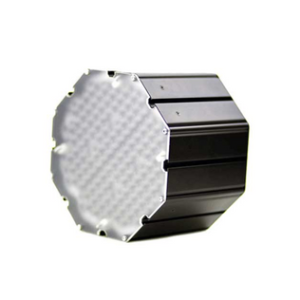

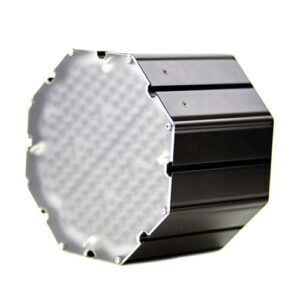

The XR256 Series High-Speed Strobe Light is a high speed, high power, pulse-initiated or pulse following strobe with a maximum output of 5000 strobes per second and a pulsed energy rating of 2000 W. The XR256 offers eight manually controlled settings between a 20 μs to 1000 μs strobe pulse duration in pulse-initiated mode and features a preprogrammed 2% duty cycle. The XR256 Series also features SafeStrobe™ technology which protects LEDs from overheating and premature degradation.

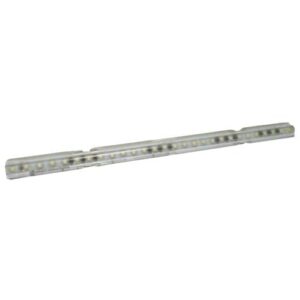

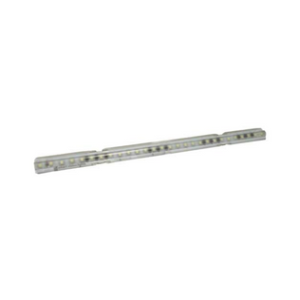

The TSLOT Series of lights are an extrusion adaptive LED light illuminator with a homogeneous, uniform light pattern that offers considerable energy savings over fluorescent lighting options. The TSLOT Series of lights are intended for general lighting applications and should not be used for vision applications with cameras. Mounting is easy in that the TSLOT unit slides into the extrusion with no need for extra mounting accessories. The TSLOT light bar is compatible with most popular brands of .32 inch, 8 mm, and 10 mm aluminum extrusion, including extrusion from 80/20, Bosch, Item, and more. With the ability to direct connect up to 6 TSLOTs together, lengths of 300 mm to 1800 mm are achievable in 300 mm increments.

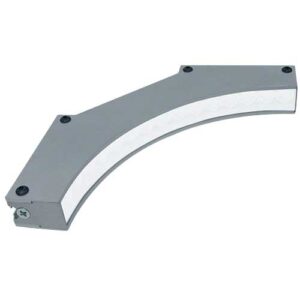

The DFLB-460 Dark Field Linear Light provides a round 90° light illumination, allowing the light to “wrap” around a curved surface. Daisy-chain up to 4 lights together to cover an area up to 360°. Use NPN or PNP trigger signal to control the light’s pulse. The DFLB-460 features a factory-installed 2447 diffuser backlight lens and is a viable option for silhouetting objects. Control intensity via a 110V analog signal line.

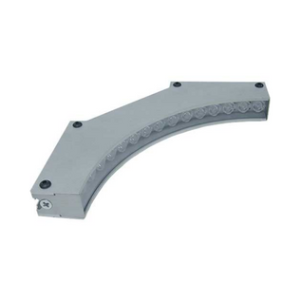

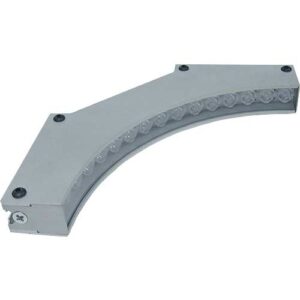

The DFL-460 Dark Field Linear Light provides a round 90° light illumination, allowing the light to “wrap” around a curved surface. Daisy-chain up to 4 lights together to cover an area up to 360°. Use NPN or PNP trigger signal to control the light’s pulse. Control intensity via a 110V analog signal line.

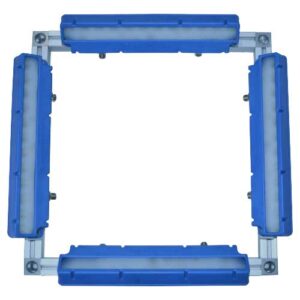

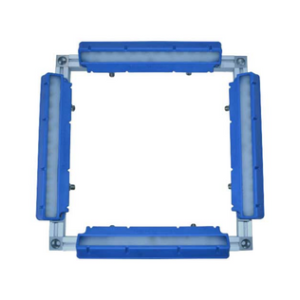

The DFL-12 is an adjustable Dark Field Light and comes with four L300s, which allows for easy mounting using the extrusion frame. Quickly rotate any light to provide the optimal lighting pattern for a dark field application. The DFL-12 features a 360° illumination field. Each side of the DFL-12 is 300 mm in length.
The DFL-24 is an adjustable Dark Field Light and comes with eight L300s, which allows for easy mounting using the extrusion frame. Quickly rotate any light to provide the optimal lighting pattern for a dark field application. The DFL-24 features a 360° illumination field. Each side of the DFL-12 is 600 mm in length.

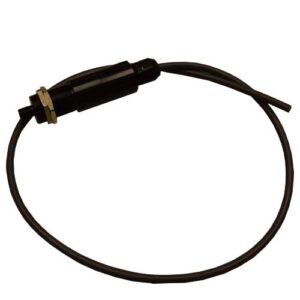

ODSXF30 Prox Light Series of spot lights are designed with flexibility and focusability in mind. The special fiber adapter allows the projected light to be bent around objects while still containing its intensity and tight focus pattern. This light operates in OverDrive™ strobe mode. The ODSXF30 Prox Light features an NPN and PNP trigger signal input with a 1-10VDC analog signal line for added versatility. The ODSXF30 Prox Light has multiple mounting options allowing for ease of install and comes with two mounting nuts.

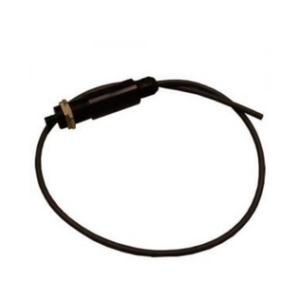

SXF30 Prox Light Series of spot lights are designed with flexibility and focusability in mind. The special fiber adapter allows the projected light to be bent around objects while still containing its intensity and tight focus pattern. The SXF30 Prox Light features an NPN and PNP trigger signal input with a 1-10VDC analog signal line for added versatility. The SXF30 Prox Light has multiple mounting options allowing for ease of install and comes with two mounting nuts.

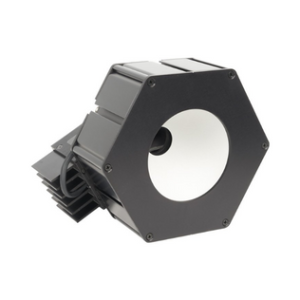

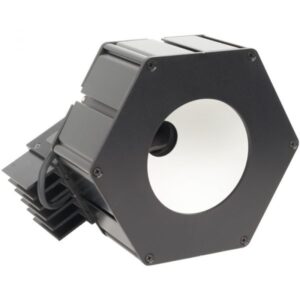

The DADL75 Series was designed as a multi-color inspection light with built-in individual on-axis and off-axis intensity control. Its exceptional uniformity and an intense output design make the DADL75 Series a perfect lighting solution for applications that require variable intensities with multiple color options or any product inspection process involving a highly reflective finish. Easily tune colors using the DADL Controller (sold separately).

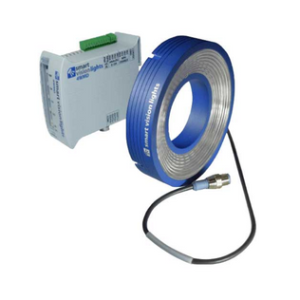

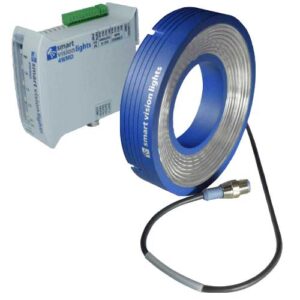

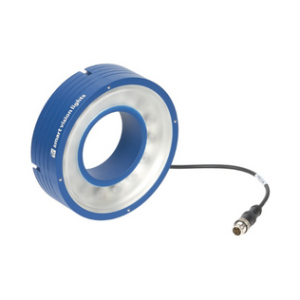

The compact and powerful RMX140-RGBW Mini Ring Light is a small to mid-range working distance ring light. The RMX140-RGBW series features an aluminum housing and is IP50 rated. Each wavelength can be tuned individual of the other wavelengths, allowing for the light to output just about any color imaginable. The RMX140-RGBW (KIT) includes a RMX140 Ring Light and a 4WMD-100 external driver.

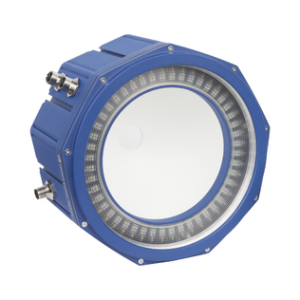

The patented DoAll is an all-in-one solution unprecedented in its flexibility for machine vision lighting applications and automatic inspection. The DoAll combines 6 machine vision lights into one easy-to- use multifunctional product; with each DoAll you get a dome light, a low angle dark field ring light, a mid angle dark field ring light, an RGBW ring light, a four quadrant ring light, and a NIR ring light.
Use the lights in conjunction with each other to create a variety of multimodal illumination effects. For example, you can combine the dome light and a dark field light to increase contrast of surface features, or you can combine visible light with NIR for multispectral applications.
From large scale automotive assembly to smaller electronic assembly and everything in between, the DoAll excels at performing multiple inspections where the ideal lighting varies by each inspection type. With its small footprint and integrated camera mount, the DoAll is the perfect fit for the compact spaces of robotic workcells.
Manage multiple inspections with one light. The DoAll combines 6 machine vision lights into one easy-to-use multifunctional product, offering almost infinite lighting combinations. For any surface, with any finish, at any angle, the DoAll provides the right light for your automated inspection.

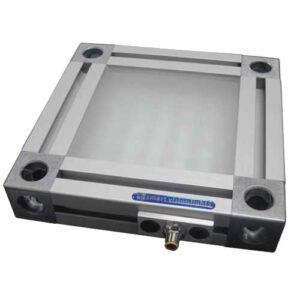

The ODAL Area Light Series of spot lights is designed for OverDrive™ strobing and produces maximum light output. NPN or PNP trigger signals input can be used to control the pulse of the light. The intensity of the light can be controlled via 1-10VDC analog signal line. Proper heat dissipation is achieved using the side extrusion and backplate. The 45 mm extrusion makes mounting the light easy when using drop-in T-nuts. The AL Area Light has a built-in driver. No external driver is required. Standard sizes are: 150×150, 300×150, 300×300 – additional sizes are available upon request.

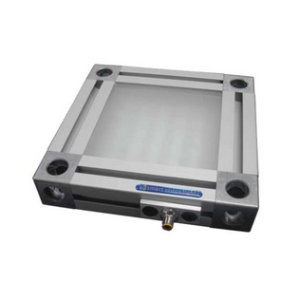

The AL Area Light Series of spot lights is designed for maximizing light output. The AL series works in continuous operation mode or can operate with either an NPN or PNP trigger signal when using on/off input mode. The AL Area Light runs on an industry-standard 24VDC. The 1-10VDC analog control line gives the user total control over intensity. Proper heat dissipation is achieved using the side extrusion and back plate. The 45 mm extrusion makes mounting the light easy when using drop-in T-nuts. The AL Area Light has a built-in driver. No external driver is required.

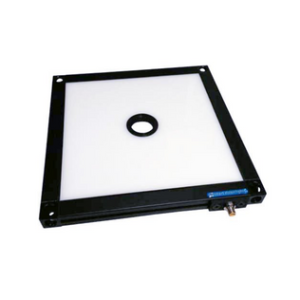

In the LLPX-H Light Panel Series, an optically clear internal light dispersion grid and a matte-white-finished backing plate allow more light to be reflected up and out through the diffusion acrylic. The LLPX-H features Multi-Drive™, which allows the user to operate the light in continuous operation or OverDrive™ strobe mode, depending on wiring method. The industry-standard 5-pin M12 connector makes for simple wiring. The 1-10VDC analog signal line gives the user total control over intensity in continuous operation. Removing the signal puts the light into OverDrive™ strobe mode. Custom placement, sizing, and number of holes available upon request.

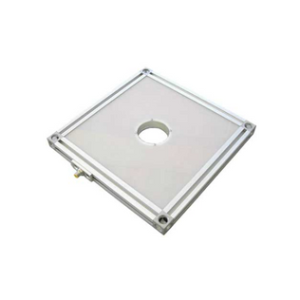

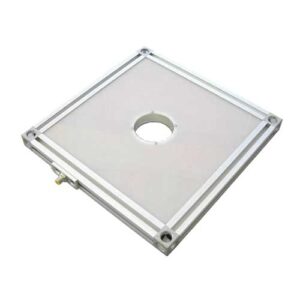

The DLP Diffused Panel Light Series is designed for front lighting. The innovative and highly versatile lights can be customized for different sizes and wavelength options. The series provides intense and highly diffused area lighting. The narrow 30 mm depth allows for mounting in tight locations. The 190 x 190 mm lights have a 53 mm camera viewing hole in the center. Lights measuring 300 x 300 mm and larger have a 78 mm viewing hole.

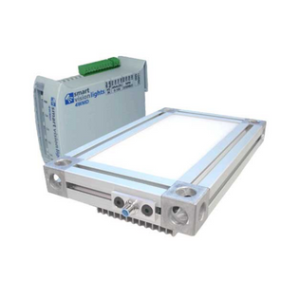

The MOBL (RGBW) Backlight Series is designed for maximum output and includes four wavelengths. Each wavelength is independent and can be tuned individually, allowing for the light to output just about any color imaginable. Proper heat dissipation is achieved using the side extrusion. The 45 mm extrusion makes mounting the light easy when using drop-in T-nuts. The MOBL (RGBW) Backlight Kit includes an MOBL RGBW backlight, external driver and reverse-key jumper cable. This product comes in the following sizes: 150 mm x 150 mm, 300 mm x 150 mm, and 300 mm x 300 mm.

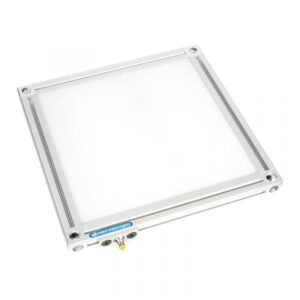

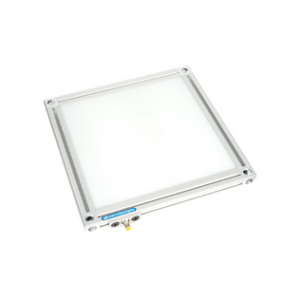

The SOBL Backlight Series is an innovative and highly versatile light. SOBL backlights are area lit for a more intense and highly diffuse lighting output. Lights have built-in drivers, so no external driver is needed. At just 30 mm in-depth, the lights can be easily mounted in tight locations. Active area dimensions (in millimeters) include but are not limited to 150 x 100, 150 x 150, 200 x 150, 200 x 200, 300 x 150, 300 x 200, 300 x 300, and 450 x 450. Custom sizes available upon request.

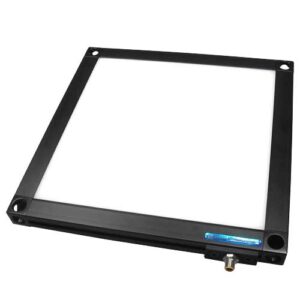

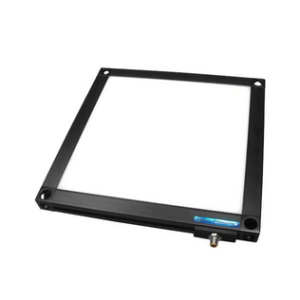

LLPX Series backlights offer a homogeneous light pattern with the same familiar ease of mounting found on other Smart Vision Lights™ backlights. With the optically clear internal light dispersion grid and the matte-white-finished backing plate, more light is reflected up and out through the diffusion acrylic. The LLPX Series features Multi-Drive™, which allows the light to operate in continuous operation or OverDrive™ strobe mode, depending on wiring.

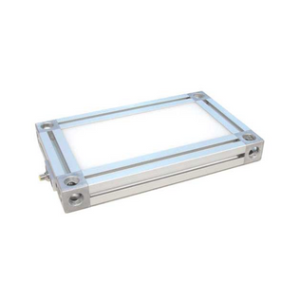

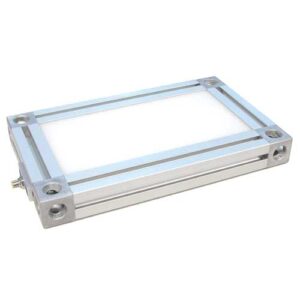

The ODMOBL Backlight Series is designed for OverDrive™ strobing and produces maximum light output. NPN or PNP trigger signals can be used to control the pulse of the light. The intensity of the light can be controlled via 1-10VDC analog signal line. Proper heat dissipation is achieved using the side extrusion installed on the bottom of the light. The 45 mm extrusion makes mounting the light easy when using drop-in T-nuts. The ODMOBL Backlight has a built-in driver. No external driver is required. This product comes in the following sizes: 150 mm x 150 mm, 300 mm x 150 mm, and 300 mm x 300 mm.

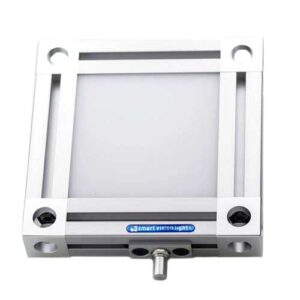

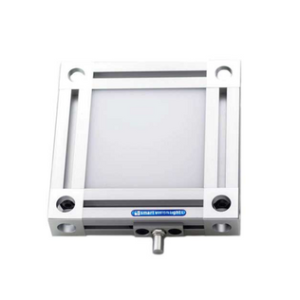

The MOBL Backlight Series is designed for maximum output. The series works in continuous operation mode or can operate with either an NPN or PNP trigger signal when using on/off input mode. The MOBL Backlight runs on an industry-standard 24VDC. The 1-10VDC analog control line gives the user total control over intensity. Proper heat dissipation is achieved using the side extrusion and the heat sink installed on the bottom of the light. The 45 mm extrusion makes mounting the light easy when using drop-in T-nuts. The MOBL Backlight has a built-in driver. No external driver is required. This product comes in the following sizes: 150 mm x 150 mm, 300 mm x 150 mm, and 300 mm x 300 mm.

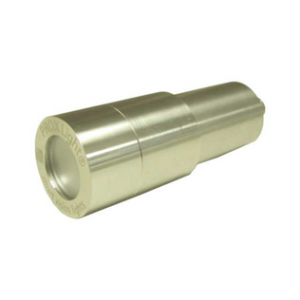

The ODSXW30 Prox Light Series of spot lights features a stainless-steel enclosure for applications in washdown environments. This light operates in OverDrive™ strobe mode. The ODSXW30 features an integrated constant current driver built into the light and runs in continuous operation mode. NPN or PNP trigger signals can be used to control the on/off input of the light. The intensity of the light can be controlled via 1-10VDC analog signal line or the manual potentiometer.
The SXW30 Prox Lights Series of spot lights features a stainless-steel enclosure for applications in washdown environments. The SXW30 features an integrated constant current driver built into the light and runs in continuous operation mode. NPN or PNP trigger signals can be used to control the on/off input of the light. The intensity of the light can be controlled via 1-10VDC analog signal line or the manual potentiometer.

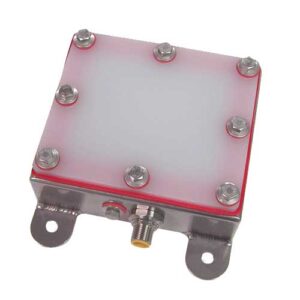

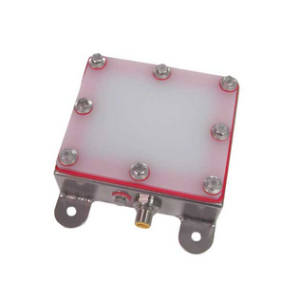

The SWB75 Brick Light Series of spot lights features a stainless-steel IP68-rated enclosure specially designed for the food industry and washdown environments. The SWB75 features a diffused lens and is a viable option for silhouetting objects. NPN or PNP trigger signal inputs can be used to control the pulse of the light. The intensity of the light can be controlled via 1-10VDC analog signal line or by adjusting the built-in manual potentiometer.

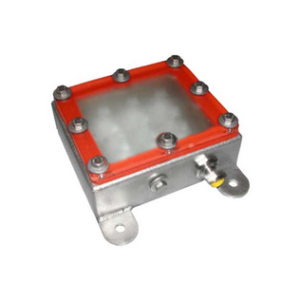

The SW75 Brick Light is a spot light that features a stainless-steel IP68-rated enclosure specially designed for the food industry and washdown environments. NPN or PNP trigger signal inputs can be used to control the pulse of the light. The intensity of the light can be controlled via 1-10VDC analog signal line or by adjusting the built-in manual potentiometer.
The ODSW75 Brick Light Series of spot lights features a 316 stainless-steel IP68-rated enclosure specially designed for the food industry and washdown environments. NPN or PNP trigger signals can be used to control the pulse of the light. The intensity of the light can be controlled via 1-10VDC analog signal line or by adjusting the built-in manual potentiometer.

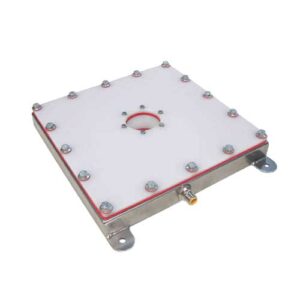

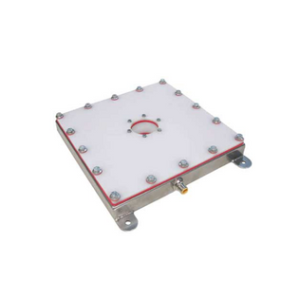

The DLPW Diffused Light Panel Washdown Series is designed for front lighting and harsh environment applications. The innovative and highly versatile lights can be customized for wavelength options. The series provides intense and highly diffused area lighting. Active area measurements include 190 mm x 190 mm, 300 mm x 300 mm, and 600 mm x 600 mm.

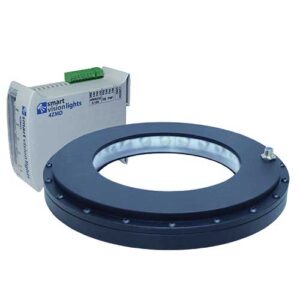

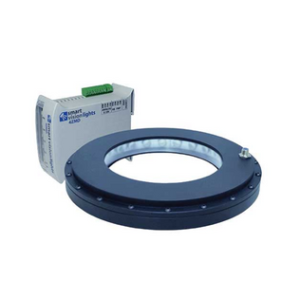

The DFLW-200-4Z Dark Field Washdown Ring Light is IP68 rated and comes in an anodized black aluminum housing. The DFLW-200-4Z has four zones, making it a quadrant light in which each individual zone can be controlled independently of each other. The 4ZMD is an external driver that permits control of up to four separate light zones either independently or simultaneously, in any combination. The 4ZMD has independent intensity controls and built-in Multi-Drive™, allowing a range to be set from 10%-100% for continuous operation or OverDrive™ strobe mode. The DFLW-200-4Z (KIT) includes a DFLW-200-4Z, a 4ZMD-750 external driver and a 5PM12-J2000-KR jumper cable (2000 mm in length).

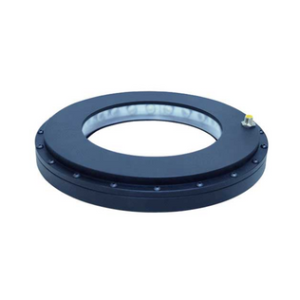

The DFLW-200 Dark Field Washdown Ring Light is IP65 rated and comes in an anodized black aluminum housing. The built-in Multi-Drive™ driver allows the light to work in continuous operation or OverDrive™ strobe mode, depending on the wiring configuration. The industry-standard 5-pin M12 connector makes for simple wiring. The 1-10VDC analog signal line gives the user total control over intensity in continuous operation mode. Grounding the analog signal line put the light into OverDrive™ strobe mode.

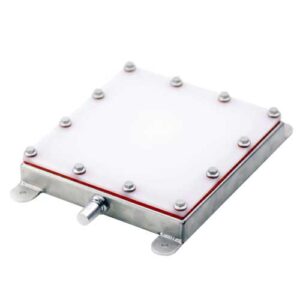

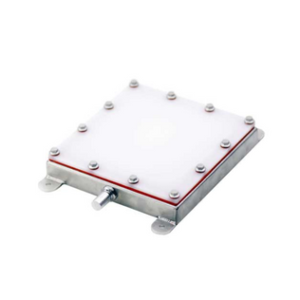

The SOBLW Series features a stainless-steel IP68-rated enclosure with sealed bolts and a waterproof connector for food industry and washdown environments. The lights are highly versatile, with many custom sizes available. The series provides intense and highly diffuse area lighting with a built-in driver, so no external driver is needed. Active area dimensions (mm) include but are not limited to 150 x 150, 190 x 190, 300 x 150, 300 x 300, and 450 x 300.

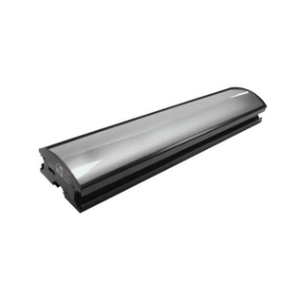

Part of the Direct Connect series linear lights, which offers integrated light-to-light connectors, eliminating the need for cable connectors to string lights together. This light operates in OverDrive™ strobe mode. The ODLHF300 series was designed as a direct LED replacement for standard fluorescent lighting. The ODLHF300 array uses 30 high-intensity LEDs and features a diffuse lens cover designed to disperse the light in the same fashion as a fluorescent light of equivalent length. Use NPN or PNP trigger signal to control the light’s pulse.

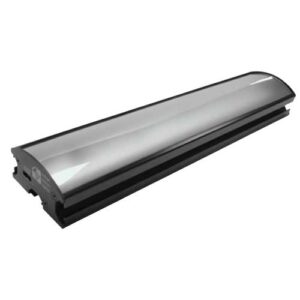

Part of the Direct Connect series linear lights, which offers integrated light-to-light connectors, eliminating the need for cable connectors to string lights together. The LHF300 series was designed as a direct LED replacement for standard fluorescent lighting. The LHF300 array uses 30 high-intensity LEDs and features a diffuse lens cover designed to disperse the light in the same fashion as a fluorescent light of equivalent length. Use NPN or PNP trigger signal to control the light’s pulse. Control intensity via a 110V analog signal line.

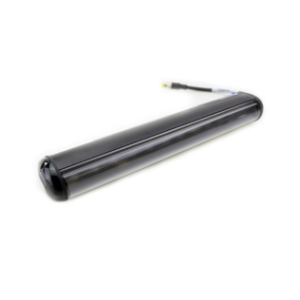

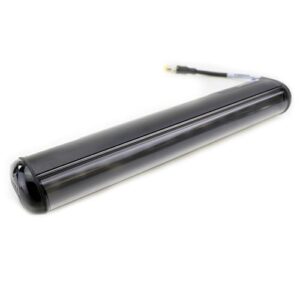

The rugged LE Bar/Linear Light Series offers everything needed in one sleek design with the convenience of T-slot mounting. The Multi-Drive™ driver allows the light to operate in continuous operation or in OverDrive™ strobe mode. The LE series comes in tailored-length solutions in increments of 300 mm, up to 1200 mm.
Part Numbers:
LE300
LE600
LE900
LE1200

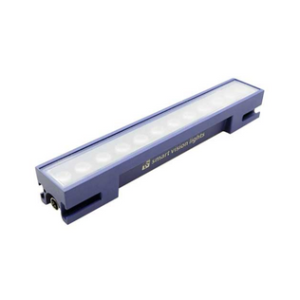

Delivering up to 100,000 lux, the LXE300 includes our advanced Multi-Drive™ driver, allowing users to operate the linear light in continuous operation or OverDrive™ strobe (high-pulse operation) mode. Users can connect up to six LXE300 lights to create ultra-long linear lights at a fraction of the cost of traditional monolithic solutions without any loss in uniformity.
The LXE300 is available in three different connector options:

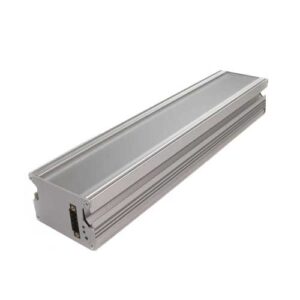

The modular design of the ODLX300 linear light, part of the Direct Connect Linear Light Series, offers integrated light-to-light connectors, eliminating the need for cable connectors to string lights together. The light operates in OverDrive™ strobe-only mode. This innovative design requires a power connection to the first light but eliminates the need for jumper cables to pass power through to the next, enabling tailored-length solutions in increments of 300 mm. Direct connect up to eight ODLX300 together.
The modular design of the ODLX150 linear light, part of the Direct Connect Linear Light Series, offers integrated light-to-light connectors, eliminating the need for cable connectors to string lights together. The light operates in OverDrive™ strobe-only mode. This innovative design requires a power connection to the first light but eliminates the need for jumper cables to pass power through to the next, enabling tailored-length solutions in increments of 150 mm. Direct connect up to sixteen ODLX150 together.
The modular design of the LXB300 linear light, part of the Direct Connect Linear Light Series, offers integrated light-to-light connectors, eliminating the need for cable connectors to string lights together. The LXB300 features a factory-installed 2447 diffuser backlight lens and is a viable option for silhouetting objects. The light operates in continuous operation. This innovative design requires a power connection to the first light but eliminates the need for jumper cables to pass power through to the next, enabling tailored-length solutions in increments of 300 mm. Direct connect up to eight LXB300 together.

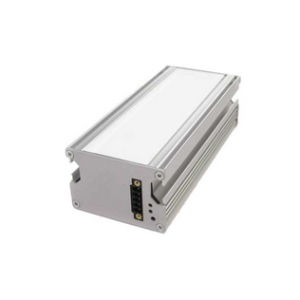

The modular design of the LXB150 linear light, part of the Direct Connect Linear Light Series, offers integrated light-to-light connectors, eliminating the need for cable connectors to string lights together. The LXB150 features a factory-installed 2447 diffuser backlight lens and is a viable option for silhouetting objects. The light operates in continuous operation. This innovative design requires a power connection to the first light but eliminates the need for jumper cables to pass power through to the next, enabling tailored-length solutions in increments of 150 mm. Direct connect up to sixteen LXB150 together.
The modular design of the LX300 linear light, part of the Direct Connect Linear Light Series, offers integrated light-to-light connectors, eliminating the need for cable connectors to string lights together. The light operates in continuous operation. This innovative design requires a power connection to the first light but eliminates the need for jumper cables to pass power through to the next, enabling tailored-length solutions in increments of 300 mm. Direct connect up to eight LX300 together.

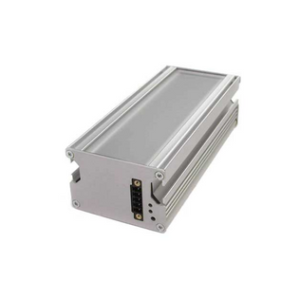

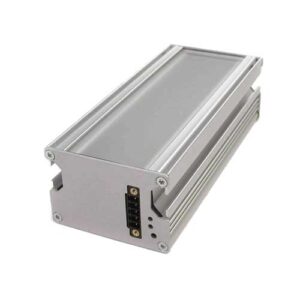

The modular design of the LX150 linear light, part of the Direct Connect Linear Light Series, offers integrated light-to-light connectors, eliminating the need for cable connectors to string lights together. The light operates in continuous operation. This innovative design requires a power connection to the first light but eliminates the need for jumper cables to pass power through to the next, enabling tailored-length solutions in increments of 150 mm. Direct connect up to sixteen LX150 together.

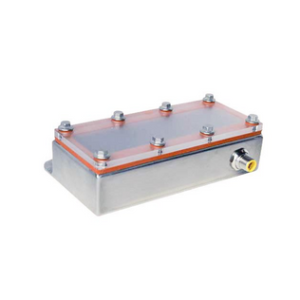

The LWE150 features a stainless-steel enclosure specially designed for the food industry and washdown environments where water and harsh detergents are present. The LWE150 has an integrated Multi-Drive™ constant-current driver that operates continuous operation or in OverDrive™ strobe mode, depending on wiring configuration. NPN or PNP trigger signals can be used to control the pulse of the light.

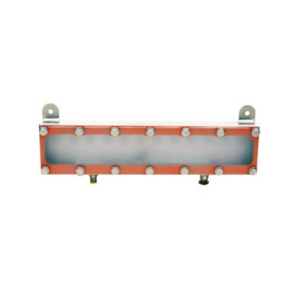

The LWB300 series features a 100% waterproof stainless-steel enclosure specially designed for the food industry and washdown environments where water and harsh detergents are present. The LWB300 features an integrated constant current driver built into the light and runs in continuous operation. NPN or PNP trigger signal input can be used to control the turning on/off input of the light. The intensity of the light can be controlled via a 1-10VDC analog signal line or onboard manual potentiometer. Daisy-chain up to six LWB300 together.
The ODLW300 Series features a 100% waterproof stainless-steel enclosure specially designed for the food industry and washdown environments where water and harsh detergents are present. The integrated OverDrive™ driver allows for a maximum strobe rate of 5000 strobes per second. NPN or PNP trigger signal input can be used to control the pulse of the light. The intensity of the light can be controlled via 1-10VDC analog signal line or the onboard manual potentiometer. Daisy-chain up to six ODLW300 lights together.

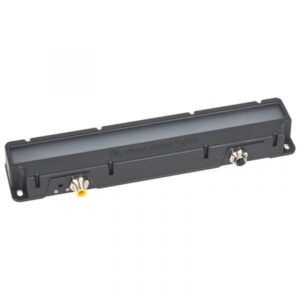

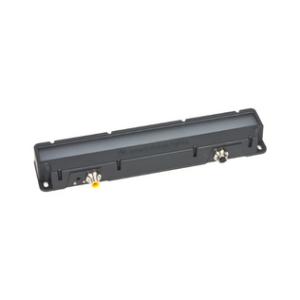

The ODL300 Bar/Linear Light utilizes 12 high-intensity LEDs and features an integrated OverDrive™ strobe driver with a maximum strobe rate of 5000 strobes per second. NPN or PNP trigger signals can be used to control the pulse of the light. The intensity of the light can be controlled via 1-10VDC analog signal line or manual potentiometer. Daisy-chain up to six ODL300 lights together.

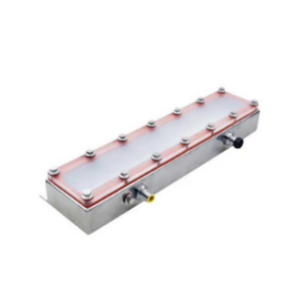

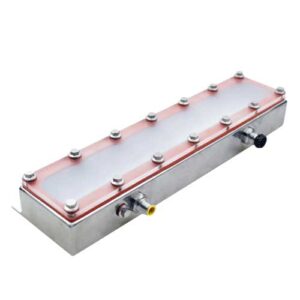

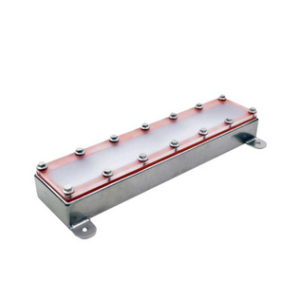

The LW300 series features a 100% waterproof stainless-steel enclosure specially designed for the food industry and washdown environments where water and harsh detergents are present. The LW300 features an integrated constant current driver built into the light and runs in continuous operation mode. NPN or PNP trigger signal inputs can be used to control the on/off input of the light. The intensity of the light can be controlled via 1-10VDC analog signal line or the onboard manual potentiometer. Daisy-chain up to six LW300 lights together.

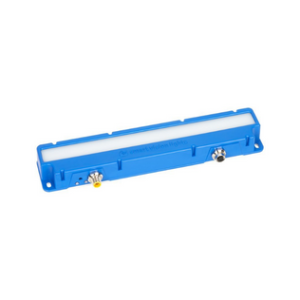

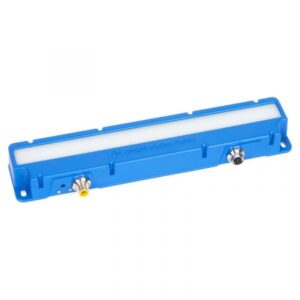

The LB300 array utilizes 12 high-intensity LEDs, features an integrated constant current driver built into the light and operates in continuous operation. The LB300 features a factory-installed 2447 diffuser backlight lens and is a viable option for silhouetting objects. NPN or PNP trigger signals can be used to control the on/off input of the light. The intensity of the light can be controlled via 1-10VDC analog signal line or manual potentiometer. Daisy-chain up to six LB300 lights together.
The LC300 features 12 high-bright LEDs, operates in continuous mode, and includes a built-in constant-current driver. The LC300 is a more cost effective light due to the analog intensity control line not being included and not being capable of daisy-chaining to additional linear lights. NPN or PNP trigger signals can be used to control the on/off input of the light.
The Right Light for Your Application

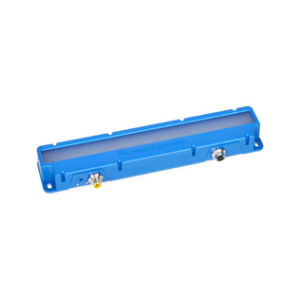

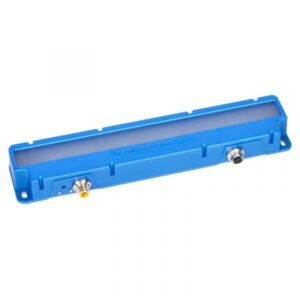

The L300 Bar/Linear Light utilizes 12 high-intensity LEDs and features an integrated constant current driver built into the light. Connect-a-Light Series of Linear Lights uses 24VDC and can operate in continuous mode. NPN or PNP strobe triggers can be used to control the on/off input of the light. Control intensity via a 1-10V analog signal line or manual potentiometer. Daisy-chain up to six L300 lights together.

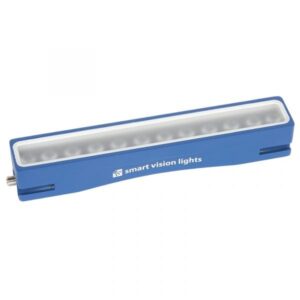

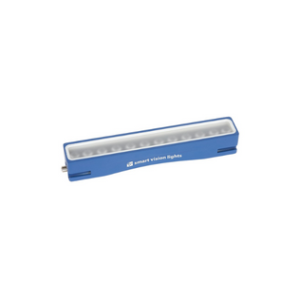

he LZE300, a SmartVisionLink™ enabled linear light, has similar features and functions as the LXE300, with the addition of communication with a SmartVisionLink™ managing device, such as the BTM-1000. When the LZE300 is connected to the BTM-1000, its intensity can be fully controlled, either for the entire light or for each of the three LED zones. Individual zones may also be turned off. The standard LZE300 has a 12 LED configuration.
The LZE300 is available in three different connector options:
The LZE300 also comes with NanoDrive technology, which enables a faster “on” and “off” compared to other technology.

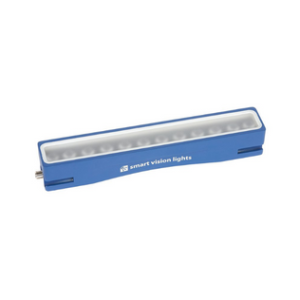

The LCZE300 is a SmartVisionLink™-enabled linear light. With the addition of the BTM-1000 Bluetooth module, the LCZE300 can be wirelessly adjusted for intensity levels. The LCZE300 can be connected in a series of up to six lights, either through direct-connect or daisy-chain, to create a total of 6 independently controllable lighting zones.

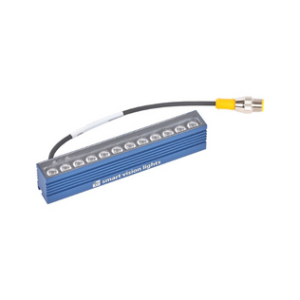

The LM150 miniature linear light features an integrated Multi-DriveTM current driver that can operate in either continuous or OverDriveTM mode depending on the wiring configuration selected by the user. This light also features over-current protection and can be enabled/ strobed with either NPN or PNP inputs.

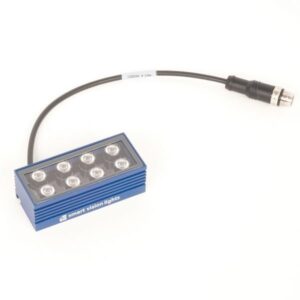

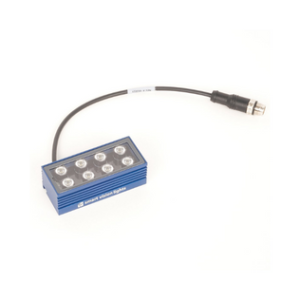

The LM75 compact linear light features an integrated Multi-Drive™ constant-current driver that operates in continuous operation or in OverDrive™ strobe mode depending on the wiring method. The light can be mounted via a rear T-slot channel, also offers over-current protection and PNP and NPN strobe trigger inputs. The LM75 has a 80 mm long housing and features 8 high-current LEDs.

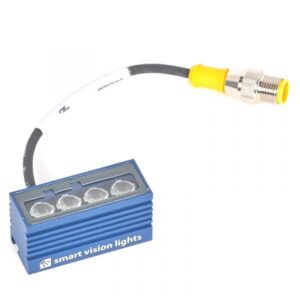

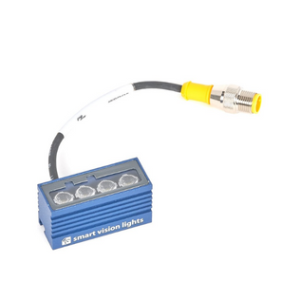

The LM45 compact linear light features an integrated Multi-Drive™ constant-current driver that operates in continuous operation or in OverDrive™ strobe mode depending on the wiring method. The light can be mounted via a rear T-slot channel, also offers over-current protection and PNP and NPN strobe trigger inputs. With housing 51 mm long, the LM45 puts out unprecedented levels of light in one of the industry’s smallest footprints.

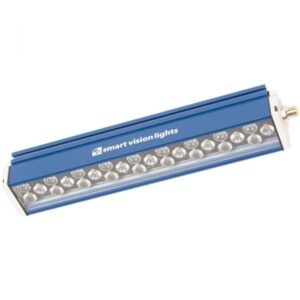

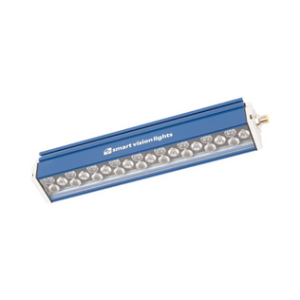

The LTF (Linear Tunable Field Of View) series (patent pending), a SmartVisionLinkTM-enabled light, features three independently adjustable beam angle lighting channels. When used with the BTM-1000 Bluetooth accessory* and the SmartVisionLinkTM app, lighting channels can be set to produce unique beam- angle combinations – optimizable for many different applications over a wide range of working distances and field of view requirements.
LTF Series Highlights

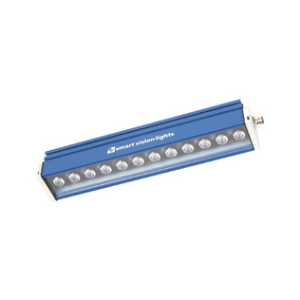

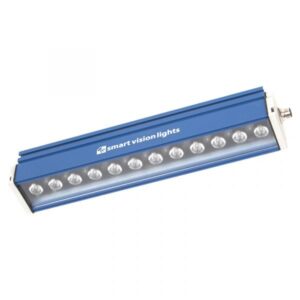

The LSR series is a SmartVisionLink™-enabled linear light that can produce over 340,000 lux and is offered in lengths up to 1200 mm. When used with the BTM-1000 Bluetooth accessory and the SmartVisionLink™ app, the LSR Series can have its intensity remotely adjusted. The LSR Series is easily mounted with the built-in T-slot rail system.

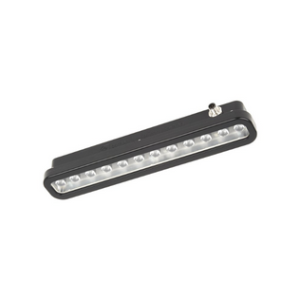

We’re revolutionizing washdown lights with the new LZEW300. The aluminum housing with non-stick coating is FDA-compliant and costs significantly less than stainless steel. Prefer stainless? The LZEW300 is also available in 316 stainless steel.

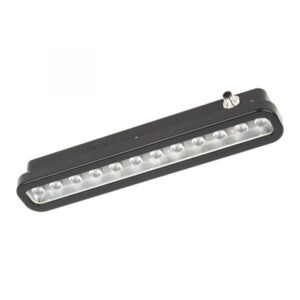

The LZEW300 is a SmartVisionLinkTM-enabled washdown linear light. With the addition of the BTM-1000 Bluetooth module, the LZEW300 can be wirelessly adjusted for intensity levels. Connect the LZEW300 in a series of up to six lights through daisy-chain, to create a total of 18 independently controllable lighting zones.

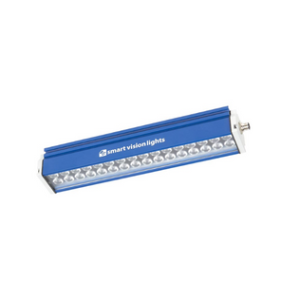

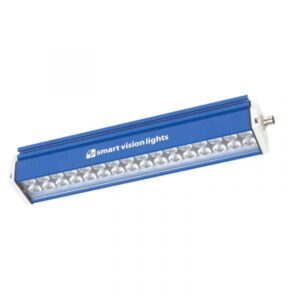

The LHI-DO Series is an OverDriveTM only light source meant to provide external illumination for logistics. This light can be used to create tunnel systems capable of illuminating any package of any size and ensure perfect readability no matter the shape or material. The LHI-DO Series is available in 300- and 600 mm lengths.
Get more light with less power with exceptional energy management
Our specially designed onboard charging capacitors ensure powerful bursts of energy with a low consistent electrical draw.
The Lightgistics Series: Brighter. Faster. Better.
The LHI-DO is part of the Lightgistics Series – machine vision lights made for the logistics industry.

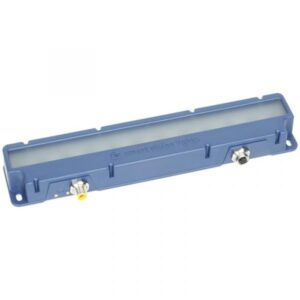

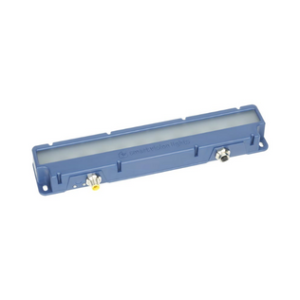

The L300G2 linear light features an integrated Multi-Drive™ driver that can produce up to 390,000 lux. NPN or PNP triggers can control the light for either OverDrive™ or continuous operation. Control light intensity via 1 – 10 VDC analog intensity line or remotely using SmartVisionLink™. Daisy-chain up to six L300G2 lights in series using a standard 5-pin M12 jumper cable.
