Product Catalog
Xenics was established in Belgium in 2000 as a designer and manufacturer of infrared sensors, cores and cameras. As a commercial spin-off from IMEC, Xenics specialises in the development of SWIR InGaAs imaging detectors and cameras. Today, Xenics is Europe’s leading supplier of SWIR imagers steadily growing internationally with sales offices worldwide. The company retains its expertise in SWIR imagers, expanding its portfolio in the LWIR range for various markets.

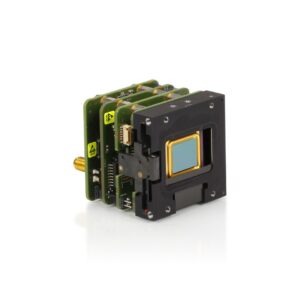

The XTM+ 640 series is based on an uncooled microbolometer detector with a 640 x 480 pixel resolution.
The XTM+ 640 offers frame rates up to 60 Hz and lower detector NETD options ( < 30 mK available upon request).
The modules come with either a CameraLink, GigE Vision or QTE Samtec interface and feature low weight and power.
Benefits & Features
• Compact size
• Easy connectivity via multiple interfaces
• Frame rates up to 60 Hz
• Lower detector NETD options ( < 30 mK available upon request)

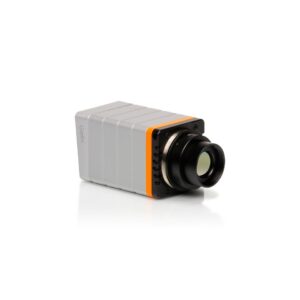

The Gobi+ 640 series is based on an uncooled microbolometer detector with a 640 x 480 pixel resolution.
The Gobi+ 640 offers frame rates up to 60 Hz and lower detector NETD options ( < 30 mK available upon request).
The cameras come with either a CameraLink or GigE Vision interface.
Benefits & Features
• Compact size
• Easy connectivity via multiple interfaces
• Frame rates up to 60 Hz
• Lower detector NETD options ( < 30 mK available upon request)
• Temperature calibrations for thermographic applications

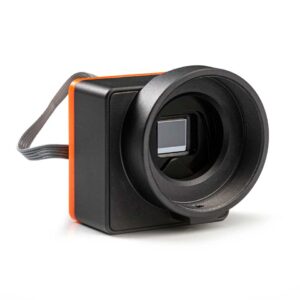

The Dione S 640 CAM series is based on an uncooled 12 μm pitch microbolometer detector with a 640 × 480 resolution and NETD of less than 40 mK (available upon request) and 50 mK.
The camera cores are optimized for low SWaP (Size, Weight and Power). The Dione S 640 CAM is lightweight and small with mechanical shutter. It utilizes Xenics image enhancement for advanced image processing while keeping power consumption low.
All Dione S 640 versions have the same SAMTEC ST5 connector and are GenICam compliant. Dione S 640 CAM is a LWIR uncooled thermal imaging SWAP module with housing supporting M24/M34 lens (optional).
The ultra-compact Dione S 640 CAM series find application in safety and security systems, as well as in industrial thermal imaging systems.
Benefits & Features
• State-of-the-art 640 × 480 microbolometer detector with 12 μm pitch
• Low SWaP (Size, Weight and Power)
• GenICam compliant
• Shuttered and uncooled operation
• Availability of multiple lenses (optional) adds flexibility to integration programs

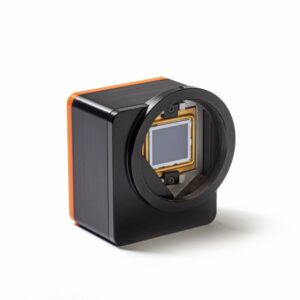

The Dione S 1280 CAM series is based on an uncooled 12 μm pitch microbolometer detector with a 1280 × 1024 resolution and NETD of less than 40 mK (available upon request) and 50 mK.
The camera cores are optimized for low SWaP (Size, Weight and Power). The Dione S 1280 CAM is lightweight and small with mechanical shutter. It utilizes Xenics image enhancement for advanced image processing while keeping power consumption low.
All Dione S 1280 versions have the same SAMTEC ST5 connector and are GenICam compliant. Dione S 1280 CAM is a LWIR uncooled thermal imaging SWAP module with housing supporting M34/M45 lens (optional).
The ultra-compact Dione S 1280 CAM series find application in safety and security systems, as well as in industrial thermal imaging systems.
Benefits & Features
• State-of-the-art 1280 × 1024 microbolometer detector with 12 μm pitch
• Low SWaP (Size, Weight and Power)
• GenICam compliant
• Shuttered and uncooled operation
• Availability of multiple lenses (optional) adds flexibility to integration programs

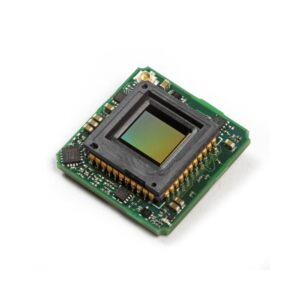

The Dione 640 OEM series is based on an uncooled 12 μm pitch microbolometer detector with a 640 × 480 resolution. The NETD is less than 40 mK (available upon request) or 50 mK.
The cores are optimized for low SWaP (Size, Weight and Power). The overall size of the OEM core is 25 x 25 x 10 mm3 and weight is 6 gr. It utilizes Xenics image enhancement for advanced image processing while keeping power consumption low.
All Dione 640 versions have the same SAMTEC ST5 connector and are GenICam compliant.
The ultra-compact Dione 640 OEM series find application in safety and security systems, as well as in industrial thermal imaging systems.
Benefits & Feature
• State-of-the-art 640×480 microbolometer detector with 12 μm pitch
• Low SWaP (Size, Weight and Power)
• GenICam compliant
• Shutterless and uncooled operation

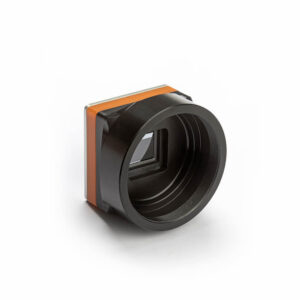

The Dione 640 CAM series is based on the Dione 640 OEM thermal imaging core with 640 x 480 pixels and 12 μm pixel pitch. The NETD is less than 40 mK (available upon request) or 50 mK. The maximum frame rate is 60 Hz.
The camera cores are optimized for low SWaP (Size, Weight and Power). The Dione 640 CAM is both lightweight and small. It utilizes Xenics image enhancement for advanced image processing while keeping power consumption low.
All Dione 640 CAM versions have the same SAMTEC ST5 connector and are GenICam compliant. Dione 640 CAM is a LWIR uncooled thermal imaging SWAP module with housing supporting M24/M34 lens (optional).
The ultra-compact Dione 640 CAM series find application in safety and security systems, as well as in industrial thermal imaging systems.
Benefits & Features
• State-of-the-art 640×480 microbolometer detector with 12 μm pitch
• Low SWaP (Size, Weight and Power)
• GenICam compliant
• Shutterless and uncooled operation
• Availability of multiple lenses (optional) adds flexibility to integration programs

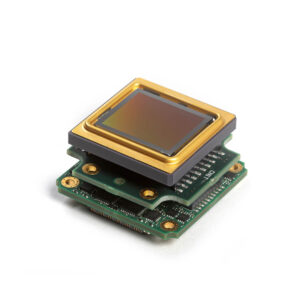

The Dione 1280 OEM series is based on an uncooled 12 μm pitch microbolometer detector with a 1280 × 1024 resolution. The NETD is less than 40 mK (available upon request) or 50 mK.
The cores are optimized for low SWaP (Size, Weight and Power). The overall size of the OEM core is 35 x 35 x 23.5 mm3 and weight is 27 gr. It utilizes Xenics image enhancement for advanced image processing while keeping power consumption low.
All Dione 1280 versions have the same SAMTEC ST5 connector and are GenICam compliant.
The ultra-compact Dione 1280 OEM series find application in safety and security systems, as well as in industrial thermal imaging systems.
Benefits & Features
• State-of-the-art 1280 × 1024 microbolometer detector with 12 μm pitch
• Low SWaP (Size, Weight and Power)
• GenICam compliant
• Shutterless and uncooled operation

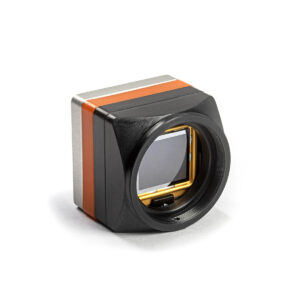

The Dione 1280 CAM series is based on the Dione 1280 OEM thermal imaging core with 1280 x 1024 pixels and 12 μm pixel pitch. The NETD is less than 40 mK (available upon request) or 50 mK. The maximum frame rate is 60 Hz.
The camera cores are optimized for low SWaP (Size, Weight and Power). The Dione 1280 CAM is both lightweight and small. It utilizes Xenics image enhancement for advanced image processing while keeping power consumption low.
Dione 1280 CAM is a LWIR uncooled thermal imaging SWAP module with housing supporting M34/M45 lens (optional).
The ultra-compact Dione 1280 CAM series find application in safety and security systems, as well as in industrial thermal imaging systems.
Benefits & Features
• State-of-the-art 1280 × 1024 microbolometer detector with 12 μm pitch
• Low SWaP (Size, Weight and Power)
• GenICam compliant
• Shutterless and uncooled operation
• Availability of multiple lenses (optional) adds flexibility to integration programs

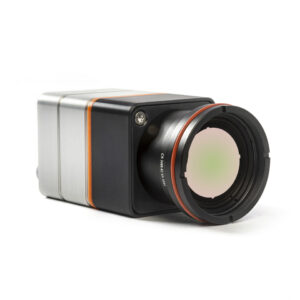

The Ceres T 640 series is based upon the Dione 640 OEM thermal imaging core with 640×480 pixels and 12 μm pixel pitch. The camera offers superior on-board thermographic performance (accuracy, stability) in the temperature range up to 400°C.
The Ceres T 640 camera outputs full frame images at 60 Hz via either a CameraLink or GigE Vision interface.
The compact size, excellent thermographic stability and accuracy, and GenICam compliant interfacing allow for easy integration in demanding industrial thermography applications. The camera comes with two different HFOV (Horizontal Field-Of-View) options: 24 and 50 degrees.
The compact Ceres T 640 series find application in process monitoring, medical and scientific and advanced research.
Benefits & Features
• State-of-the-art 640 × 480 microbolometer detector with 12 μm pitch
• Compact size for industrial thermography applications
• GenICam compliant
• Uncooled operation

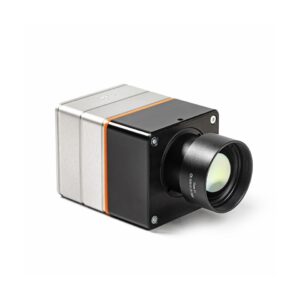

The Ceres T 1280 series is based upon the Dione 1280 OEM thermal imaging core with 1280×1024 pixels and 12 μm pixel pitch. The camera offers superior on-board thermographic performance (accuracy, stability) in the temperature range up to 400°C.
The Ceres T 1280 camera outputs full frame images at 60 Hz via either a CameraLink or GigE Vision interface.
The compact size, excellent thermographic stability and accuracy, and GenICam compliant interfacing allow for easy integration in demanding industrial thermography applications. The camera comes with one HFOV (Horizontal Field-Of-View) option: 48 degrees.
The compact Ceres T 1280 series find application in process monitoring, medical and scientific and advanced research.
Benefits & Features
• Compact size and high-resolution
• Superior on-board thermographic performance (stability, accuracy)
• GenICam compliant
• Uncooled operation

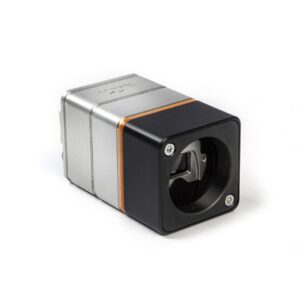

The Ceres V 640 is based upon the Dione 640 OEM thermal imaging core with 640×480 pixels and 12 μm pixel pitch. The camera offers superior thermal imaging capabilities, thanks to the state-of-the-art microbolometer detector and on-board image processing.
The Ceres V 640 camera outputs full frame images at 60 Hz via either a CameraLink or GigE Vision interface — all GenlCam compliant.
The compact size, excellent image quality and GenlCam compliant interfacing allow for easy integration in demanding industrial, scientific and security thermal imaging applications.
The camera comes either in a no-lens configuration (camera only with M24x0.5 and M34x0.5 optical mount), or with four different HFOV (Horizontal Field-Of-View) options: 8, 12, 24 or 50 degrees.
Benefits & Features
• Compact and high-resolution
• Superior on-board image processing performance (optimized image quality)
• GenICam compliant
• Uncooled operation
• Flexible optical mount and lens options

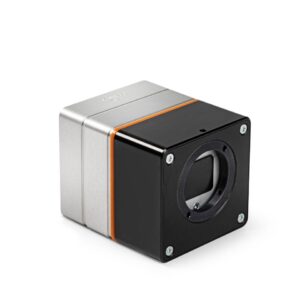

The Ceres V 1280 is based upon the Dione 1280 OEM thermal imaging core with 1280×1024 pixels and 12 μm pixel pitch. The camera offers superior thermal imaging capabilities thanks to the state-of-the-art high-resolution microbolometer detector and on-board image processing.
The Ceres V 1280 camera outputs full frame images at 60 Hz via either a CameraLink or GigE Vision interface – all GenICam compliant.
The compact size, excellent image quality and GenICam compliant interfacing allow for easy integration in demanding industrial, scientific and security thermal imaging applications.
The camera comes either in a no-lens configuration (camera only with M34x0.5 and M45x0.75 optical mount), or with four different HFOV (Horizontal Field-Of-View) options: 12, 16, 25, 48 or 71 degrees
The high-resolution Ceres V 1280 series find application in industrial machine vision, scientific research, medical and security systems where a GenICam compliant interface is a strong requirement.
Benefits & Features
• Compact and high-resolution
• Superior on-board image processing performance (optimized imge quality)
• GenICam compliant
• Uncooled operation
• Flexible optical mount and lens options

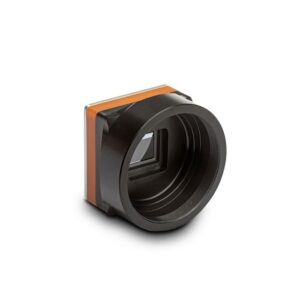

The Dione 320 CAM series is based on an uncooled state-of-the-art 12 μm pitch detector with 320×240 pixels and NETD of less than 40 mK (available upon request) or 50 mK.
The camera cores are optimized for low SWaP (Size, Weight, and Power). The Dione 320 CAM is both light weight and small. It utilizes Xenics image enhancement for advanced image processing while keeping power consumption low.
All Dione 320 versions have the same SAMTEC ST5 connector and are GenICam compliant. Dione 320 CAM is a LWIR uncooled thermal imaging camera SWaP module with housing supporting M24/M34 lens (optional)
The compact Dione 320 CAM series find applications in industrial machine vision, medical, scientific and advanced research, safety and security systems.
Benefits & Features
• State-of-the-art detector with 12 μm pitch
• Industry leading SWaP (Size, Weight and Power)
• GenICam compliant for easy integration
• Shutterless operation
• Availability of multiple lenses (optional) add flexibility to integration programs

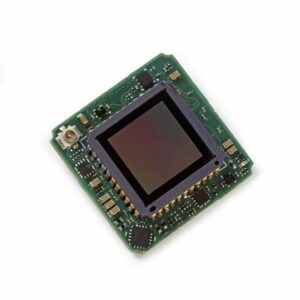

The Dione 320 OEM is based on a state-of-the-art detector with a 320×240 pixels and 12 μm pixel pitch. The NETD is less than 40 mK (available upon request) or 50 mK.
The cores are optimized for low SWaP (Size, Weight and Power). The overall size of the OEM core is 25 x 25 x 10 mm3 and weight is 6 gr. It utilizes Xenics image enhancement for advanced image processing while keeping power consumption low.
All Dione 320 versions have the same SAMTEC ST5 connector and are GenICam compliant.
The compact Dione 320 OEM series find application in industrial machine vision, medical, scientific and advanced research, safety and security systems.
Benefits & Features
• State-of-the-art detector with 12 μm pitch
• Industry leading SWaP (Size, Weight and Power)
• GenICam compliant for easy integration
• Shutterless operation
• High level of tunability for optimal integration into many systems

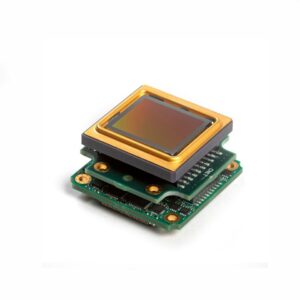

The Dione 1024 OEM Series is based on a state-of-the-art detector with 1024×768 pixels and 12 μm pixel pitch. The NETD is less than 40 mK (available upon request) or 50 mK. The maximum frame rate is 80 Hz. It utilizes Xenics image enhancement for advanced image processing while keeping power consumption low.
The cores are optimized for low SWaP (Size, Weight and Power). The overall size of the OEM core is 35x35x21.5 mm3 and the weight is 25 gr.
All Dione 1024 versions have the same SAMTEC ST5 connector and are GenICam compliant.
The compact Dione 1024 OEM series find application in safety & security, transportation and process monitoring.
Benefits and Features
• Ultra-compact size, low weight and power (SWaP)
• 1024×768 microbolometer detector with 12 μm pixel pitch
• Frame rates up to 80 Hz
• Detector NETD is less than 40 mK (available upon request) or 50 mK
• Uncooled and shutterless

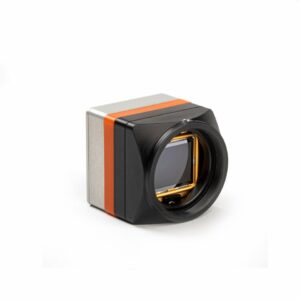

The Dione 1024 CAM series is based upon the Dione 1024 OEM thermal imaging core with 1024×768 pixels and 12 μm pixel pitch. The NETD is less than 40 mK (available upon request) or 50 mK. The maximum frame rate is 80 Hz.
Dione 1024 CAM is a LWIR uncooled thermal imaging SWaP module with housing supporting M34/M45 lens (optional).
Dione 1024 CAM series benefit from Xenics image enhancement for advanced image processing while keeping power consumption low. Moreover, GenICam compliance and the availability of multiple lenses (optional) provides a high level of tunability for optimal integration into many systems.
The compact Dione 1024 CAM series find applications in safety and security, transportation and industrial process monitoring.
Benefits and Features
• Ultra-compact size, low weight and power (SWaP)
• 1024×768 microbolometer detector with 12 μm pixel pitch
• Frame rates up to 80 Hz
• Detector NETD is less than 40 mK (available upon request) or 50 mK
• Uncooled and shutterless

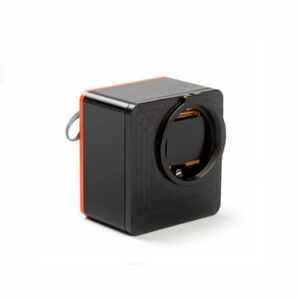

The Dione S 1024 CAM series is based upon the Dione 1024 OEM thermal imaging core with 1024×768 pixels and 12 μm pixel pitch. The NETD is less than 40 mK (available upon request) or 50 mK. The maximum frame rate is 80 Hz.
Dione S 1024 CAM is a LWIR uncooled thermal imaging SWaP module with housing supporting M34/M45 lens (optional).
Dione S 1024 CAM series benefit from Xenics image enhancement for advanced image processing while keeping power consumption low. Moreover, GenICam compliance and the availability of multiple lenses provide a high level of tunability for optimal integration into many systems.
The compact Dione S 1024 CAM series find applications in safety and security, transportation and industrial process monitoring.
Benefits and Features:
• Ultra-compact size, low weight and power (SWaP)
• 1024×768 microbolometer detector with 12 μm pixel pitch
• Frame rates up to 80 Hz
• Detector NETD is less than 40 mK (available upon request) or 50 mK
• Uncooled with mechanical shutter

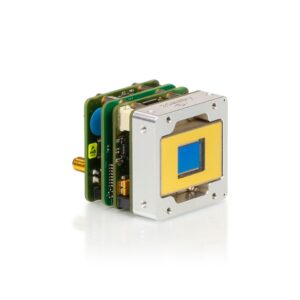

The XSW 320 Gated series is based on in-house developed, temperature stabilised InGaAs detector with a 320 x 256 pixel resolution.
The XSW 320 Gated modules are able to provide maximum frame rates up to 400 Hz. The exposure time of the sensor is configurable from 100 ns up to 1 ms in steps of 100 ns, or from 1 ms to 40 ms.
The module comes with either CameraLink, GigE Vision or QTE Samtec interface.
Benefits & Features
• Extremely short 100 ns integration time
• CameraLink, GigE Vision and QTE Samtec interfacing options
• Small SWIR area-scan module

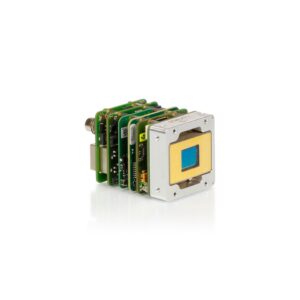

The XSW 640 series is based on an in-house developed, temperature stabilised InGaAs detector with a 640 x 512 pixel resolution.
The XSW 640 modules are offered with frame rate of up to 100 Hz. The module comes with either a CameraLink, GigE Vision or QTE Samtec interface and features low weight and power.
We offer a visible short-wave infrared (vSWIR) option for extended wavelength into the visible band.
Benefits & Features
• vSWIR optional
• Low noise, low dark current
• CameraLink, GigE Vision or QTE Samtec interfacing options
• Versatility with gain modes
The XSW 320 series is based on an in-house developed, temperature stabilised InGaAs detector with a 320 x 256 pixel resolution.
The XSW 320 camera modules are offered with frame rates of up to 400 Hz.
The camera modules come with either a CameraLink, GigE Vision or QTE Samtec interface and features low weight and power.
Benefits & Features
• Flexible and easy-to-use
• CameraLink, GigE Vision, QTE Samtec interfacing options
• Low dark current
• Small SWIR area-scan camera module

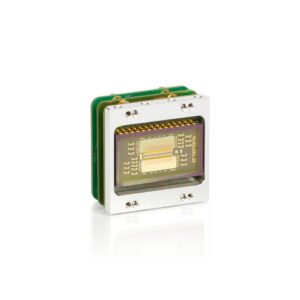

The XSL square (SQ) series, based on an in-house developed linear detector, offer affordable short-wave infrared (SWIR) line-scan images.
The XSL SQ camera modules are able to image line rates up to 40 kHz. The modules come with an industry-standard CameraLink, GigE Vision or QTE Samtec interface.
Depending on your imaging requirements, three resolutions of 512, 1024 or 2048 pixels are offered.
Benefits & Features
• High speed line-scan imaging up to 40 kHz
• High resolution
• CameraLink, GigE Vision or QTE Samtec interfacing

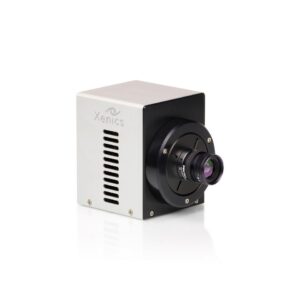

The Xeva 320 series is based on an in-house manufactured InGaAs detector with a 320 x 256 pixel resolution.
The Xeva 320 cameras offer frame rates of more than 340 Hz. The camera comes with a CameraLink or USB interface.
A visible enhanced short-wave infrared (vSWIR) option for extended wavelength response into the visible band is available.
Benefits & Features
• vSWIR optional
• Sensor cooling available for increased exposure time range
• Low dark current
• USB and/or CameraLink interfacing options
• Versatility with gain modes

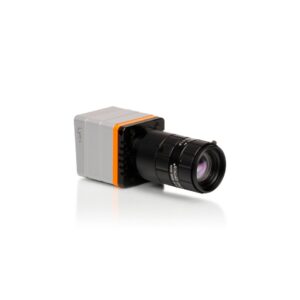

The Lynx square (SQ) series, based on an in-house developed linear InGaAs detector, offer affordable short-wave infrared (SWIR) line-scan imagers.
The Lynx SQ cameras are able to image line rates up to 40 kHz for demanding machine vision applications. The cameras come with an industry-standard CameraLink or GigE Vision interface.
Depending on your imaging requirements, three resolutions of 512, 1024, or 2048 pixels are offered.
Benefits & Features
• High speed line-scan imaging up to 40 kHz
• High resolution
• CameraLink or GigE Vision interfacing

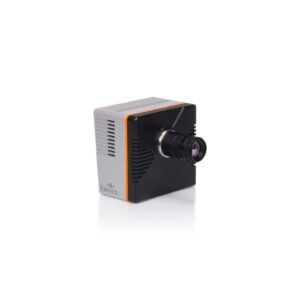

The Cheetah 640 series is based on a cooled, in-house developed InGaAs detector with a 640 x 512 pixel resolution.
The Cheetah 640 camera with single-stage TE-cooled detector offers high frame rates of either 400 Hz, 800 Hz or 1700 Hz while the version with three-stage TE-cooled detector offers a frame rate of up to 110 Hz. The camera comes with a CameraLink interface.
A visible short-wave infrared (vSWIR) option is available for extension into the visible wavelength band.
Benefits & Features
• World’s fastest SWIR area-scan imaging up to 1700 Hz
• vSWIR optional
• Low dark current
• Reliable data transfer via CameraLink

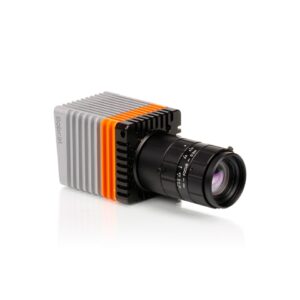

The Bobcat 320 Gated series is based on an in-house developed, temperature stabilised InGaAs detector with a 320 x 256 pixel resolution.
The Bobcat 320 Gated cameras are able to provide maximum frame rates up to 400 Hz. The exposure time of the sensor is configurable from 100 ns up to 1 ms in steps of 100 ns, or from 1 ms to 40 ms.
The camera comes with either CameraLink or GigE Vision interface.
Benefits & Features
• Extremely short 100 ns integration time
• Programmable trigger-out
• CameraLink or GigE Vision interfacing options
• Small SWIR area-scan camera
The Bobcat 640 series is based on an in-house developed, temperature stabilised InGaAs detector with a 640 x 512 pixel resolution.
The Bobcat 640 cameras are offered with high frame rate of 100 Hz. The camera comes with a CameraLink or GigE Vision interface and features low weight and power.
Either for machine vision inspection or scientific research, the compact Bobcat 640 meets requirements of high sensitivity in the SWIR range. We offer a visible enhanced short-wave infrared (vSWIR) option for extended wavelength response into the visible band.
Benefits & Features
• vSWIR optional
• Low noise, low dark current
• CameraLink or GigE Vision interfacing options
• Versatility with gain modes
The Bobcat 320 series is based on an in-house developed, temperature stabilised InGaAs detector with a 320 x 256 pixel resolution.
The Bobcat 320 cameras are offered with frame rates of either 100 Hz or 400 Hz. The camera comes with a CameraLink or GigE Vision interface and features low weight and power.
The Bobcat 320 targets cost sensitive volume markets such as laser beam analysis applications, sorting & recycling industry and investigation of defects inside silicon semiconductor material.
Benefits & Features
• Flexible and easy-to-use
• CameraLink or GigE Vision interfacing options
• Low dark current
• Small SWIR area-scan camera

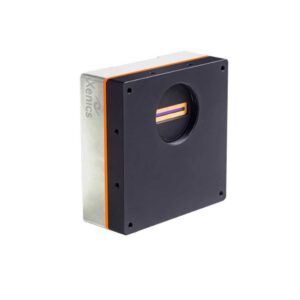

Based on a brand new, in-house developed InGaAs linear detector, the Manx square (SQ) is a high-performance short-wave infrared (SWIR) camera providing high speed and quality line-scan imaging. At unprecedented line rates of up to 256 kHz (or 128 kHz), the Manx square (SQ) stands as the fastest line-scan InGaAs camera available in the world.
The Manx square (SQ) is able to provide up to 2048 pixel resolution. It also presents the lowest noise performance record for a 2048 pixel SWIR linear camera, combined with excellent dynamic range.
The use of CoaXPress interfacing enables fast and reliable data transfer.
The Manx square (SQ) is offered in 3 different resolutions of 512, 1024 or 2048 pixels.
Silicon wafer inspection, TFT screen inspection, food and agricultural produce sorting are some industrial applications that would benefit from this new line of ultra fast linear SWIR cameras.
Benefits & Features
• World’s fastest SWIR line-scan imaging up to 256 kHz
• High resolution
• Low noise, low dark current
• CoaXPress interfacing for reliable streaming of data
• Versatility with 4 gain modes
• Optional GigE convertor available
Based on a brand new, in-house developed InGaAs linear detector, the Manx rectangular (R) is a high-performance short-wave infrared (SWIR) camera providing high speed and quality line-scan imaging. At unprecedented line rates of up to 256 kHz (or 128 kHz), the Manx rectangular (R) stands as the fastest line-scan InGaAs camera available in the world.
The Manx rectangular (R) is able to provide up to 2048 pixel resolution. It also presents the lowest noise performance record for a 2048 pixel SWIR linear camera, combined with excellent dynamic range.
The use of CoaXPress interfacing enables fast and reliable data transfer.
The Manx rectangular (R) is offered in 3 different resolutions of 512, 1024 or 2048 pixels.
The Manx rectangular (R) products are suitable for spectroscopy and spectral-domain optical coherence tomography (OCT).
Benefits & Features
• World’s fastest SWIR line-scan imaging up to 256 kHz
• High resolution
• Low noise, low dark current
• CoaXPress interfacing for reliable streaming of data
• Versatility with 4 gain modes
• Optional GigE convertor available
The Bobcat 320 TE0 and WL series are based on an in-house developed, uncooled InGaAs detector with a 320 x 256 pixel resolution.
The Bobcat 320 TE0 and WL cameras are offered with GigE Vision interface, 400 Hz maximum frame rate and feature low weight and power.
The Bobcat 320 WL comes with a windowless uncooled detector, specifically targeting laser beam analysis and laser wavefront sensing applications.
Benefits & Features
• Low cost
• Flexible and easy-to-use
• Low dark current
• High speed 400 Hz
• Windowless version optional (WL)
The Bobcat+ 320 series is based on an in-house developed, temperature stabilised InGaAs detector with a 320 x 256 pixel resolution.
The Bobcat+ 320 cameras come with GigE Vision interface and offer high frame rates up to 400 Hz. The new and improved Bobcat+ 320 now comes with two gain modes (high gain and high dynamic range) and two read out modes (IWR or ITR). Moreover, a vSWIR version is also available.
The Bobcat+ 320 targets machine vision, safetey and security, scientific research, and process monitoring.
Benefits & Features
• Flexible and easy-to-use
• GigE Vision interface
• Low dark current
• SWIR or vSWIR
• High frame rate of 400 Hz
• IWR or ITR read out

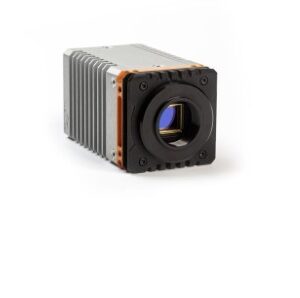

The Wildcat 640 series is based on an in-house developed, temperature stabilised InGaAs detector with a 640 x 512 pixel resolution.
The Wildcat 640 cameras are offered with high frame rate of up to 220 Hz.
The camera comes with a CameraLink or USB3 Vision interface and features low weight and power.
The Wildcat 640 is suitable for SWIR hyperspectral imaging, semiconductor inspection and laser beam analysis.
Benefits & Features
• Frame rate up to 220 Hz
• High dynamic range
• Low noise and low dark current
• CameraLink or USB3 Vision interfacing options
The Wildcat+ 1280 series is based upon a state-of-the-art InGaAs photodiode array with 1280×1024 pixels and 5 μm pixel pitch. The camera offers superior, high-resolution SWIR imaging capabilities, comes in a versatile and industry-proven Wildcat camera package (GenICam compliant) and offers advanced on-board image processing.
The Wildcat+ 1280 camera outputs full frame images at 120 Hz via either a CameraLink or USB3 Vision interface.
The Wildcat+ 1280 is suitable for semiconductor inspection, display inspection (mobile phone and TV), microscopy and laser beam analysis.
Benefits & Features
• Compact and industry-proven camera design
• High-resolution SWIR imaging
• Advanced on-board image processing performance
• GenlCam compliant
• Flexible optical mount and lens options
The Wildcat+ 640 series is based upon a state-of-the-art InGaAs detector with 640×512 pixels and 20 μm pixel pitch. The camera offers superior, high resolution SWIR imaging capabilities, comes in a versatile and industry-proven Wildcat camera package (GenICam compliant) and offers advanced on-board image processing.
The Wildcat+ 640 camera outputs full frame images up to 300 Hz via either a CameraLink or USB3 Vision interface.
The Wildcat+ 640 is suitable for semiconductor inspection, display inspection (mobile phone and TV), and laser beam analysis.
Benefits & Features
The Wildcat+ 640 TE0 and WL series is based upon a state-of-the-art uncooled InGaAs detector with 640×512 pixels and 20 μm pixel pitch. The WL version uses a special windowless sensor package for laser beam analysis applications. The camera offers superior, high-resolution SWIR imaging capabilities, comes in a versatile and industry-proven Wildcat camera package (GenICam compliant) and offers advanced on-board image processing.
The Wildcat+ 640 TE0 and WL cameras output full frame images at 220 Hz via either a CameraLink or USB3 Vision interface.
The Wildcat+ 640 TE0 and WL is suitable for semiconductor inspection, display inspection (mobile phone and TV), microscopy and laser beam analysis.
Benefits & Features
+65 6748 5517
info@jm-vistec.com
10 Kaki Bukit Ave 1, #07-06, Singapore 417942
