Matrox® Imaging, now part of Zebra Technologies Corporation, is an industry-leading developer and trusted supplier to top OEMs and integrators, providing innovative yet cost-effective hardware and software products used in machine vision applications. The components consist of 3D sensors, smart cameras, vision controllers, I/O cards, and frame grabbers, all designed to provide optimum price-performance within a common software environment. Our software, systems, components, and services are tailored for industries including automotive manufacturing, packaging, food and beverage production, semiconductor manufacturing, medical imaging, electronics and flat panel display manufacturing, transportation, pharmaceutical production, medical device manufacturing, surveillance, and logistics. Customers stay with Matrox Imaging over multiple product generations because of our commitment to developing cutting-edge technology, providing comprehensive technical consulting and integration services, and offering only the highest manufacturing standards.

MAIN CATEGORY

Completely Customizable to Meet Unique Quality Inspection Needs
The customisable VS70 can address complex processes and environmental challenges. Whether you need a wide-angle lens to capture large parts, a zoom lens to inspect a distant component or a specialised lens for precise measurements, you can do it all with the VS70. Upgrade to more advanced features with the simple purchase of a software license. Plus, with the Zebra Aurora software platform, you can easily set up, deploy and run the VS70 —and Zebra’s entire Industrial Machine Vision and Fixed Scanner portfolio.

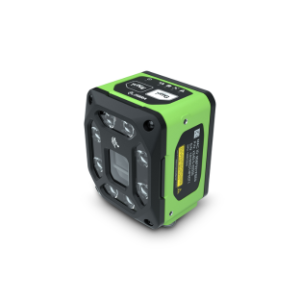

Comprehensive Machine Vision Features Integrated Into a Single Package
The VS40 offers the breadth of functionality and options required to support just about every inspection application on the production line. Tailor the device to your needs by choosing from flexible options that include lenses, illumination, connectivity, power, and filters. Plus, you can upgrade to more advanced features with the simple purchase of a software license. With Zebra Aurora’s powerful software platform, you can easily set up, deploy and run the VS40—and all other Zebra Machine Vision Smart Cameras and Fixed Industrial Scanners.

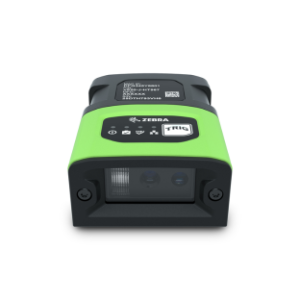

Easily Integrate Machine Vision Into Your Network
The compact VS20 fits wherever you need to perform essential quality inspections. Multiple connectivity options easily integrate into your PLC or Host network, enabling your primary machine vision applications to feed all the processes that drive your business. With Zebra Aurora’s powerful software platform, you can easily set up, deploy and run the VS20 — and all other Zebra Machine Vision Smart Cameras and Fixed Industrial Scanners. Plus, you can upgrade to more advanced features with the simple purchase of a software license.

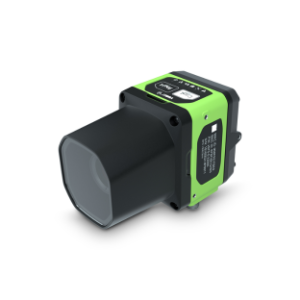

Completely Customizable to Enable the Most Challenging Track-and-Trace Apps
Get the ultimate in customization to achieve flawless track and trace in virtually any application and any environment. Choose from four image sensors and a world of C-mount external lens and lighting options. With Zebra’s powerful and intuitive Aurora software platform, you get one unified tool to easily set up, deploy and run the FS70, as well as Zebra’s entire fixed industrial scanner and machine vision portfolio. And simply purchase licenses to add advanced capabilities to address new business needs.
Built for High-throughput Data Capture and Deep Learning Applications
Empower your enterprise with real-time track-and-trace of every item with the FS40. Multiple connectivity options easily integrate into your PLC or Host network, enabling your primary scanning applications to feed all the processes that drive your business. Zebra’s powerful Aurora software platform provides a highly intuitive and elegant interface that makes the FS40 easy to set up, deploy and run. And you can easily upgrade to new capabilities, future-proofing your investment.
Easily Integrate Plug-and-Play High-Quality Scanning Into Your Network
Empower your enterprise with real-time track-and-trace of every item with the FS20. Multiple connectivity options easily integrate into your PLC or Host network, enabling your primary scanning applications to feed all the processes that drive your business. Zebra’s powerful Aurora software platform provides a highly intuitive and elegant interface that makes the FS20 easy to set up, deploy and run. And you can easily upgrade to new capabilities, future-proofing your investment.

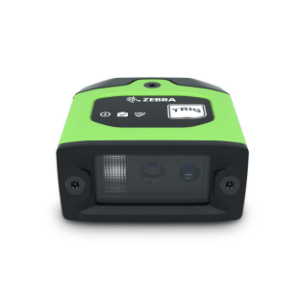

Compact Fits-Anywhere Plug and Play Scanning for Basic Offline Track And-Trace Apps
Easily track and trace items as they move through the warehouse and distribution center with Zebra’s FS10. This compact device easily fits wherever you need scanning. Zebra Aurora software brings groundbreaking simplicity to device management — the FS10 couldn’t be easier to set up, deploy and run. And you get the flexibility to support more symbologies and increased scanning speed with the simple purchase of a software license.
Intuitive, versatile, and extendable integrated development environment for machine vision applications

Matrox Design Assistant® X1 is an integrated development environment (IDE) for Microsoft® Windows® where vision applications are created by constructing an intuitive flowchart instead of writing traditional program code. In addition to building a flowchart, the IDE enables users to design a graphical web-based operator interface for the application.

Matrox Design Assistant X can operate independent of hardware, allowing users to choose any computer with CoaXPress®, GigE Vision®, or USB3 Vision® cameras and get the processing power needed. Image capture from CoaXPress cameras happens with the use of a Matrox Rapixo CXP frame grabber. Matrox Design Assistant X works with multiple cameras all within the same project, or per project running concurrently and independently from one another, platform permitting. This field-proven software is also a perfect match for a Matrox Imaging vision controller or smart camera. Matrox Design Assistant X includes classification steps that categorize image content using deep learning.

This flowchart-based vision software offers the freedom to choose the ideal platform for any vision project and speeds up application development.

Machine vision and image analysis software development kit

Matrox® Imaging Library (MIL) X1 is a comprehensive collection of software tools for developing machine vision, image analysis, and medical imaging applications. MIL X includes tools for every step in the process, from application feasibility to prototyping, through to development and ultimately deployment.

The software development kit (SDK) features interactive software and programming functions for image capture, processing, analysis, annotation, display, and archiving. These tools are designed to enhance productivity, thereby reducing the time and effort required to bring solutions to market.

Image capture, processing, and analysis operations have the accuracy and robustness needed to tackle the most demanding applications. These operations are also carefully optimized for speed to address the severe time constraints encountered in many applications.

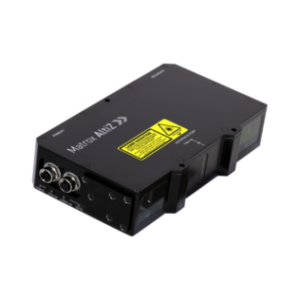

High-fidelity 3D profile sensors

Matrox® AltiZ1 is a series of high-fidelity 3D profile sensors. Each sensor features a dual-camera single-laser design that greatly lessens the scanning gaps often encountered at critical surface junctures because of optical occlusions. Unique algorithms running inside the sensor automatically generate various types of reliable 3D data—individual profiles, depth maps, or point clouds—obtained by smartly combining or selecting the pixel data from the two integrated image sensors, which is automatically sampled for a constant horizontal resolution.

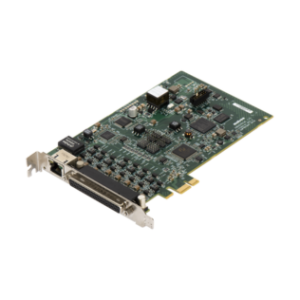

Industrial I/O and communication card

Matrox® Indio provides the industrial I/O and communication capabilities to turn any PC running Matrox Imaging vision software into a genuine vision controller. It provides discrete inputs and outputs managed in hardware for the real-time synchronization of a vision application with automation devices. It also provides Gigabit Ethernet connectivity for interfacing with programmable logic/automation controllers or GigE Vision® cameras equipped for Power-over-Ethernet (PoE).

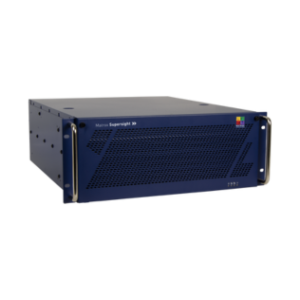

High-density computing platform for demanding industrial imaging

Matrox® Supersight is a high-density industrial computing platform capable of accommodating up to four computers in a standard 4U enclosure. Each computer or compute cluster is equipped with an embedded Intel® Core™ processor, and works alone or together with the others to implement distributed computing. A high-speed PCIe® switched fabric backplane ensures efficient communication and data exchange between compute clusters as necessary. The same backplane accepts full-size PCIe expansion cards for a broad range of image acquisition, network interface, processing offload, and acceleration options from Matrox Imaging and third parties. Matrox Supersight vision controllers—Matrox Supersight Solo, Matrox Supersight Duo, and Matrox Supersight Quad—are fully supported by Matrox Imaging Library (MIL) X, an established collection of software tools for developing industrial imaging applications; this software development kit (SDK) helps developers deliver a complete solution in a timely manner. Backed by a carefully managed lifecycle and consistent long-term availability, the Matrox Supersight series provides a solid foundation for demanding machine vision applications.

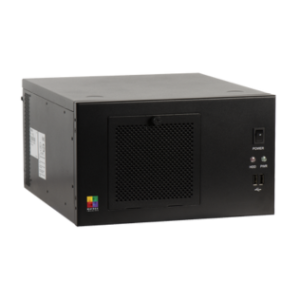

Expandable entry-level vision controller

Matrox® 4Sight XV6 is an expandable ruggedized computer designed for demanding imaging workloads. Its reliable platform is ideal for video acquisition, offering four full-height, half-length PCIe® expansion slots designed to host multiple cards, including frame grabbers operating at full performance. It can support up to three displays—VGA, DVI-D, HDMI™, and/or DisplayPort™—from the available outputs.

This powerful vision controller is the latest iteration of the Matrox 4Sight series, delivering desktop-level processing performance and ample expansion, all packaged in a small, sturdy casing. Powered by an eighth-generation Intel® Core™ processor, the Matrox 4Sight XV6 is capable of supporting intensive machine vision applications. Matrox 4Sight XV6 vision controllers are supported by two comprehensive software platforms: Matrox Design Assistant X is a flowchart-based integrated development environment (IDE), whereas Matrox Imaging Library (MIL) X is a software development kit (SDK) for more traditional programmers. Each software offers tools for video capture, analysis, classification, location, measurement, reading, verification, communication, and I/O operations so that engineers and technicians can quickly configure and deploy machine vision applications to Matrox 4Sight XV6 vision controllers.

Fanless industrial imaging computer

Matrox® 4Sight EV7 is an industrial computer built for demanding multi-camera machine vision applications on the factory floor. Part of a long and solid history, the Matrox 4Sight EV7 is an evolution of its immediate predecessor, integrating a twelfth-generation twelve-core Intel® Core™ processor that includes acceleration for deep learning inference or prediction. A fanless design with multiple ports for GigE Vision® and USB3 Vision® cameras makes the Matrox 4Sight EV7 right at home in any production facility, keeping an eye on a single line or many production lines.

Matrox 4Sight EV7 vision controllers are supported by two comprehensive software platforms: Matrox Design Assistant® X is a flowchart-based integrated development environment (IDE), whereas Matrox Imaging Library (MIL) X is a software development kit (SDK) for more traditional programmers. Engineers and technicians can quickly configure and deploy machine vision applications to Matrox 4Sight EV7 vision controllers using the range of included software tools for video capture, analysis, classification, location, measurement, reading, verification, communication, and I/O operations.

Machine vision and deep learning edge IoT device

Matrox® Iris GTX is the next evolution of smart cameras from Matrox Imaging. Offering higher resolution sensors and substantially more processing power than its immediate predecessor, Matrox Iris GTX provides exceptional performance for a compact all-in-one vision system. Paired with flowchart-based Matrox Design Assistant® X1 software, engineers and technicians can quickly configure and deploy machine vision to the Matrox Iris GTX smart cameras. Video capture, analysis, classification, location, measurement, reading, verification, communication, and I/O operations—as well as a web-based operator interface—are all set up within the same software. Matrox Iris GTX smart cameras are model edge IoT devices, performing data acquisition and analytics, and providing results nearest to the manufacturing

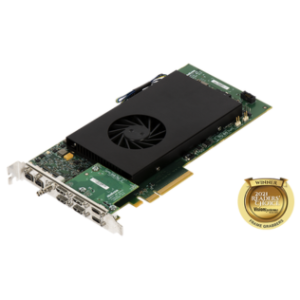

Multi-format multi-input UHD video capture card with optional H.264 encoding

Matrox® Clarity UHD is a comprehensive video capture card supporting the full range of video formats from standard definition (SD) to high definition (HD) all the way to ultra-high definition (UHD). Mini DisplayPort, HD-BNC, HDMI, and custom analog DVI1 connectivity are provided to hook up to and switch between the different types of legacy and advanced video sources used in medical, surveillance, and simulation-training applications. System setup and management are further simplified with the board’s automatic video source presence and format detection. Matrox Clarity UHD can simultaneously acquire multiple streams—such as eight HD (1080p60) or two 4K UHD (2160p60) video streams—and reliably transfer these off-board using its efficient PCIe® 2.0 x8 host interface.

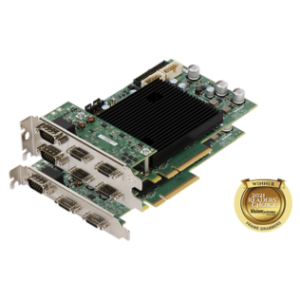

Feature-packed high-performance Camera Link frame grabber series

Matrox® Radient eV-CL is a series of Camera Link® frame grabbers with the most comprehensive features currently available in the industry. The frame grabber line-up offers reliable image acquisition, extended cable length support, and high frame-rate image capture that will extend the effectiveness of the Camera Link standard for years to come.

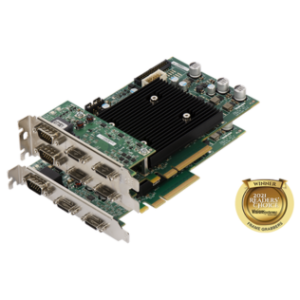

Feature-packed high-performance Camera Link frame grabbers with FPGA-based image processing offload

Matrox® Rapixo CL Pro is a series of Camera Link® frame grabbers with the most comprehensive features currently available in the industry. Built upon the field-proven design of the Matrox Radient eV series of Camera Link frame grabbers, the Matrox Rapixo CL Pro offers reliable image acquisition, extended cable length support, high frame-rate image capture, and onboard image processing offload that will extend the effectiveness of the Camera Link standard for years to come.

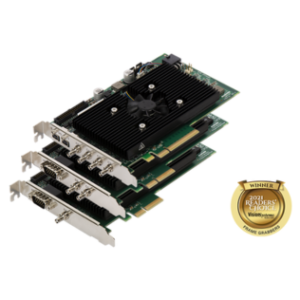

Single- to quad-input CoaXPress 2.0 frame grabbers with optional data forwarding and FPGA-based image processing offload

Matrox® Rapixo CXP is a new generation of frame grabbers, supporting version 2.0 of the CoaXPress® digital interface standard for machine vision applications. The Matrox Rapixo CXP series supports data rates of either up to 6.25 Gbps (CXP-6) or up to 12.5 Gbps (CXP-12) per connection. The PCIe® host interface comfortably matches the maximum input bandwidth from the CoaXPress links. The CoaXPress links are accessed through high-density BNC connectors allowing for a homogenous interconnection with new cameras. Power-over-CoaXPress (PoCXP) support on each connection simplifies system configurations, combining the camera’s power interface with its command- and data-interface onto the same coaxial cable.

The Matrox Rapixo CXP series of frame grabbers feature one, two, or four connections for interfacing to independent cameras. Matrox Rapixo CXP Dual and Quad models can also handle higher data rates through connection aggregation. The Matrox Rapixo CXP series possesses sufficient onboard memory to buffer incoming image data in situations where the host computer is temporarily unable to accept data. The fanless design for select models ensures extended use without maintenance.

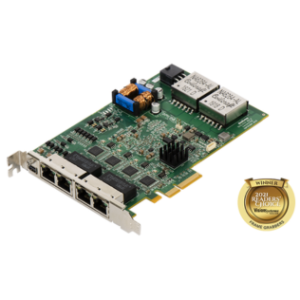

Multi-port Gigabit Ethernet adaptors with PoE for GigE Vision

Matrox® Concord PoE is a new generation of Gigabit Ethernet adaptors for interfacing one or more GigE Vision® cameras supporting Power-over-Ethernet (PoE). Available with two or four Gigabit Ethernet ports, these network interface cards (NICs) simplify system configuration, not only by handling command and streaming protocols but also providing power over a single standard Cat 5e/6 cable per camera connection. An isolated PoE implementation protects cameras, board, and host computer from damage due to electrical faults and stray current that adversely affects camera detection.

Matrox Concord PoE also provides—as an option—a useful Trigger-over-Ethernet (ToE) capability for multiple cameras working together. The hardware-assisted ToE capability allows the sending of a software trigger or an action-command to one or more cameras based on an external input event. The ToE applies to camera(s) on the same or multiple Ethernet ports for a given trigger event. Moreover, this ToE feature helps reduce trigger latency and remove jitter brought on by a non-deterministic host environment.

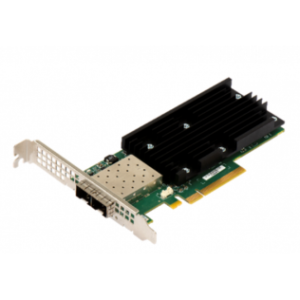

Smart network interface cards for efficient high-bandwidth GigE Vision acquisition

Matrox® GevIQ is the industry’s first network interface card (NIC) offering generic GigE Vision® acquisition offload at speeds up to 25 Gigabits/s per port. With GigE Vision packet processing performed directly onboard, Matrox GevIQ boards enable capture from one or more cameras without any image data loss.

GigE Vision is a camera interface standard that delivers rapid image transfer over distances up to 100 m using standard copper, and up to 5,000 m using standard fiber-optic Ethernet cabling. The standard supports physical links from 1 to 25 Gigabit Ethernet (GbE). Use of 10 and 25 GbE by cameras are gaining industry popularity as they are ideal for vision applications requiring the utmost imaging speed and resolution. Machine vision applications requiring cameras with a 10+ GbE interface can, however, be challenging—they benefit from a high data transmission rate but suffer from increased demands on the host system, resulting in corrupted or dropped image frames, and increased processing latency.

Matrox GevIQ NICs provide a more versatile and widely compatible alternative to custom-built or proprietary solutions based on 10+ GbE. The board is equipped with two 25 GbE ports and acquires from these with very little host CPU usage. Multiple 1, 2.5, 5, or 10 GbE cameras can be aggregated at each port for a total of up to 32 input sources. Support of the standard SFP28 connector allows users to select from standard direct attach copper (DAC) or fiber-optic Ethernet cables for their specific installation requirements.
