OLED panels have many benefits in machine vision applications because they give an exceptionally stable and uniform light intensity across the width of the panel. They are also very thin and can be moulded into complex shapes. However, OLED lights are challenging to control because the physical properties inherent in OLED panels demand sophisticated drive techniques to obtain fast and accurate pulsing.

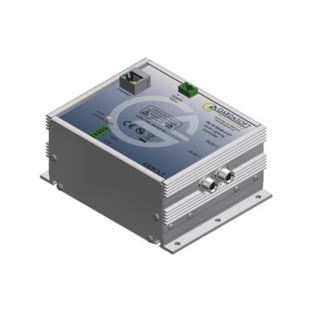

| Parameter | OC-G-5646-2-ET | |
|---|---|---|
| Output channels | 2 independent precision constant-current outputs | |
| Current Drive | Pulse max 10A, Continuous max 2A | |
| Current Drive Resolution | Steps of 6mA (0.3A to 10A) and 100uA (0 to 0.3A) | |
| Output voltage | Max 46V | |
| Output Power | Max 56W per controller | |
| Ethernet | 100base-T | |
| Triggers | 2 opto-isolated digital inputs. 3V to 24V operation | |
| Pulse Delay | 4us to 10ms in steps of 1us | |
| Pulse Width | 100us to 10ms in steps of 1us | |
| Timing repeatability | +/- 1us | |
| Power supply | 24V +- 10% at 10A | |
| Operating temperature | 0 - 40 °C | |
| Humidity | 20% - 85% non-condensing | |
| Dimensions | 112 (length) x 140 (width) x 61 (height) mm | |
| Standards | CE, RoHS, REACH | |
| Mounting | 6 off M4 clearance holes on integral mounting flanges. Fix to heatsinking surface. DIN rail mounting option. | |
| Communications | GigE Vision V2.0, GenICam, UDP/TCP, Third party protocols | |
The PP1600 models can be quickly configured using our free software which can be downloaded from this page, or for the PP1620 Ethernet enabled controller range simply by accessing the controller via your internet browser; type in the IP address for the controller into your browser and you have full access to all of the parameters. If you are using a third party software package the PP1600 range has a simple command set that is detailed in the manual allowing easy communication. As with all Gardasoft products, all the settings are stored in non-volatile memory, and it will retain these settings even when the Ethernet or RS232 connection is disconnected. Gardasoft Controllers are universally compatible with LED Vision lighting, from manufacturers such as CCS.
The RT range is Gardasoft’s latest generation of LED lighting controller solutions for machine vision applications. Implementing our patented SafePower™ technology, installation is very easy, removing the need of having to use a bespoke DC power supply or heat sinking the controller. All RT models also include our SafeSense™ technology, which enables the safe overdriving of LEDs. To get the very best out of your LED lighting solution, in terms of brightness stability and control, lighting should be driven from a current source, not a nominal voltage supply. The Gardasoft pulse / strobe controllers are current sources, with the RT200 controller range offering two output channels which are independently controlled.
The PP420 models can be quickly configured using our free software which can be downloaded from this page, or simply by accessing the controller via your internet browser; type in the IP address for the controller into your browser and you have full access to all of the parameters. If you are using a third party software package the PP420 has a simple command set that is detailed in the manual allowing easy communication. As with all Gardasoft products, all the settings are stored in non-volatile memory, and it will retain these settings even when the Ethernet connection is disconnected.
The PP610 RS232 enabled models can be quickly configured using our free software which can be downloaded from this page. If you are using a third party software package the PP610 range has a simple command set that is detailed in the manual allowing easy communication. As with all Gardasoft products, all the settings are stored in non-volatile memory, and it will retain these settings even when the Ethernet connection is disconnected. Gardasoft Controllers are universally compatible with LED Vision lighting, from manufacturers such as CCS.
