The PP520 models can be quickly configured using our free software which can be downloaded from this page, or simply by accessing the controller via your internet browser; type in the IP address for the controller into your browser and you have full access to all of the parameters. If you are using a third party software package the PP520 has a simple command set that is detailed in the manual allowing easy communication. As with all Gardasoft products, all the settings are stored in non-volatile memory, and it will retain these settings even when the Ethernet connection is disconnected.

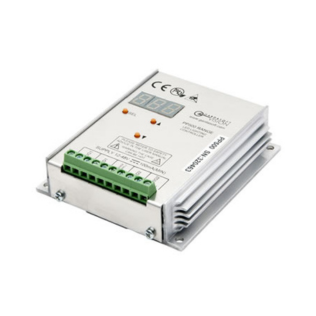

| Parameter | PP500 | PP520 | PP500F | PP520F |
|---|---|---|---|---|
| User interface | Pushbutton | Ethernet or pushbutton | Pushbutton | Ethernet or pushbutton |
| Output channels | Two independent constant current outputs with SafeSense™ | |||
| Output current | From 0mA to 10A in steps of 2.5mA. Up to 2A per channel continuous or 10A pulsed. | |||
| Trigger inputs | 2 opto-isolated digital inputs. Require 3V to 24V. | |||
| Pulse width timing | From 20us to 999 milliseconds in steps of 20us. Timing repeatability 0.1us | From 20us to 999 milliseconds in steps of 20us. Timing repeatability 0.1us | ||
| Delay from trigger to pulse | From 20us to 999 milliseconds in steps of 20us. Timing repeatability 1us | From 5us to 99 milliseconds in steps of 1us. Timing repeatability 1us | ||
| Output voltage | 0V to 46V. | |||
| Supply voltage | Regulated 12V to 48V. The supply voltage must be at least 1V higher than the output voltage required by the lighting. | |||
| Dimensions | 118mm long by 76mm wide by 27mm high (excluding DIN fixing) | |||
| Weight | 240g excluding DIN fixing | |||
| Mounting | DIN rail or panel mounting. | |||
The Gardasoft TR-HT series are industry’s highest power controllers for Machine Vision LED lighting; at 150W per channel, they are the perfect partner for driving high power LED Area and LED Bar lights.
The PP1600 models can be quickly configured using our free software which can be downloaded from this page, or for the PP1620 Ethernet enabled controller range simply by accessing the controller via your internet browser; type in the IP address for the controller into your browser and you have full access to all of the parameters. If you are using a third party software package the PP1600 range has a simple command set that is detailed in the manual allowing easy communication. As with all Gardasoft products, all the settings are stored in non-volatile memory, and it will retain these settings even when the Ethernet or RS232 connection is disconnected. Gardasoft Controllers are universally compatible with LED Vision lighting, from manufacturers such as CCS.
The RC range is Gardasoft’s latest generation of LED lighting controller solutions for machine vision applications. Implementing our patented SafePower™ technology, installation is very easy, removing the needs of perhaps having to use a bespoke DC power supply or heat sinking the controller. All RC models also include our SafeSense™ technology. To get the very best out of your LED lighting solution, in terms of brightness stability and control, lighting should be driven from a current source, not a nominal voltage supply. The Gardasoft RC Series controllers are therefore single channel current source devices.
The PP420 models can be quickly configured using our free software which can be downloaded from this page, or simply by accessing the controller via your internet browser; type in the IP address for the controller into your browser and you have full access to all of the parameters. If you are using a third party software package the PP420 has a simple command set that is detailed in the manual allowing easy communication. As with all Gardasoft products, all the settings are stored in non-volatile memory, and it will retain these settings even when the Ethernet connection is disconnected.
