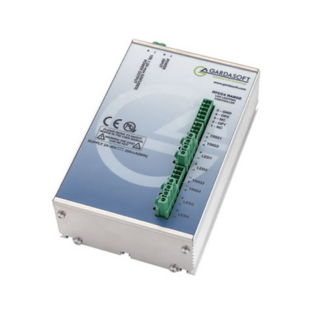

The RTCC4 combines the features of the Gardasoft RT Series LED Lighting Controllers with the addition of two digital outputs for Triggering or general use. This combination provides a high level of integration in Machine Vision systems – reducing complexity, space and cost.
| Parameter | RTCC420 | RTCC460 | RTCC420F | RTCC460F |
|---|---|---|---|---|
| User interface | Ethernet | RS232, 115KBaud | Ethernet | RS232, 115KBaud |
| Output channels | Four independent current outputs with SafeSense™ | |||
| Output current | -2 option: Up to 2A per channel continuous or 2A pulsed in steps of 1mA -20 option: Up to 3A per channel continuous or 20A pulsed in steps of 5mA | |||
| Output power | Max 30W per channel | |||
| Trigger inputs | 4 opto-isolated digital inputs. Require 3V to 24V | |||
| Digital outputs | 2 open collector outputs | |||
| Timing | From 20µs to 999 ms in steps of 20µs/100µs | From 1µs to 999 ms in steps of 1µs/100µs | ||
| Delay from trigger to pulse | From 20µs to 999 ms in steps of 20µs/100µs | From 3µs to 999 ms in steps of 1µs/100µs | ||
| Timing repeatability | Delay + Pulse up to 1ms: 0.1µs for pulse width and 3µs for delay. Otherwise 100µs | |||
| Output voltage | 0V to 46V | |||
| Supply voltage | Regulated 24V to 48V | |||
| Dimensions | 159mm long by 97mm wide by 62mm high (excluding DIN fixing) | |||
| Weight | 400g | |||
| Mounting | Panel mounting. DIN rail mount option | |||
The Gardasoft TR-CL180 is a single-channel industrial Lens Controller which provides very accurate and repeatable control of tunable lenses. The TR-CL180 has been developed in close collaboration with Optotune. The TR-CL180 includes a precise, constant current drive for the liquid lens and is able to read data stored within the liquid lens. It is compatible with Optotune EL-10-30-Ci, EL-16-40-TC and EL-3-10 tunable lenses.
The PP610 RS232 enabled models can be quickly configured using our free software which can be downloaded from this page. If you are using a third party software package the PP610 range has a simple command set that is detailed in the manual allowing easy communication. As with all Gardasoft products, all the settings are stored in non-volatile memory, and it will retain these settings even when the Ethernet connection is disconnected. Gardasoft Controllers are universally compatible with LED Vision lighting, from manufacturers such as CCS.
The PP420 models can be quickly configured using our free software which can be downloaded from this page, or simply by accessing the controller via your internet browser; type in the IP address for the controller into your browser and you have full access to all of the parameters. If you are using a third party software package the PP420 has a simple command set that is detailed in the manual allowing easy communication. As with all Gardasoft products, all the settings are stored in non-volatile memory, and it will retain these settings even when the Ethernet connection is disconnected.
The RT range is Gardasoft’s latest generation of LED lighting controller solutions for machine vision applications. Implementing our patented SafePower™ technology, installation is very easy, removing the need of having to use a bespoke DC power supply or heat sinking the controller. All RT models also include our SafeSense™ technology, which enables the safe overdriving of LEDs. To get the very best out of your LED lighting solution, in terms of brightness stability and control, lighting should be driven from a current source, not a nominal voltage supply. The Gardasoft pulse / strobe controllers are current sources, with the RT200 controller range offering two output channels which are independently controlled.
