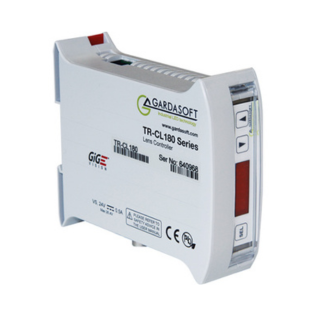

The Gardasoft TR-CL180 is a single-channel industrial Lens Controller which provides very accurate and repeatable control of tunable lenses. The TR-CL180 has been developed in close collaboration with Optotune. The TR-CL180 includes a precise, constant current drive for the liquid lens and is able to read data stored within the liquid lens. It is compatible with Optotune EL-10-30-Ci, EL-16-40-TC and EL-3-10 tunable lenses.
| Parameter | TR-HT220 | TR-HT260 |
|---|---|---|
| User interface | Ethernet | RS232 |
| Output channels | Two independent precision constant current outputs | |
| Output channels (continuous) | 5A max per channel (within 150W envelope) | |
| Output current (pulsed) | 50A max per channel (within 150W envelope) In steps of 0.6mA for currents ≤2A In steps of 15mA for currents >2A | |
| Output power | 150W max average power per channel, 300W max total | |
| Trigger input | Opto-isolated digital inputs. Logic HI = 3V min, 24V max | |
| Trigger Delay (td) | 3µs to 5seconds | |
| Pulse Width (PW)1 | 20µs to 5seconds | |
| Minimum Step Change (PW+td≤500µs)2 | 0.1 µs typ | |
| Minimum Step Change (500µs<PW+td≤100ms)2 | 5.0 µs typ | |
| Minimum Step Change (100ms<PW+td≤10s)2 | 100 µs typ | |
| Trigger rate | 30kHz max | |
| Output voltage | 72V max per channel | |
| Triniti interface | Gardasoft 4-wire Triniti lighting interface | |
| Triniti communications interface | GigE Vision V2.0, GenICam, UDP/TCP, Third party protocols | |
| Supply voltage, full output power | 21.6 to 52.8 VDC | |
| Supply voltage, limited output power3 | 10.8 to 21.6 VDC | |
| Dimensions | 256x140x61 mm | |
| Weight | 1.3kg | |
| Mounting | 6 off M4 clearance holes on integral mounting flanges. Fix TR-HT to heatsinking surface. | |
| Operating temperature | +5 to +50°C | |
| Humidity | 95% non-condensing | |
| Standards | CE, RoHS2, REACH | |
The RT range is Gardasoft’s latest generation of LED lighting controller solutions for machine vision applications. Implementing our patented SafePower™ technology, installation is very easy, removing the need of having to use a bespoke DC power supply or heat sinking the controller. All RT models also include our SafeSense™ technology, which enables the safe overdriving of LEDs. To get the very best out of your LED lighting solution, in terms of brightness stability and control, lighting should be driven from a current source, not a nominal voltage supply. The Gardasoft pulse / strobe controllers are current sources, with the RT200 controller range offering two output channels which are independently controlled.
The PP420 models can be quickly configured using our free software which can be downloaded from this page, or simply by accessing the controller via your internet browser; type in the IP address for the controller into your browser and you have full access to all of the parameters. If you are using a third party software package the PP420 has a simple command set that is detailed in the manual allowing easy communication. As with all Gardasoft products, all the settings are stored in non-volatile memory, and it will retain these settings even when the Ethernet connection is disconnected.
The RT range is Gardasoft’s latest generation of LED lighting controller solutions for machine vision applications. Implementing our patented SafePower™ technology, installation is very easy, removing the need of having to use a bespoke DC power supply or heat sinking the controller. All RT models also include our SafeSense™ technology, which enables the safe overdriving of LEDs. To get the very best out of your LED lighting solution, in terms of brightness stability and control, lighting should be driven from a current source, not a nominal voltage supply. The Gardasoft pulse / strobe controllers are current sources, with the RT200 controller range offering two output channels which are independently controlled.
The PP1600 models can be quickly configured using our free software which can be downloaded from this page, or for the PP1620 Ethernet enabled controller range simply by accessing the controller via your internet browser; type in the IP address for the controller into your browser and you have full access to all of the parameters. If you are using a third party software package the PP1600 range has a simple command set that is detailed in the manual allowing easy communication. As with all Gardasoft products, all the settings are stored in non-volatile memory, and it will retain these settings even when the Ethernet or RS232 connection is disconnected. Gardasoft Controllers are universally compatible with LED Vision lighting, from manufacturers such as CCS.
