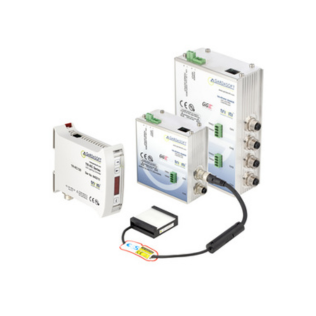

Gardasoft TR Series LED Strobe Controllers

Gardasoft TR Series LED Controllers are a core component of a triniti Intelligent Lighting system. triniti is a new enabling technology from Gardasoft, which provides expert control, operational intelligence and full integration of Machine Vision lighting – all within a ‘plug & play’ environment.

Key features:

1, 2 and 4 channel LED lighting controllers
Compatible with triniti Intelligent Lighting platform
GigE Vision compliant
Pulsing up to 20A
Continuous output to 3.0A
30W maximum output per channel
Pulse timing to 20µs
Ethernet and Push-button interfaces (dependent on model)

Triniti application benefits

Enables non-expert users to use expert Machine Vision lighting techniques
Revolutionises the integration of lighting parameters right through to application level software
Addresses the industry’s need for a flexible system that is readily ‘plug & play’
Provides a stability of brightness, long-term, that helps to enhance the reliability of Vision systems, over many years

Gardasoft Datasheet

Add to Proposal

Parameter	TR-RC12	TR-RC122	TR-RT220(F)-20 TR-RT220(F)-2	TR-RT420(F)-20 TR-RT420(F)-2
User interface	Ethernet and Pushbutton/Display		Ethernet
Output channel	One constant current output		Two independent constant current outputs	Four independent constant current outputs
Output current	Up to 1.2A continuous or 2.0A pulsed	Up to 1.25A continuous or 10.0A pulsed	Up to 3.0A per channel continuous or 20A pulsed (-20 model) Up to 2A continuous or pulsed (-2 model)
Output Power	Max 25W	Max 30W	Max 40W per unit	Max 50W per unit
Trigger input	One Smart input compatible with 3V-24V, TTL, NPN, and PNP. Input impedance (nom): 8Kohm		Two opto-isolated digital inputs. Require 3V-24V operation	Four opto-isolated digital inputs. Require 3V-24V operation
Pulse Timing	Standard versions
Pulse timing and Delay from trigger to pulse	Pulse 100µs to 100ms. Delay 2µs to 100ms For delay + pulse up to 900µs: steps of 100µs, repeatability 1µs For delay + pulse 900µs to 100ms: steps of 100µs, repeatability 100µs		Pulse 20µs to 1s. Delay 20µs to 1s For delay + pulse up to 900µs: steps of 20µs, repeatability 1µs For delay + pulse 900µs to 40ms: steps of 20µs, repeatability 6µs For delay + pulse > 40ms: steps of 100µs, repeatability 100µs
Switch mode latency	Maximum 100µs		Maximum 20µs
Pulse Timing	‘F’ versions
Pulse timing and Delay from trigger to pulse	n/a		Pulse 1µs to 1s. Delay 4µs to 1s For delay + pulse up to 900µs: steps of 1µs, repeatability 1µs For delay + pulse 900µs to 40ms: steps of 6µs, repeatability 6µs For delay + pulse > 40ms: steps of 100µs, repeatability 100µs
Switch mode latency	n/a		Maximum 4µs
Trigger rate	Maximum 100Hz		Maximum 1Khz
Output voltage	Up to 32V, continuous or pulsed	Up to 32V continuous, up to 48V pulsed	0V to 46V
Triniti interface	Gardasoft 4-wire Triniti lighting interface
Triniti communications interface	GigE Vision V2.0, GenICam, UDP/TCP, Third party protocols
Supply voltage	Regulated 24VDC±10%. A SELV power supply is required.		Regulated 24V to 48V. A SELV power supply is required.
Dimensions	101mm long x 35mm wide x 120mm high	101mm long x 60mm wide x 120mm high	112mm long x 97mm wide x 62mm high	159mm long x 97mm wide x 62mm high
Weight	175g	340g	300g	400g
Mounting	DIN rail mount		Panel mounting. DIN rail option
Operating temperature	-20°C to 50°C
Humidity	Up to 95% non-condensing
Standards	CE, RoHS
