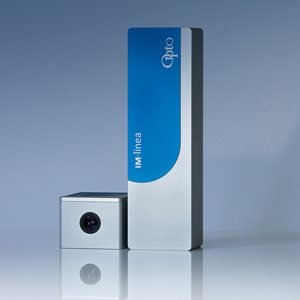

IM-linea M series is a miniaturised digital microscope in straight design.
In contrast to the IM-compact:
– the image fields are larger,
– the working distances are longer and
– no coaxial illumination is integrated.
These modules are ideally suited for machine integration.
– Robust aluminium design with various mounting options
– optimised image quality due to perfectly matched component selection
– one-cable concept (USB version)
– powerful plug & play imaging module incl. free control software
| Model | Interface | Chroma | Field of View (FoV) | Working Distance (WD) |
| IL10-00363CU0001 | USB3.1 | Color | 28.7x24 | 202 |
| IL10-00363MU0001 | USB3.1 | Monochrome | 28.7x24 | 202 |
| IL10-00462CU0001 | USB3.1 | Color | 24x18 | 202 |
| IL10-00462MU0001 | USB3.1 | Monochrome | 24x18 | 202 |
| IL10-01553CU0001 | USB3.1 | Color | 16.9x14.1 | 132 |
| IL10-01553MU0001 | USB3.1 | Monochrome | 16.9x14.1 | 132 |
| IL10-01652CU0001 | USB3.1 | Color | 14.1x10.6 | 132 |
| IL10-01652MU0001 | USB3.1 | Monochrome | 14.1x10.6 | 132 |
| IL10-02743CU0001 | USB3.1 | Color | 11.3x9.4 | 99 |
| IL10-02743MU0001 | USB3.1 | Monochrome | 11.3x9.4 | 99 |
| IL10-02842CU0001 | USB3.1 | Color | 9.5x7.1 | 99 |
| IL10-02842MU0001 | USB3.1 | Monochrome | 9.5x7.1 | 99 |
| IL10-03743CU0001 | USB3.1 | Color | 9.3x7.7 | 87 |
| IL10-03743MU0001 | USB3.1 | Monochrome | 9.3x7.7 | 87 |
| IL10-03942CU0001 | USB3.1 | Color | 7.8x5.8 | 87 |
| IL10-03942MU0001 | USB3.1 | Monochrome | 7.8x5.8 | 87 |
The Opto IM•profiles are characterised by the U-shaped all-aluminium housing with a width of only 40mm.
They can be equipped with different optics and camera technology and thus function as:
– Transmitted light digital microscopes for transparent samples
– Profilometers with telecentric optics for process-integrated profile measurement
Advantages for the customer:
The Opto IM-compact M is characterised by the 90° angled all-aluminium housing with a width of only 40mm.
They can be equipped with different optics and camera technology and thus function as:
– USB/GigE reflected-light microscopes for opaque samples
– quality assurance vision sensors with coaxial and ring light illumination
– inverted digital microscopes with minimal height thanks to the angled design
– Plug & Play machine vision microscopes for demanding imaging tasks
The Opto IM-compact M is characterised by the 90° angled all-aluminium housing with a width of only 40mm.
They can be equipped with different optics and camera technology and thus function as:
– USB/GigE reflected-light microscopes for opaque samples
– quality assurance vision sensors with coaxial and ring light illumination
– inverted digital microscopes with minimal height thanks to the angled design
– Plug & Play machine vision microscopes for demanding imaging tasks
IM-linea M series is a miniaturised digital microscope in straight design.
In contrast to the IM-compact:
– the image fields are larger,
– the working distances are longer and
– no coaxial illumination is integrated.
These modules are ideally suited for machine integration.
– Robust aluminium design with various mounting options
– optimised image quality due to perfectly matched component selection
– one-cable concept (USB version)
– powerful plug & play imaging module incl. free control software
