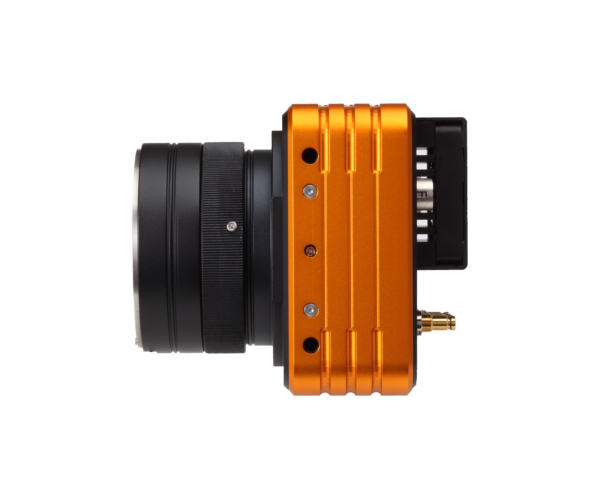

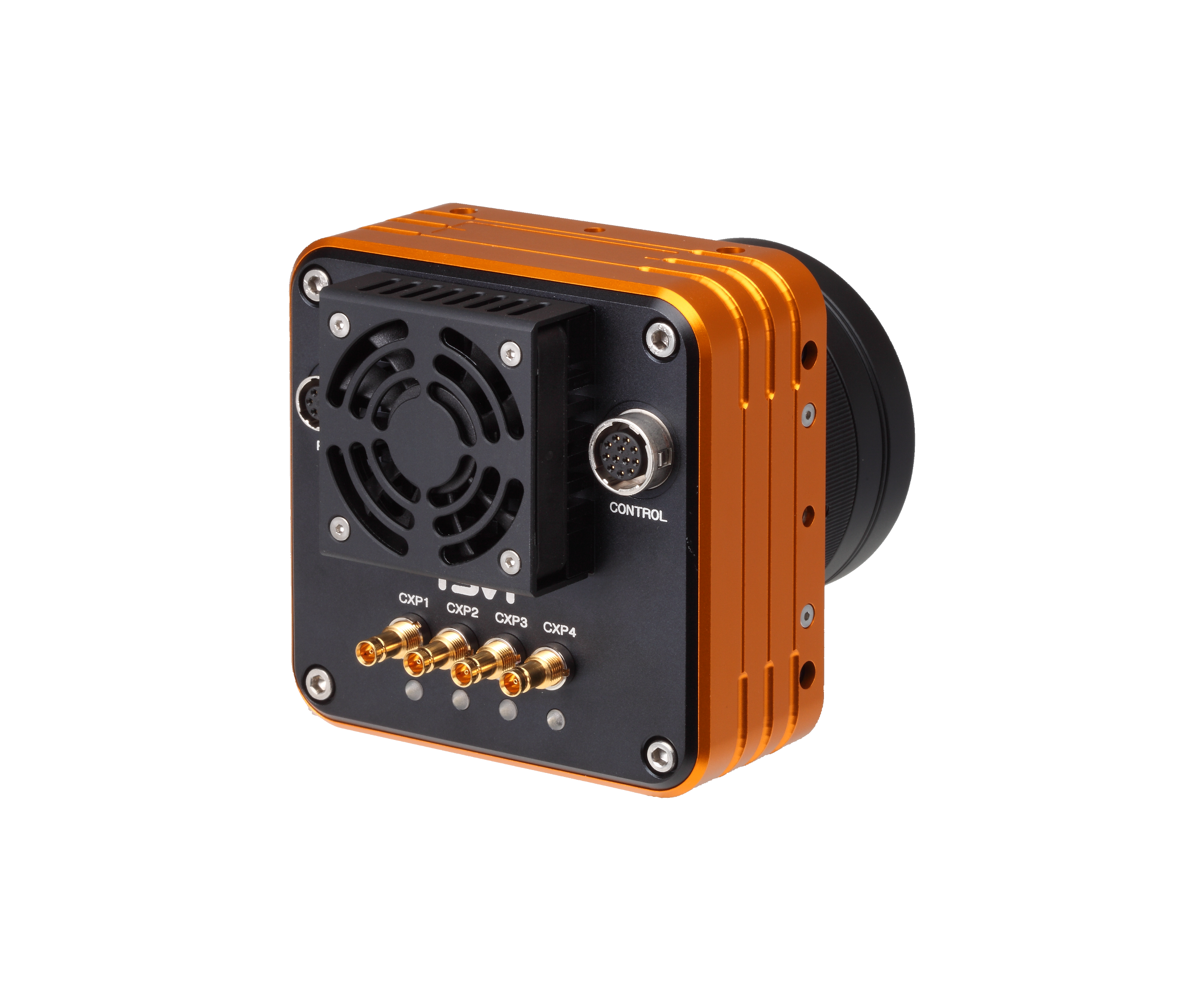

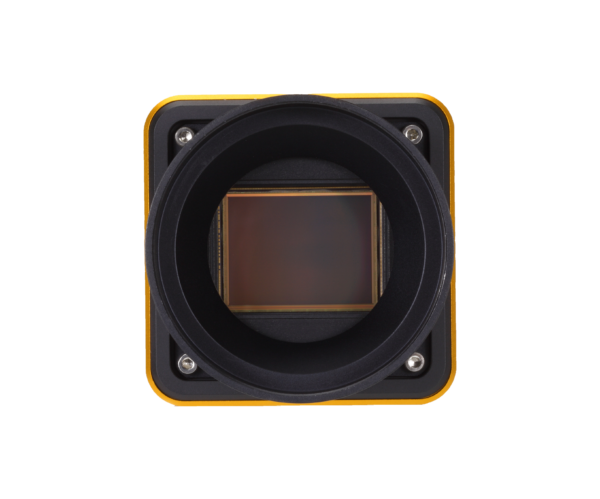

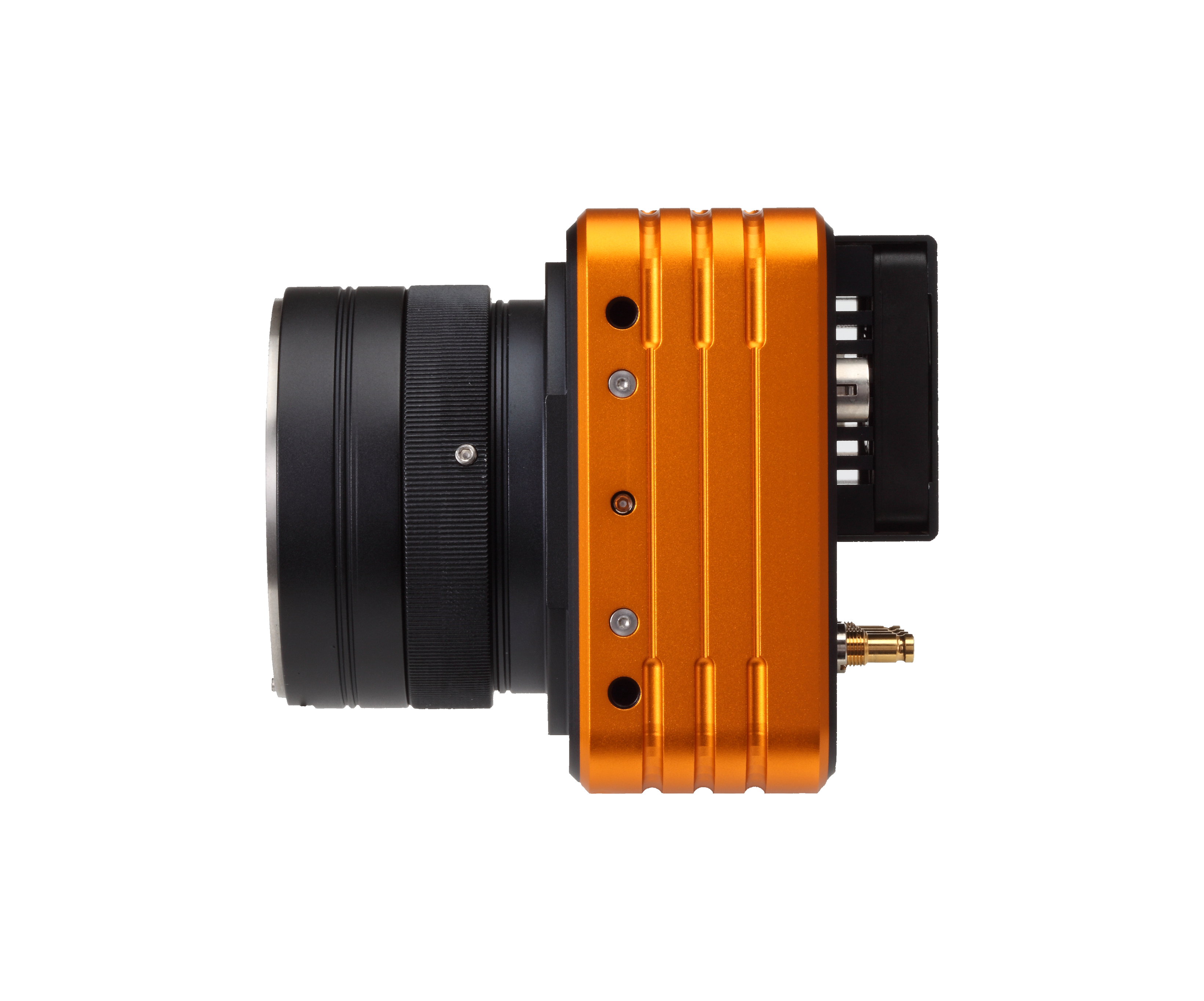

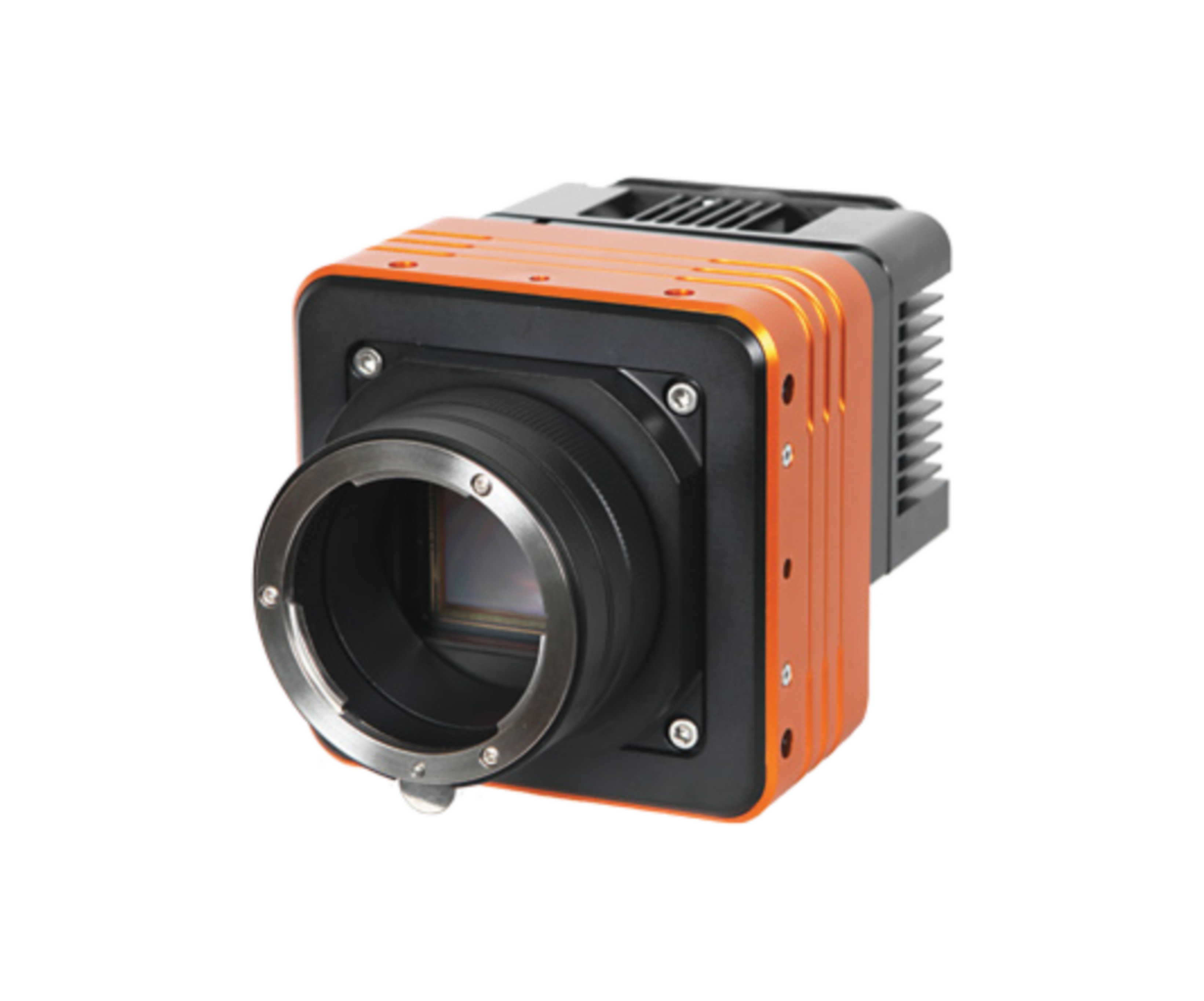

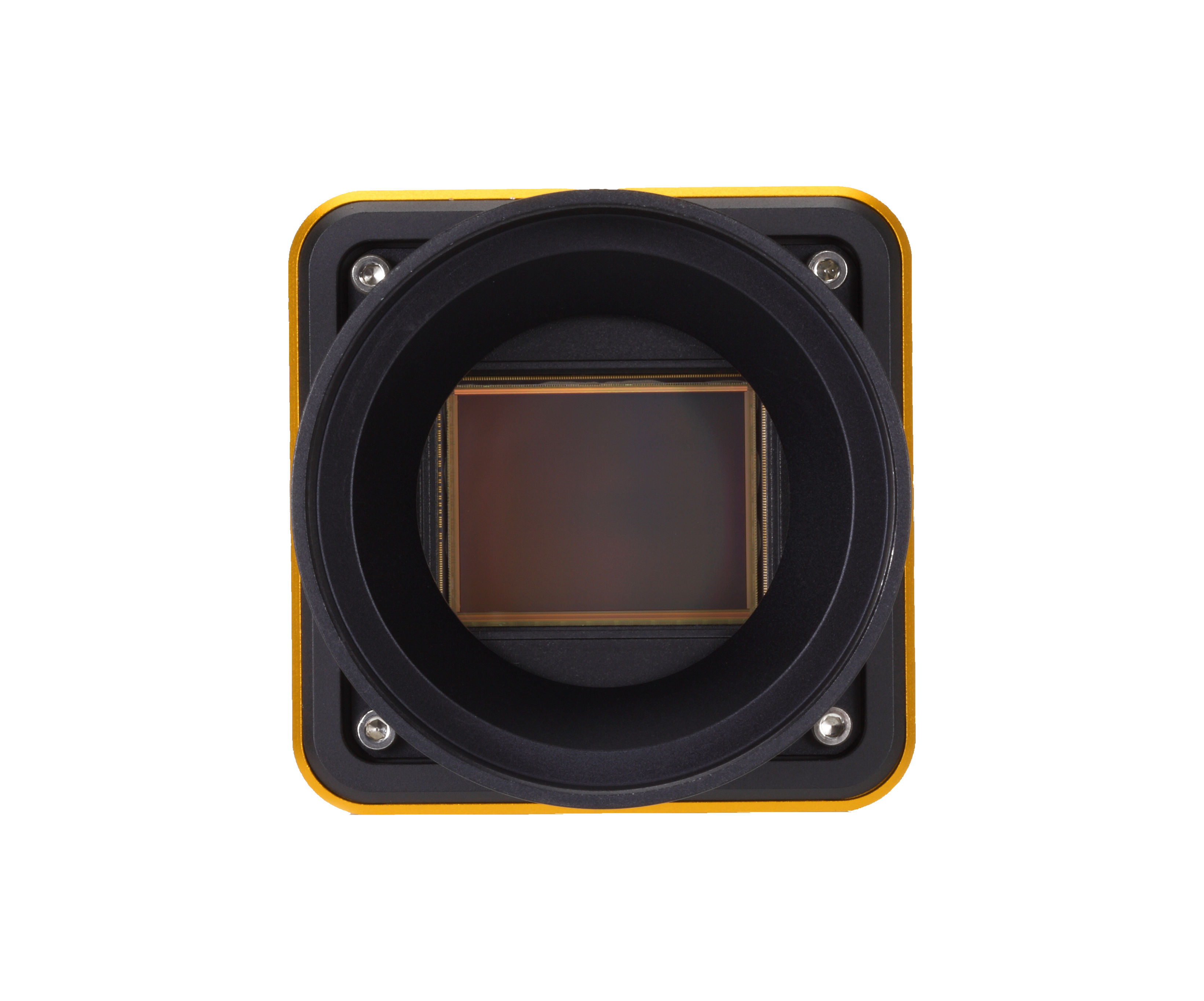

Winner of the prestigious Vision Systems and Design Magazine’s Innovators Award 2018, the IC-X50T-CXP mono and color versions showcase ISVI’s expertise in leading-edge camera design.
Key Features:
Properties of light that are invisible to humans can be made visible with cameras from SVS-Vistek. These cameras extend the standard industrial image processing system in terms of polarization planes or wavelengths from infrared to ultraviolet.
Wavelengths from infrared to ultraviolet enable invisible markings, the identification of materials and much more. Properties of light such as polarization facilitate industrial inspection in many industrial applications with non-metallic materials. We offer highly sensitive cameras for technical and biological applications.
Our EXO and FXO series SWIR cameras with SONY SenSWIR sensor offer outstanding performance and precision to meet the most demanding industrial applications.
Whether for quality control, material analysis or scientific research – our UV technology opens up new possibilities for you and increases the efficiency of your processes.
Our polarized industrial cameras set new standards in industrial image processing by offering the unique ability to filter reflected light and thus make hidden details visible.
All of our special cameras for invisible properties of light are based on the proven camera concepts of the EXO series and the FXO series. While the EXO covers the established GigE Vision and USB3 Vision interfaces, the FXO series can provide the highest frame rates with its high-speed 10GigE and CoaXPress-12 interfaces.
A close thermal connection of the low-power optimized electronics and the sensor to the housing enables operating temperatures of up to 60°C. The integrated power I/O interface enables simple control tasks to be performed with hardware precision via the PLC functionality. Up to 4 LED lights can be controlled directly without additional drivers, ideal for the identification of materials. All Beyond Visible cameras from SVS-Vistek have the following features: Region of Interest (ROI), logical trigger functions (PLC) with programmable timers, sequencers and logic, electrical and optical inputs are specified with TTL-24V.
Key Features:
The HR series combines high-resolution image sensors with powerful machine vision interfaces. With state-of-the-art interfaces, the HR achieves data rates of up to 50 Gbit/s and resolutions of up to 122 MP.
The 10GigE version also offers a world first: thermoelectric cooling/heating and an innovative ventilation system ensure an absolutely stable sensor temperature and therefore excellent image quality.
The HR series, equipped with state-of-the-art 10GigE interface and resolutions up to 65 MP, sets new standards in terms of speed, reliability, and flexibility. Thanks to the brand new TEC technology in the -T versions, these HR cameras deliver an unbeatable stable image even at fluctuating temperatures.
The HR CXP-6 and CXP-12 cameras are equipped with the latest CoaXPress technology, which enables lightning-fast data transfer speeds of up to 12.5 Gbps per channel. This not only ensures seamless integration into existing systems, but also the ability to capture and process high-resolution images in real time.
The HR series with Camera Link Interface combines the advantages of this interface, the performance, with safe and easy handling.
HR series cameras combine high resolutions with high data rates. The elaborately designed solid housing ensures excellent temperature management, which guarantees stable operation even with large sensors. The HR series is ideally equipped with the latest machine vision interfaces (10GigE Vision, Camera Link, CoaXPress).
High-resolution sensors require special care when adjusting the homogeneity of the image. Shading correction for demanding optical tasks and user-defined Defect Pixel Correction ensure outstanding linearity, homogeneity and low noise.
The M58 lens thread was designed so that almost all lenses can be connected using appropriate adapters (F-mount and EF-mount) and can be optimally adapted to your imaging task.
The IO concept offers programmable IO logic, sequencer, timer, SafeTrigger and an integrated 4-channel LED flash controller. The controller integrated in the GenICam tree of the camera can be controlled via any GenICam application (e.g. HALCON, MERLIC, MatLab, VisionPro) or the SV-Capture from the SVS-Vistek SDK.
The high resolution enables an extremely wide field of view and makes the HR series ideal for applications such as optical metrology, quality control and monitoring of large areas. The HR is available with 10GigE, CoaXPress or Camera Link interface.
Key Features:
