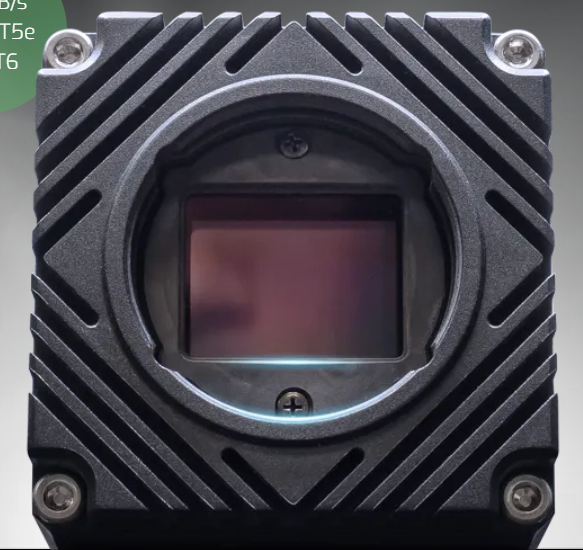

The Atlas 5GigE industrial camera streams at 600 MB/s (5Gbps/5GigE), allowing for high resolutions and fast frame rates over standard CAT5e / CAT6 cables up to 100 meters. It features a TFL lens mount (M35) for high-resolution models, C mount Pregius S models, and IP67 models with dust and water protection.
| Models | MP | Resolution | FPS | Sensor | Format | Pixel Size | Shutter | Lens Mount | Chroma | GigE Vision Interface |
|---|---|---|---|---|---|---|---|---|---|---|
| ATL314S | 31.4 MP | 6464 x 4852 px | 17.9 fps | Sony IMX342 CMOS | APS-C 27.9mm | 3.45 µm | Global | TFL (M35 x 0.75) / No Mount | Mono / Color | 5GBASE-T, M12 |
| ATL196S | 19.6 MP | 4416 x 4428 px | 27.9 fps | Sony IMX367 CMOS | 4/3" 21.7mm | 3.45 µm | Global | TFL (M35 x 0.75) | Mono / Color | 5GBASE-T, M12 |
| ATL168S | 16.8 MP | 5456 x 3076 px | 32.9 fps | Sony IMX387 CMOS | 4/3" 21.6mm | 3.45 µm | Global | TFL (M35 x 0.75) | Mono / Color | 5GBASE-T, M12 |
| ATL120S | 12.3 MP | 4096 x 3000 px | 42.5 fps | Sony IMX253 CMOS | 1.1" | 3.45 µm | Global | C-mount | Mono / Color | 5GBASE-T, M12 |
| ATL089S | 8.9 MP | 4096 x 2160 px | 58.5 fps | Sony IMX255 CMOS | 1" | 3.45 µm | Global | C-mount | Mono / Color | 5GBASE-T, M12 |
| ATL071S | 7.1 MP | 3208 x 2200 px | 74.6 fps | Sony IMX420 CMOS | 1.1" | 4.5 µm | Global | C-mount | Mono / Color | 5GBASE-T, M12 |
| ATL050S | 5.0 MP | 2448 x 2048 px | 98 fps | Sony IMX250 CMOS | 2/3" | 3.45 µm | Global | C-mount | Mono / Color | 5GBASE-T, M12 |
| ATL028S | 2.8 MP | 1936 x 1464 px | 173 fps | Sony IMX421 CMOS | 2/3" | 4.5 µm | Global | C-mount | Mono / Color | 5GBASE-T, M12 |
| Models | MP | Resolution | FPS | Sensor | Format | Pixel Size | Shutter | Lens Mount | Chroma | GigE Vision Interface |
|---|---|---|---|---|---|---|---|---|---|---|
| ATP245S | 24.5 MP | 5320 x 4600 px | 22.7 fps | Sony IMX540 CMOS | 4/3" | 2.74 µm | Global | C-mount | Mono / Color | 5GBASE-T, M12 |
| ATP204S | 20.4 MP | 4504 x 4504 px | 27.3 fps | Sony IMX541 CMOS | 1.1" | 2.74 µm | Global | C-mount | Mono / Color | 5GBASE-T, M12 |
| ATP200S | 20 MP | 5472 x 3648 px | 17.9 fps | Sony IMX183 CMOS | 1" | 2.40 µm | Rolling | C-mount | Mono / Color | 5GBASE-T, M12 |
| ATP162S | 16.2 MP | 5320 x 3032 px | 34.4 fps | Sony IMX542 CMOS | 1.1" | 2.74 µm | Global | C-mount | Mono / Color | 5GBASE-T, M12 |
| ATP124S | 12.3 MP | 4096 x 3000 px | 45.2 fps | Sony IMX545 CMOS | 1/1.1" | 2.74 µm | Global | C-mount | Mono / Color | 5GBASE-T, M12 |
| ATP120S | 12.3 MP | 4096 x 3000 px | 42.5 fps | Sony IMX253 CMOS | 1.1" | 3.45 µm | Global | C-mount | Mono / Color | 5GBASE-T, M12 |
| ATP089S | 8.9 MP | 4096 x 2160 px | 58.5 fps | Sony IMX255 CMOS | 1" | 3.45 µm | Global | C-mount | Mono / Color | 5GBASE-T, M12 |
| ATP081S | 8.1 MP | 2840 x 2840 px | 68.8 fps | Sony IMX546 CMOS | 2/3″ | 2.74 µm | Global | C-mount | Mono / Color | 5GBASE-T, M12 |
| ATP071S | 7.1 MP | 3208 x 2200 px | 74.6 fps | Sony IMX420 CMOS | 1.1" | 4.5 µm | Global | C-mount | Mono / Color | 5GBASE-T, M12 |
| ATP051S | 5.0 MP | 2448 x 2048 px | 110 fps | Sony IMX547 CMOS | 1/1.8″ | 2.74 µm | Global | C-mount | Mono / Color | 5GBASE-T, M12 |
| ATP050S | 5.0 MP | 2448 x 2048 px | 98 fps | Sony IMX250 CMOS | 2/3" | 3.45 µm | Global | C-mount | Mono / Color | 5GBASE-T, M12 |
| ATP028S | 2.8 MP | 1936 x 1464 px | 173 fps | Sony IMX421 CMOS | 2/3" | 4.5 µm | Global | C-mount | Mono / Color | 5GBASE-T, M12 |
| Models | MP | Resolution | FPS | Sensor | Sensor Size | Pixel Size | Shutter | Cooling | Lens Mount | Chroma / Sensitivity range | Interface |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ATP013S-WC | 1.3 MP | 1280 x 1024 px | 84.9 fps | Sony IMX990 InGaAs | 1/2“ | 5 µm | Global | TEC1, Internal Heatsink | C | Mono, 400nm to 1700nm | M12 GigE Vision |
| ATP003S-WC | 0.3 MP | 640 x 512 px | 257 fps | Sony IMX991 InGaAs | 1/4“ | 5 µm | Global | TEC1, Internal Heatsink | C | Mono, 400nm to 1700nm | M12 GigE Vision |
The successful EXO series is the shining basis of the EXO Tracer. The Tracer comes with identical camera features and additionally with a fully functional lens control (focus, zoom, aperture). Lens mount is a Micro Four Thirds (MFT) mount, covering all electric connections. Due to the size of the MFT Bayonet, the Tracer is a bit larger than the original EXO in dimensions. Still, the excellent thermal concept of the EXO qualifies for a operating temperature of up to 60°C.
All MFT lenses feature a specific beam geometry on the sensor side of the lens, which works in perfect harmony to sensors between 2/3″ and 1.2″. A nearly perfect flatfield is the compelling result. Together with up to 72dB dynamic range and up to 20 MP resolution, the Tracer delivers excellent image quality with its highly sensitive sensors.
The lens properties are integrated into the camera’s GenICam 3.0 tree, any GenICam-driven software is immediately able to use lens control without additional drivers. Same thing is valid for the integrated LED strobe control: All items adjustable via GenICam properties. This permits effortless and quick machine vision integration.
Tests at SVS-Vistek showed a surprising high repeatability of the lenses, even after 1 Mio focus cycles. Focus and zoom times are similar to what you know from lenses in photography.
When the machinery does not need to be connected directly to the camera the ECO series is also available in PoE (Power over Ethernet) Versions. This simplifies the installation as there is only need for a single cable.
10 GigE and Dual GigE Vision are the most easy way to profit of high interface bandwidth together with the advantages of standard networking technologies. An advantage is the reliable, cost-effective transmission of the image data over a distance of more than 100 m with standard network technology. The 10GigE and GigE cameras of the HR series impress with their housing concept, the wide-range lenses and the unique picture quality. The clean design according to well established standards like GigE Vision, 10 GigE Vision and GenICam ensure rapid integration into the final application.
Polarized cameras are equipped with special image sensors and measure the polarization properties of light that are imperceptible to the human eye. The degree of polarization and the planes of polarization can be determined from a single image. Global shutter, high resolution, high optical dynamic range and high frame rate allow detailed structural analysis of even moving objects.
Despite the special sensors, the EXO Polarized is a standard industrial camera for use with standard lenses. The integrated 4-channel strobe controller supports complex lighting and analysis setups.
