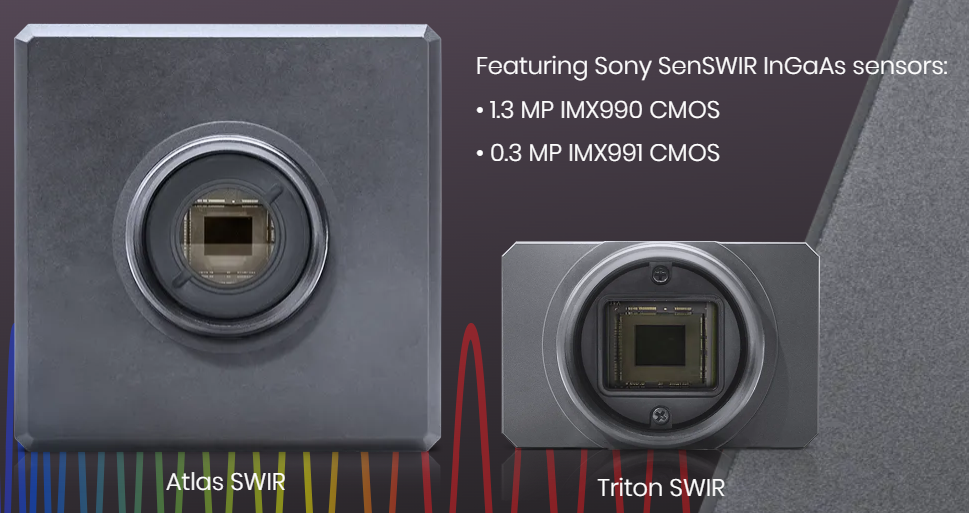

The Atlas SWIR is a Factory Tough IP67 camera with high-performance sensor cooling designed to provide reliable operation and consistent imaging performance within -20 to 50°C industrial environments. The Atlas is equipped with an integrated single-stage thermoelectric sensor cooling (TEC1), along with an internal heatsink and larger camera case resulting in a constant 15°C sensor temperature for low dark current during streaming. For an in-depth look at model specifications please click the part numbers below.
The Triton SWIR provides the same Factory Tough IP67 features as the Atlas SWIR but does not include the internal cooling components. The Triton does not contain a TEC1 cooling device or a large internal heatsink. This allows the camera to be more compact and cost-effective, however, users must manage their own cooling solution for the camera to regulate increased dark current during operation. This camera is intended for those who want maximum design flexibility and control over their own thermal management design. For an in-depth look at model specifications please click the part numbers below.
| Models | MP | Resolution | FPS | Sensor | Sensor Size | Pixel Size | Shutter | Cooling | Lens Mount | Chroma / Sensitivity range | Interface |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ATP013S-WC | 1.3 MP | 1280 x 1024 px | 84.9 fps | Sony IMX990 InGaAs | 1/2“ | 5 µm | Global | TEC1, Internal Heatsink | C | Mono, 400nm to 1700nm | M12 GigE Vision |
| ATP003S-WC | 0.3 MP | 640 x 512 px | 257 fps | Sony IMX991 InGaAs | 1/4“ | 5 µm | Global | TEC1, Internal Heatsink | C | Mono, 400nm to 1700nm | M12 GigE Vision |
| Models | MP | Resolution | FPS | Sensor | Sensor Size | Pixel Size | Shutter | Cooling | Lens Mount | Chroma / Sensitivity range | Interface |
|---|---|---|---|---|---|---|---|---|---|---|---|
| TRI013S-WC | 1.3 MP | 1280 x 1024 px | 84.9 fps | Sony IMX990 InGaAs | 1/2“ | 5 µm | Global | None | C | Mono, 400nm to 1700nm | M12 GigE Vision |
| TRI003S-WC | 0.3 MP | 640 x 512 px | 257 fps | Sony IMX991 InGaAs | 1/4“ | 5 µm | Global | None | C | Mono, 400nm to 1700nm | M12 GigE Vision |
Camera Link offers high data rates, deterministic timing and very direct access to the image sensor. Our high resolution industrial cameras with Camera Link provide a wide range of core features:
Camera Link permits settings and operating modes that are not available with other interfaces:
Matrox® Indio provides the industrial I/O and communication capabilities to turn any PC running Matrox Imaging vision software into a genuine vision controller. It provides discrete inputs and outputs managed in hardware for the real-time synchronization of a vision application with automation devices. It also provides Gigabit Ethernet connectivity for interfacing with programmable logic/automation controllers or GigE Vision® cameras equipped for Power-over-Ethernet (PoE).
The successful EXO series is the shining basis of the EXO Tracer. The Tracer comes with identical camera features and additionally with a fully functional lens control (focus, zoom, aperture). Lens mount is a Micro Four Thirds (MFT) mount, covering all electric connections. Due to the size of the MFT Bayonet, the Tracer is a bit larger than the original EXO in dimensions. Still, the excellent thermal concept of the EXO qualifies for a operating temperature of up to 60°C.
All MFT lenses feature a specific beam geometry on the sensor side of the lens, which works in perfect harmony to sensors between 2/3″ and 1.2″. A nearly perfect flatfield is the compelling result. Together with up to 72dB dynamic range and up to 20 MP resolution, the Tracer delivers excellent image quality with its highly sensitive sensors.
The lens properties are integrated into the camera’s GenICam 3.0 tree, any GenICam-driven software is immediately able to use lens control without additional drivers. Same thing is valid for the integrated LED strobe control: All items adjustable via GenICam properties. This permits effortless and quick machine vision integration.
Tests at SVS-Vistek showed a surprising high repeatability of the lenses, even after 1 Mio focus cycles. Focus and zoom times are similar to what you know from lenses in photography.
The high resolution SHR series offers outstanding image quality. This is made possible by the excellent physical characteristics of large pixels in large format sensors. The thermally highly optimized housing guarantees highest optical precision. The large M72 lens mount (FFD 19,55) can be adapted to any lens.
Highlights of the SHR series (some features only on some models)
10 GigE interface
The economical high-performance 10 GigE interface offers high data transfer speeds of up to 1.1 GB/s for these large images. A special frame grabber is not required.
