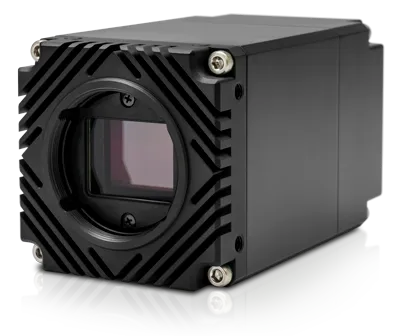

The perfect combination – fast 10 Gigabit Ethernet with Power over Ethernet (PoE) paired with Sony’s 4th generation Pregius S CMOS sensors, the Atlas10 improves simplicity and brings performance for high speed applications to new levels. All Atlas10 10GigE cameras are actively sensor aligned for maximum optical performance. The Atlas10 models feature Sony’s 4th generation Pregius S global shutter CMOS sensors.
10 Gigabit Ethernet with Power over Ethernet (PoE) paired with Sony’s 4th generation Pregius-S CMOS sensors allows the Atlas10 to reach faster frame rates at high resolutions over a single cable. The 10GigE interface also allows Pregius-S sensors to run at high bit depths (10/12-bit ADC), helping to maximize image quality while still maintaining smooth frame rates. With the option to reduce the region of interest (ROI), along with binning and decimation options, users can unlock even higher frame rates on the Atlas10.
The Atlas10 UV 10GigE (10GBASE-T) PoE+ camera, featuring the high-sensitivity Sony UV 8.1 MP IMX487 sensor, is capable of capturing images across the ultraviolet (UV) light spectrum range (200 to 400nm). Utilizing Pregius S back-illuminated sensor technology the camera’s high sensitivity of the 200 to 400nm range opens up a world of industrial applications with greater precision in transparent materials (plastic and PET), semiconductor inspection, material sorting and more.
| Model | MP | Resolution | FPS | Sensor | Format | Pixel Size | Shutter | Lens Mount | Chroma | Interface |
|---|---|---|---|---|---|---|---|---|---|---|
| ATX470S | 47.0 MP | 8192 x 5556 px | 22.5 fps | Sony IMX492 CMOS | 1.4" | 2.315 µm | Rolling | TFL (M35 x 0.75) | Mono / Color | 10GBASE-T, M12 |
| ATX245S | 24.5 MP | 5320 x 4600 px | 45.4 fps | Sony IMX530 CMOS | 4/3" | 2.74 µm | Global | TFL / C-Mount | Mono / Color | 10GBASE-T, M12 |
| ATX204S | 20.4 MP | 4504 x 4504 px | 54.1 fps | Sony IMX531 CMOS | 1.1" | 2.74 µm | Global | C-Mount | Mono / Color | 10GBASE-T, M12 |
| ATX162S | 16.2 MP | 5320 x 3032 px | 76.1 fps | Sony IMX532 CMOS | 1.1" | 2.74 µm | Global | C-Mount | Mono / Color | 10GBASE-T, M12 |
| ATX124S | 12.3 MP | 4096 x 3000 px | 89.7 fps | Sony IMX535 CMOS | 1/1.1″ | 2.74 µm | Global | C-Mount | Mono / Color | 10GBASE-T, M12 |
| ATX081S | 8.1 MP | 2840 x 2840 px | 136.7 fps | Sony IMX536 CMOS | 2/3″ | 2.74 µm | Global | C-Mount | Mono / Color | 10GBASE-T, M12 |
| ATX051S | 5.0 MP | 2448 x 2048 px | 205 fps | Sony IMX537 CMOS | 1/1.8 | 2.74 µm | Global | C-Mount | Mono / Color | 10GBASE-T, M12 |
| Model | MP | Resolution | FPS | Sensor | Format | Pixel Size | Shutter | Lens Mount | Chroma | Interface |
|---|---|---|---|---|---|---|---|---|---|---|
| ATX081S-UC | 8.1 MP | 2840 x 2840 px | 136.8 fps | Sony IMX487 CMOS | 2/3″ | 2.74 µm | Global | C-Mount | Mono (UV + VIS) | 10GBASE-T, M12 |
The successful EXO series is the shining basis of the EXO Tracer. The Tracer comes with identical camera features and additionally with a fully functional lens control (focus, zoom, aperture). Lens mount is a Micro Four Thirds (MFT) mount, covering all electric connections. Due to the size of the MFT Bayonet, the Tracer is a bit larger than the original EXO in dimensions. Still, the excellent thermal concept of the EXO qualifies for a operating temperature of up to 60°C.
All MFT lenses feature a specific beam geometry on the sensor side of the lens, which works in perfect harmony to sensors between 2/3″ and 1.2″. A nearly perfect flatfield is the compelling result. Together with up to 72dB dynamic range and up to 20 MP resolution, the Tracer delivers excellent image quality with its highly sensitive sensors.
The lens properties are integrated into the camera’s GenICam 3.0 tree, any GenICam-driven software is immediately able to use lens control without additional drivers. Same thing is valid for the integrated LED strobe control: All items adjustable via GenICam properties. This permits effortless and quick machine vision integration.
Tests at SVS-Vistek showed a surprising high repeatability of the lenses, even after 1 Mio focus cycles. Focus and zoom times are similar to what you know from lenses in photography.
The FXO stands for excellent image quality. The fast CoaXPress-12 interface gives the camera outstanding properties in terms of trigger latency and constant data rate.
An excellent, low-noise image with high dynamics is complemented by a comprehensive feature set. The Sony Pregius S sensors used are characterized by high light sensitivity and best homogeneity. Signal voltages, temperature resistance, I/O control, integrated strobe controller and firmware features are geared towards applications in demanding industrial automation.
Technical highlights:
ECO-4IO cameras are master in LED illumination and communication and can control the timing for illumination precisely. 4 power outputs and 4 inputs (0-24 Volt) provide a maximum of control. Each output can be configured separately to fit the task and type of illumination. Together with a fully programmable sequencer, new possibilities are made available for your applications.
The EXO is one of the most flexible and scalable cameras for the industrial market segment. The USB3 Vision interface is easy to integrate in your system, with a data rate up to effective 360 MB/sec. Single cable interface for power an data reduces cable complexity. integrated multi channel GenICam LED light controller provides currents up to 3 A. EXO provides Plug-and-play capability for the whole range of 2.3 to 31 MP resolution.
