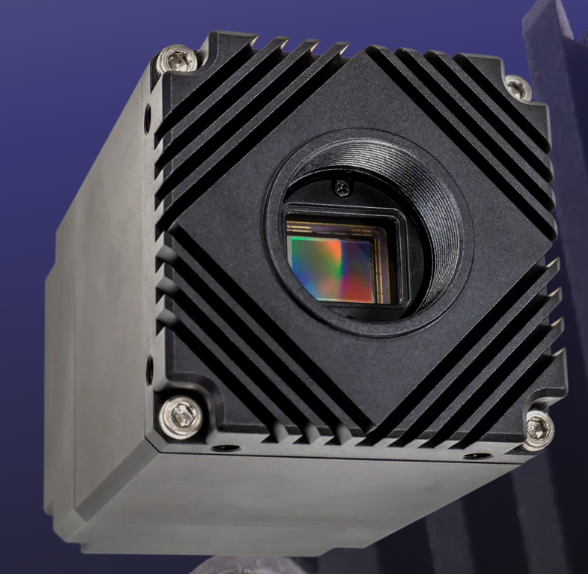

The Atlas10 UV 10GigE (10GBASE-T) PoE+ camera, featuring the high-sensitivity Sony UV 8.1 MP IMX487 sensor, is capable of capturing images across the ultraviolet (UV) light spectrum range (200 to 400nm). Utilizing Pregius S back-illuminated sensor technology the camera’s high sensitivity of the 200 to 400nm range opens up a world of industrial applications with greater precision in transparent materials (plastic and PET), semiconductor inspection, material sorting and more.
| Model | MP | Resolution | FPS | Sensor | Format | Pixel Size | Shutter | Lens Mount | Chroma | Interface |
|---|---|---|---|---|---|---|---|---|---|---|
| ATX081S-UC | 8.1 MP | 2840 x 2840 px | 136.8 fps | Sony IMX487 CMOS | 2/3″ | 2.74 µm | Global | C-Mount | Mono (UV + VIS) | 10GBASE-T, M12 |
10 GigE and Dual GigE Vision are the most easy way to profit of high interface bandwidth together with the advantages of standard networking technologies. An advantage is the reliable, cost-effective transmission of the image data over a distance of more than 100 m with standard network technology. The 10GigE and GigE cameras of the HR series impress with their housing concept, the wide-range lenses and the unique picture quality. The clean design according to well established standards like GigE Vision, 10 GigE Vision and GenICam ensure rapid integration into the final application.
EXO series cameras with GigE Vision interface gives your applications an extreme scalability. Quick and easy hardware interchangeability results in shorter design cycles and reduced development costs. Further value is added to your application by a virtually limitless feature set. As an example, the 4IO LED driver with standardized software control.
Our ultraviolet cameras are based on the proven design of the FXO series. The fast CoaXPress-12 interface provides outstanding performance in terms of ultra-low trigger latency, faster frame rate and constant data rate. The 10GigE interface option is an economical, highly stable alternative with advantages for long data lines up to 100m. Sony Pregius UV sensors combine high resolution, high dynamic range and superior sensitivity in the wavelength range of 200 – 400 nm.
Our ultraviolet cameras are optimized for deployment in industrial automation processes thanks to advanced signal voltages, temperature stability, I/O control, integrated strobe controller, and feature-rich firmware.
Technical highlights:
ECO-4IO cameras are master in LED illumination and communication and can control the timing for illumination precisely. 4 power outputs and 4 inputs (0-24 Volt) provide a maximum of control. Each output can be configured separately to fit the task and type of illumination. Together with a fully programmable sequencer, new possibilities are made available for your applications.
