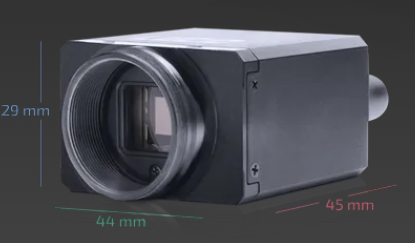

The Triton2 offers unprecendented performance in a cost-effective, compact camera. The adoption of a 2.5 GigE (300 MB/s) interface enables higher bandwith than 1 GigE cameras without compromising on size, thermal management, or Power over Ethernet (PoE) support.
| Model | MP | Resolution | FPS | Sensor | Format | Pixel Size | Shutter | Lens Mount | Chroma | Interface | Availability |
|---|---|---|---|---|---|---|---|---|---|---|---|
| TRT245S | 24.5 MP | 5320 x 4600 px | 11.5 fps | Sony IMX540 CMOS | 4/3" | 2.74 µm | Global | C | Mono / Color | 2.5GigE M12 | In Production |
| TRT204S | 20.4 MP | 4504 x 4504 px | 13.5 fps | Sony IMX541 CMOS | 1.1" | 2.74 µm | Global | C | Mono / Color | 2.5GigE M12 | Q1 2023 |
| TRT200S | 20.0 MP | 5472 x 3648 px | 9.0 fps | Sony IMX183 CMOS | 1" | 2.40 µm | Rolling | C | Mono / Color | 2.5GigE M12 | Q2 2023 |
| TRT162S | 16.2 MP | 5320 x 3040 px | 17.5 fps | Sony IMX542 CMOS | 1.1" | 2.74 µm | Global | C | Mono / Color | 2.5GigE M12 | Q1 2023 |
| TRT124S | 12.3 MP | 4096 x 3000 px | 22.5 fps | Sony IMX545 CMOS | 1/1.1" | 2.74 µm | Global | C | Mono / Color | 2.5GigE M12 | In Production |
| TRT081S | 8.1 MP | 2840 x 2840px | 34.5 fps | Sony IMX546 CMOS | 2/3″ | 2.74 µm | Global | C | Mono / Color | 2.5GigE M12 | Q1 2023 |
| TRT051S | 5.0 MP | 2448 x 2048px | 55.0 fps | Sony IMX547 CMOS | 1/1.8″ | 2.74 µm | Global | C | Mono / Color | 2.5GigE M12 | In Production |
The EXO is one of the most flexible and scalable cameras for the industrial market segment. The USB3 Vision interface is easy to integrate in your system, with a data rate up to effective 360 MB/sec. Single cable interface for power an data reduces cable complexity. integrated multi channel GenICam LED light controller provides currents up to 3 A. EXO provides Plug-and-play capability for the whole range of 2.3 to 31 MP resolution.
The successful EXO series is the shining basis of the EXO Tracer. The Tracer comes with identical camera features and additionally with a fully functional lens control (focus, zoom, aperture). Lens mount is a Micro Four Thirds (MFT) mount, covering all electric connections. Due to the size of the MFT Bayonet, the Tracer is a bit larger than the original EXO in dimensions. Still, the excellent thermal concept of the EXO qualifies for a operating temperature of up to 60°C.
All MFT lenses feature a specific beam geometry on the sensor side of the lens, which works in perfect harmony to sensors between 2/3″ and 1.2″. A nearly perfect flatfield is the compelling result. Together with up to 72dB dynamic range and up to 20 MP resolution, the Tracer delivers excellent image quality with its highly sensitive sensors.
The lens properties are integrated into the camera’s GenICam 3.0 tree, any GenICam-driven software is immediately able to use lens control without additional drivers. Same thing is valid for the integrated LED strobe control: All items adjustable via GenICam properties. This permits effortless and quick machine vision integration.
Tests at SVS-Vistek showed a surprising high repeatability of the lenses, even after 1 Mio focus cycles. Focus and zoom times are similar to what you know from lenses in photography.
Matrox® Indio provides the industrial I/O and communication capabilities to turn any PC running Matrox Imaging vision software into a genuine vision controller. It provides discrete inputs and outputs managed in hardware for the real-time synchronization of a vision application with automation devices. It also provides Gigabit Ethernet connectivity for interfacing with programmable logic/automation controllers or GigE Vision® cameras equipped for Power-over-Ethernet (PoE).
The SHR features low-noise half-frame CCD and CMOS images sensors with large pixels in a class of its own. State-of-the-art tap sensor balancing and user defined fixed pattern noise reduction guarantee outstanding image quality. The highest structural precision of the sensor adjustment in a massive housing make the SHR with its lens shading correction the ideal partner for the most demanding optical applications.
CoaXPress specific features
CoaXPress currently is the fastest standardized industrial solution for long-distance industrial cameras with thin cables. The industrial camera I/O interface facilitates integration.
