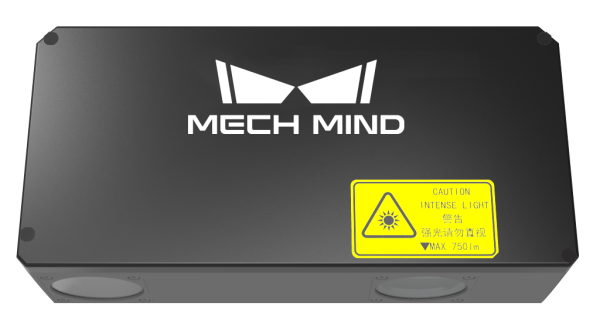

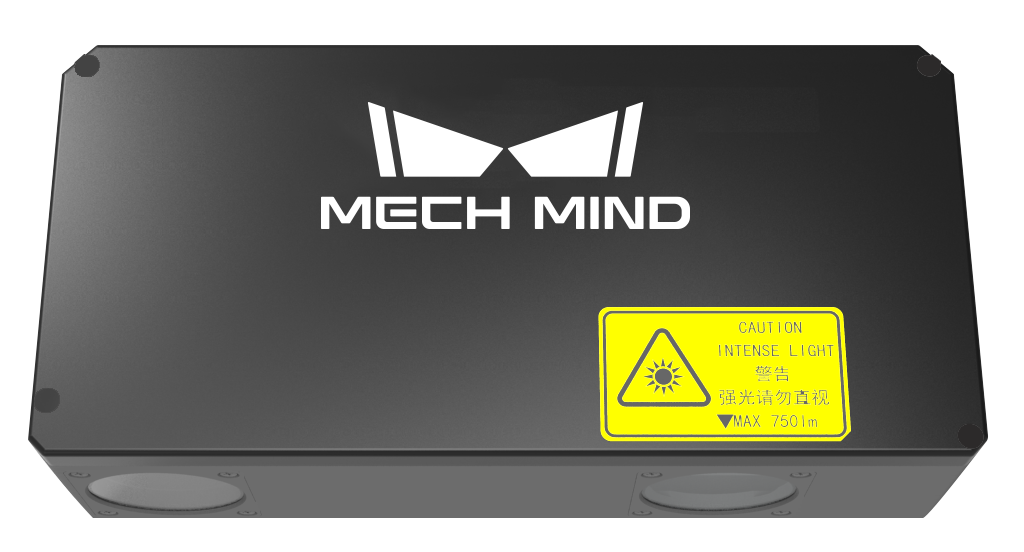

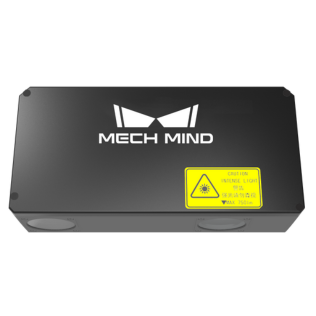

Mech-Eye Log S Industrial 3D Camera

Name: Mech-Eye Log S Industrial 3D Camera
SKU: 1211
Availability: InStock

Palm-sized with high-qualty 3D imaging. Ideal for precision-required on-arm robotic applications.

Fast acquisition | High Flexibility | Industrial suitability | Easy integration

Mech-Eye Log S can generate complete, detailed and accurate point cloud for objects with complex structures. High flexibility, well suited for demanding applications in space saving environment. Aluminium housing, fully enclosed, IP65, dust and water proof, vibration resistant, EMC/EMI approved. Suitable for industrial use, CE, FCC, VCCI & RoHS certified.

Specifications:

Optimal Working Distance: 500–1000 mm

Near FOV: 360 × 250 @ 0.5 m

Far FOV: 710 × 490 @ 1.0 m

Resolution: 1280 x 1024

Megapixels: 1.3 MP

Z Repeatability: 0.1 mm @ 1 m

VDI/VDE Accuracy: 0.2 mm @ 1 m

Typical Capture Time: 0.3–0.5 s

Baseline: About 150 mm

Dimensions: About 270 mm × 72 mm × 130 mm

Weight: About 2.2 kg

Operating Temperature: 0-45 ℃

Communication Interface: Gigabit Ethernet

Input: 24V DC, 3.75 A

Safety & EMC: CE/FCC/VCCI

Light Source: Blue LED (459 nm, RG2)

IP Rating: IP65

Cooling: Passive

Mech-Mind Datasheet

Add to Proposal

Model	Nano	UHP-140	Pro S	Pro M	LSR L	LSR S	Deep	Pro XS	Log S	Log M
Optimal Working Distance (mm)	300-600	300 ± 20	500–1000	1000–2000	1200–3000	500–1500	1200–3500	300–600	500–1000	800–2000
Near FOV (mm)	220 × 150 @ 0.3 m	135 × 90 @ 280 mm	370 × 240 @ 0.5 m	800 × 450 @ 1.0 m	1200 × 1000 @ 1.2 m	480 × 360 @ 0.5 m	970 × 1160 @ 1.2 m	220 × 160 @ 0.3 m	360 × 250 @ 0.5 m	520 × 390 @ 0.8 m
Far FOV (mm)	440 × 300 @ 0.6 m	150 × 100 @ 320 mm	800 × 450 @ 1.0 m	1500 × 890 @ 2.0 m	3000 × 2400 @ 3.0 m	1500 × 1200 @ 1.5 m	2830 × 3320 @ 3.5 m	430 × 320 @ 0.6 m	710 × 490 @ 1.0 m	1410 × 960 @ 2.0 m
Resolution	1280 × 1024	2048 × 1536	1920 × 1200	1920 × 1200	Depth Map: 2048 × 1536 RGB: 4000 x 3000 2000 x 1500	Depth Map: 2048 × 1536 RGB： 4000 x 3000 2000 x 1500	2048 × 1536	1280 × 1024	1280 × 1024	1280 × 1024
Megapixels (MP)	1.3 MP	3 MP	2.3 MP	2.3 MP	3 MP	3 MP	3 MP	1.3 MP	1.3 MP	1.3 MP
Z Repeatability	0.1 mm @ 0.5 m	2.6 μm @ 0.3m **Region : 0.09 μm @ 0.3 m	0.05 mm @ 1 m	0.2 mm @ 2 m	0.5 mm @ 3 m	0.2 mm @ 1.5 m	1.0 mm @ 3 m	0.1 mm @ 0.5 m	0.1 mm @ 1 m	0.3 mm @ 2 m
VDI/VDE Accuracy	0.1 mm @ 0.5 m	0.03 mm @ 0.3 m	0.1 mm @ 1 m	0.2 mm @ 2 m	1.0 mm @ 3 m	1.0 mm @ 1.5 m	3.0 mm @ 3m	0.1 mm @ 0.5 m	0.2 mm @ 1 m	0.3 mm @ 2 m
Typical Capture Time (s)	0.6–1.1	0.6–0.9	0.3–0.6	0.3–0.6	0.5–0.9	0.5–0.9	0.7–1.1	0.7–1.1	0.3–0.5	0.3–0.5
Baseline (mm)	About 68	About 80	About 180	About 270	About 380	About 140	About 400	About 93	About 150	About 280
Dimensions (mm)	About 145 × 51 × 85	About 260 × 65 × 142	About 265 × 57 × 100	About 353 × 57 × 100	About 459 × 77 × 86	About 222 × 77 × 126	About 481 × 98 × 145	About 160 × 52 × 87	About 270 × 72 × 130	About 387 × 72 × 130
Weight (kg)	About 0.7	About 1.9	About 1.6	About 1.9	About 2.9	About 1.8	About 4.3	About 0.8	About 2.2	About 2.4
Operating Temperature (℃)	0–45	0–45	0–45	0–45	-10–45	-10–45	0–45	0–45	0–45	0–45
Communication Interface	Gigabit Ethernet	Gigabit Ethernet	Gigabit Ethernet	Gigabit Ethernet	Gigabit Ethernet	Gigabit Ethernet	Gigabit Ethernet	Gigabit Ethernet	Gigabit Ethernet	Gigabit Ethernet
Input	24V DC,1.5 A	24V DC, 3.75 A	24V DC, 3.75 A	24V DC, 3.75 A	24V DC, 3.75 A	24V DC, 3.75 A	24V DC, 3.75 A	24V DC,1.5 A	24V DC, 3.75 A	24V DC, 3.75 A
Safety & EMC	CE/FCC/VCCI/ UKCA/KC/ISED /NRTL	CE/FCC/VCCI/ UKCA/KC/ISED /NRTL	CE/FCC/VCCI/ UKCA/KC/ISED /NRTL	CE/FCC/VCCI/ UKCA/KC/ISED /NRTL	CE/FCC/VCCI/ UKCA/KC/ISED /NRTL	CE/FCC/VCCI/ UKCA/KC/ISED /NRTL	CE/FCC/VCCI/ UKCA/KC/ISED /NRTL	CE/FCC/ VCCI	CE/FCC/ VCCI	CE/FCC/ VCCI
Light Source	Blue LED (459 nm, RG2)	Blue LED (459 nm, RG2)	Blue LED (459 nm, RG2)	Blue LED (459 nm, RG2)	Red laser (638 nm, Class 2)	Red laser (638 nm, Class 2)	Red laser (638 nm, Class 2)	Blue LED (459 nm, RG2)	Blue LED (459 nm, RG2)	Blue LED (459 nm, RG2)
IP Rating	IP65	IP65	IP65	IP65	IP65	IP65	IP65	IP65	IP65	IP65
Cooling	Passive	Passive	Passive	Passive	Passive	Passive	Passive	Passive	Passive	Passive
