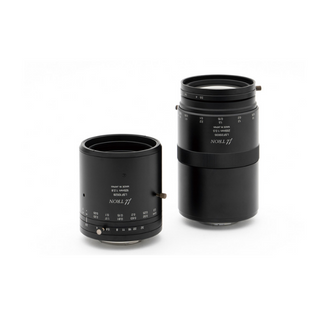

Myutron Line Sensor Lens – LSF Series (Long Focal High Resolution Lens for φ48mm)

Features:

Long focal distance, f105mm and f200mm
Suitable for 65 Mega Pixel, 50 Mega Pixel, and 31 Mega Pixel
Possible to use for small pixel size, 3.2μm
Magnification at MOD 0.3x
Stable performance at different WD by floating design
F, M58, and M42 mount are available

This product is already in your proposal request list.

Product Model	Magnification	∞ F No.	Focal Length	WD	TV distortion	Maximum Compatible sensor	Mount
LSF10528-F	0.3x	2.8	105mm	0.10%	0.10%	φ48mm	F
LSF20035-F	0.3x	3.5	200mm	0.14%	0.14%	φ48mm	F
