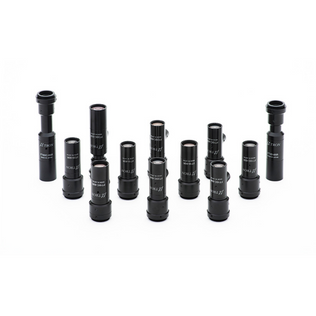

Myutron Telecentric Lens – FT Series (WD65 High NA Mega Pixel Telecentric Lens)

Features:

  • Mega Pixel telecentric lens for 2/3”
  • Suitable for 2 Mega Pixel – 5 Mega Pixel
  • High contrast with co-axial illumination
  • TV distortion less than 0.01%
  • R type is improved contrast and relative illumination




Model Magnification F No. Object side NA WD OI Depth of field Resolution TV distortion Maximum Compatible sensor

Mount

FT05-65R 0.5x 9.1 0.028 66mm 169.6mm 2.91mm 12.2μ 0.00% 2/3” C
FT08-65R 0.8x 9.5 0.042 65.8mm 150.3mm 1.19mm 8.0μ 0.00% 2/3” C
FT10-65R 1.0x 9.7 0.052 65.8mm 157.7mm 0.78mm 6.5μ 0.00% 2/3” C
FT15-65R 1.5x 10.6 0.071 65.5mm 156.9mm 0.38mm 4.7μ 0.00% 2/3” C
FT20-65R 2.0x 12.5 0.08 65.5mm 161.8mm 0.25mm 4.2μ 0.00% 2/3” C
FT30-65R 3.0x 12.5 0.12 65mm 186.2mm 0.11mm 2.8μ -0.01% 2/3” C
FT40-65R 4.0x 16 0.125 65mm 192mm 0.08mm 2.7μ -0.01% 2/3” C
FT60-65R 6.0x 24 0.125 65mm 207.7mm 0.05mm 2.7μ 0.00% 2/3” C
FT05C-65R 0.5x 9.1 0.028 65.5mm 169.6mm 2.91mm 12.2μ 0.00% 2/3” C
FT08C-65R 0.8x 9.5 0.042 65.8mm 150.3mm 1.19mm 8.0μ 0.00% 2/3” C
FT10C-65R 1.0x 9.7 0.052 65.8mm 157.7mm 0.78mm 6.5μ 0.00% 2/3” C
FT15C-65R 1.5x 10.6 0.071 65.5mm 156.9mm 0.38mm 4.7μ 0.00% 2/3” C
FT20C-65R 2.0x 12.5 0.08 65.5mm 161.8mm 0.25mm 4.2μ 0.00% 2/3” C
FT30C-65R 3.0x 12.5 0.12 65mm 186.2mm 0.11mm 2.8μ -0.01% 2/3” C
FT40C-65R 4.0x 16 0.125 65mm 192mm 0.08mm 2.7μ -0.01% 2/3” C
FT60C-65R 6.0x 24 0.125 65mm 207.7mm 0.05mm 2.7μ 0.00% 2/3” C
