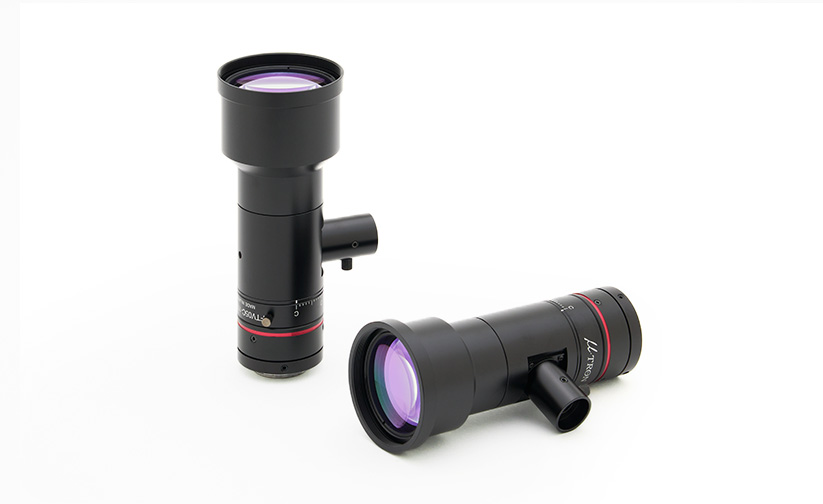

Myutron Telecentric Lens – FTV-SW Series

Features:

New line up for FTV-SWIR series : 0.5x and 0.7x
Suitable for Sony’s InGaAs SWIR sensor (1.3MP, 5μm/pixel)
Special design to transmit SWIR 950nm-1800nm
Possible to capture differences and defects that cannot be seen in visible ray

This product is already in your proposal request list.

Product Model	Magnification	WD	Maximum Compatible sensor
FTV05C-110SW	0.5×	116.4mm	1.1”
FTV07C-110SW	0.7×	116.0mm	1.1”
