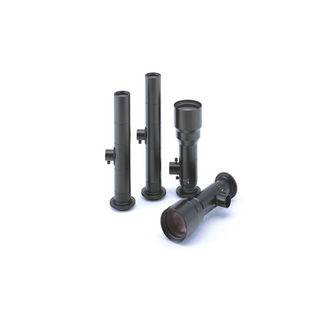

Myutron Telecentric Lens – TL Series (WD220 Built-in type Telecentric Lens)

Features:

High resolution and compact design
Suitable for various applications, alignment, inspection, measurement, etc..
Adjustable iris for 0.5x and 0.7x
Compatible with 3 Mega Pixel of 1/1.8”

This product is already in your proposal request list.

Model	Magnification	F No.	Object side NA	WD	OI	Depth of field	Resolution	TV distortion	Maximum Compatible sensor	Mount
TL05C-220	0.5x	6.79	0.037	220.5mm	355mm	2.17mm	9.1μ	0.02％	1/1.8”	C
TL07C-220	0.7x	9.50	0.037	220.5mm	365mm	1.55mm	9.1μ	0.02％	1/1.8”	C
TL10C-220	1x	13.35	0.037	222.5mm	384mm	1.07mm	9.0μ	0.00％	1/1.8”	C
TL20C-220	2x	26.42	0.038	222.5mm	400mm	0.53mm	8.8μ	0.04％	1/1.8”	C
