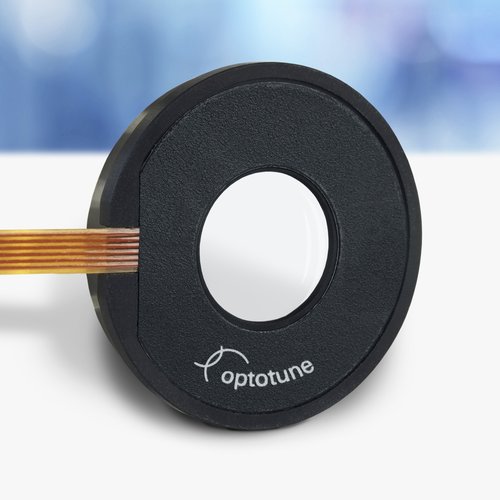

Building on customer feedback and learnings from over a decade, we are proud to present Optotune’s most effective liquid lens, the EL-12-30-TC. Redesigned from the ground up, it makes use of the latest materials and manufacturing technologies to provide best performance in a compact form-factor.
The tunable lens can be shaped from a flat zero-state into a plano-concave or plano-convex lens, resulting in a focal power range of -6 to +10 diopters (at -250 to +250mA).
The new lens design has been optimized for fast response times and low thermal sensitivity. Cover glasses are AR-coated for 420 to 950nm.
Key advantages:
Applications:
| Product Name | Description |
| EL-12-30-TC-VIS-16D |
|
The compact EL-3-10 lens is designed for OEM integration into optical systems for various applications. The working principle is based on the well-established shape-changing lens technology. The curvature of the lens is adjusted by applying an electrical current. Thereby, the focal length is tuned to a desired value within very few milliseconds. The lens architecture is “push pull” which means that the lens curvature is deflected from concave to convex. With actuators based on proven voice-coil technology, the EL-3-10 focus tunable lens is extremely reliable and robust, well suited even for applications in harsh environments over large temperature ranges.
Key advantages:
Applications:
| Dimensions (Ø x thickness) | 10 x 4 mm |
| Clear aperture | 3mm |
| Range of optical power (focal length) | -13 dpt (-77mm) to +13 dpt (+77mm) |
| Transmission wavelength (>94%) | 420 to 1600nm (VIS and NIR coating options) |
| Response time (10/90% step), settling time | 1, 4 ms |
| Wavefront error | <0.15/<0.15λ* |
| Operating temperature | -20 to 65°C |
* Wavefront error provided in λ RMS @525nm with optical axis vertical / horizontal
Design faster and more compact optical systems without complex mechanics using the electrically focus tunable lens EL-10-30-C. By applying a current of 0 to 300mA, the focal length of the 10 mm aperture lens can be tuned to a specific value within milliseconds. The EL-10-30-C features threads on either side for easy mounting as well as the possibility to replace the cover glass with a fixed focus offset lens, allowing for free adjustment of the focal length range according to the requirements of your application.
The EL-10-30-C has two main optical configurations:
The basic configuration has planar cover glasses and a focal power range of 5 to 10 dpt, making this the best choice for macro imaging.
The “MV” configuration is optimized for the most common machine vision applications. It contains a negative offset lens so that the over all focal power range range goes from -1.5 to 3.5 dpt, making it the ideal choice for combinations with infinity corrected objective lenses.
Applications:
Optotune has co-designed with its optics partners a series of lens modules developed around its electrically tunable lenses. This results in an optically optimized and integrated solution that simplifies the design of the vision system.
The ELM-F series consists of fixed focal length lenses specifically designed to accommodate Optotune’s electrically tunable lenses in the optical path. The series, which is in continuous expansion, currently supports S-mount and C-mount cameras up to a sensor size of 1.1” with focal lengths ranging from 5 to 300mm.
As a result of the optimization process, customers can benefit from:
Applications:
With a clear aperture of 16mm Optotune presents the world‘s largest electrically focus tunable lens bringing fast and reliable focus control to high end applications.
Based on the well-established shape-changing lens technology, the EL-16-40-TC can be shaped from a flat zero-state into a plano-concave or plano-convex lens, resulting in a focal tuning range of up to -10 to +10 diopters (at -250 to +250mA).
Response & settling times are 5 & 25ms, respectively, which is magnitudes faster than most mechanical alternatives. Thanks to the robust VCM actuated design the lens can run at high frequencies and performs reliably over billions of cycles.
The design was optimized to minimize thermal drift effects to as little as 0.02 dpt/°C and with the built in temperature sensor, an overall reproducibility of typically +/- 0.05 diopters is achievable.
Key advantages:
Applications:
