Features
-Single/multi camera use capabilities
-Simple setup
-GigE interface
-Easily integrates with Win/Linux/Android/ROS SDKs
-Low power consumption
Applications:
-FS820 : industrial sorting and grabbing, industrial measurement, and commercial applications
-FM851: industrial sorting, grabbing, industrial measurement and commercial applications of large-sized objects

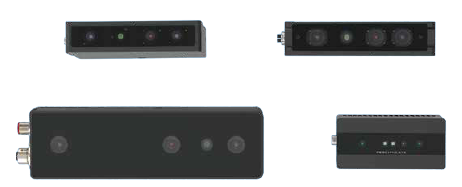

| Model | Max Frame Rate | Working Distance | FOV (H/V) | Z-axis Accuracy | XY-axis Accuracy | Depth Resolution | RGB Resolution | Data Interface | Power | IP Grade | Size | Weight | ||||
| FS820-E1 | 7 fps | 0.3m-1.4m | 66°/44° | 1.73mm@700mm | 2.36mm@700mm | 1280*800 | 1920*1080 | RJ45 | 2.8W ~ 3.9W | IP41 | 95mm*45mm*43mm | 228g | ||||
| FM851-E1 | 26 fps | 0.7m-6m | 58°/48° | 4.27mm@1500mm | 14.41mm@1500mm | 1280*960 | 1280*960 | M12 X-Code | 2.9W ~ 5.2W | IP65 | 140mm*31.9mm*96mm | 650g | ||||
| FM851-E2 | 26 fps | 0.7m-6m | 58°/48° | 4.27mm@1500mm | 14.41mm@1500mm | 1280*960 | 1280*960 | RJ45 | 2.9W ~ 5.2W | IP54 | 124mm*28.6mm*86.8mm | 410g | ||||
| FM853-E1 | 16 fps | 1.16m-7.9m | 62°/52° |
|
|
1280*960 | 2592*1944 | M12 A-Code | 5.3W ~ 7.7W | IP65 | 204.2mm*58mm*53mm | 977g |
Features
-Enhanced accuracy at greater depths
-Single/multi camera use capabilities
-Simple setup
-GigE interface (USB optional)
-Easily integrates with Win/Linux/Android/ROS SDKs
-Low power consumption
Applications:
-FM811-IX-E1: industrial measurement and commercial applications of different sizes objects, bin picking and unstack industrial applications
Palm-sized with high-qualty 3D imaging. Ideal for precision-required on-arm robotic applications.
Fast acquisition | High Flexibility | Industrial suitability | Easy integration
Mech-Eye LSR L can generate complete, detailed and accurate point cloud for objects with complex structures. High flexibility, well suited for demanding applications in space saving environment. Aluminium housing, fully enclosed, IP65, dust and water proof, vibration resistant, EMC/EMI approved. Suitable for industrial use, CE, FCC, VCCI & RoHS certified.
Specifications:
Optimal Working Distance: 500–1500 mm
Near FOV: 480 × 360 @ 0.5 m
Far FOV: 1500 × 1200 @ 1.5 m
Resolution: Depth Map：2048 × 1536, RGB：4000 x 3000 OR 2000 x 1500
Megapixels: 3.0 MP
Z Repeatability: 0.2 mm @ 1.5 m
VDI/VDE Accuracy: 1.0 mm @ 1.5 m
Typical Capture Time: 0.5–0.9 s
Baseline: About 140 mm
Dimensions: About 222 mm × 77 mm × 126 mm
Weight: About 1.8 kg
Operating Temperature: -10–45 ℃
Communication Interface: Gigabit Ethernet
Input: 24V DC,3.75 A
Safety & EMC: CE/FCC/VCCI/UKCA/KC/ISED/NRTL
Light Source: Red laser (638 nm, Class 2)
IP Rating: IP65
Cooling: Passive
Palm-sized with high-qualty 3D imaging. Ideal for precision-required on-arm robotic applications.
Fast acquisition | High Flexibility | Industrial suitability | Easy integration
Mech-Eye Pro M can generate complete, detailed and accurate point cloud for objects with complex structures. High flexibility, well suited for demanding applications in space saving environment. Aluminium housing, fully enclosed, IP65, dust and water proof, vibration resistant, EMC/EMI approved. Suitable for industrial use, CE, FCC, VCCI & RoHS certified.
Specifications:
Optimal Working Distance: 1000–2000 mm
Near FOV: 800 × 450 @ 1.0 m
Far FOV: 1500 × 890 @ 2.0 m
Resolution: 1920 × 1200
Megapixels: 2.3 MP
Z Repeatability: 0.2 mm @ 2 m
VDI/VDE Accuracy: 0.2 mm @ 2 m
Typical Capture Time: 0.3-0.6 s
Baseline: About 270 mm
Dimensions: About 353 mm × 57 mm × 100 mm
Weight: About 1.9 kg
Operating Temperature: 0-45 ℃
Communication Interface: Gigabit Ethernet
Input: 24V DC, 3.75 A
Safety & EMC: CE/FCC/VCCI/UKCA/KC/ISED/NRTL
Light Source: Blue LED (459 nm, RG2)
IP Rating: IP65
Cooling: Passive
Palm-sized with high-qualty 3D imaging. Ideal for precision-required on-arm robotic applications.
Fast acquisition | High Flexibility | Industrial suitability | Easy integration
Mech-Eye Pro S can generate complete, detailed and accurate point cloud for objects with complex structures. High flexibility, well suited for demanding applications in space saving environment. Aluminium housing, fully enclosed, IP65, dust and water proof, vibration resistant, EMC/EMI approved. Suitable for industrial use, CE, FCC, VCCI & RoHS certified.
Specifications:
Optimal Working Distance: 500–1000 mm
Near FOV: 370 × 240 @ 0.5 m
Far FOV: 800 × 450 @ 1.0 m
Resolution: 1920 × 1200
Megapixels: 2.3 MP
Z Repeatability: 0.05 mm @ 1 m
VDI/VDE Accuracy: 0.1 mm @ 1 m
Typical Capture Time: 0.3–0.6 s
Baseline: About 180 mm
Dimensions: About 265 mm × 57 mm × 100 mm
Weight: About 1.6 kg
Operating Temperature: 0-45 ℃
Communication Interface: Gigabit Ethernet
Input: 24V DC, 3.75 A
Safety & EMC: CE/FCC/VCCI/UKCA/KC/ISED/NRTL
Light Source: Blue LED (459 nm, RG2)
IP Rating: IP65
Cooling: Passive
