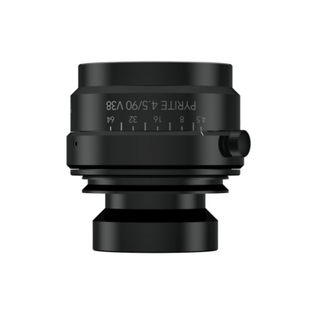

Schneider Pyrite

Pyrite’s Key Features:

  • Image circle: 30 mm – 100 mm
  • 11 focal lengths: 28 mm – 120 mm
  • Covering a wide working distance range
  • Lenses for specific magnifications available
  • Very low distortion and high resolution
  • V38-Mount, compatible to the V38 mounting system
  • Initial apertures: F2.8 – F5.6



Schneider Datasheet
Add to Proposal

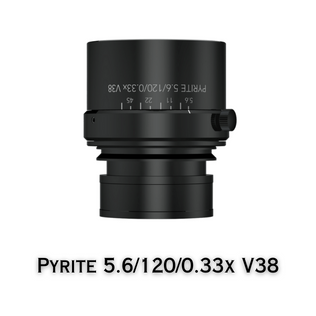

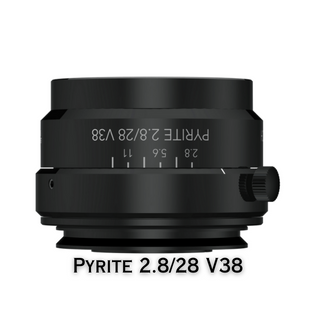

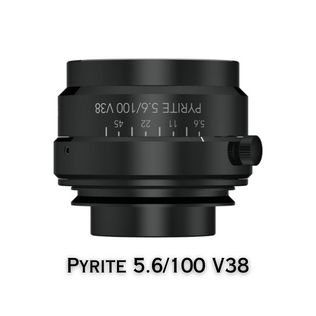

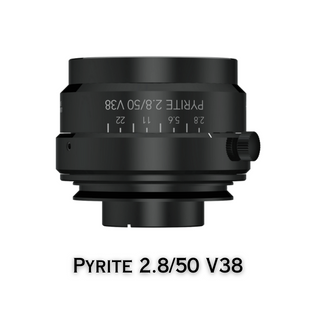

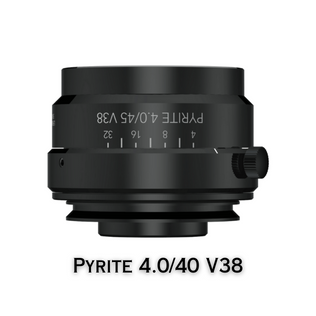

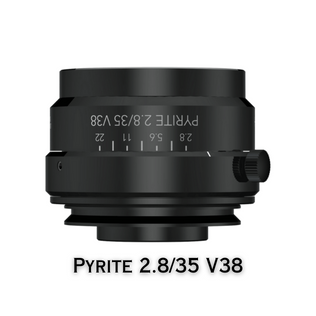

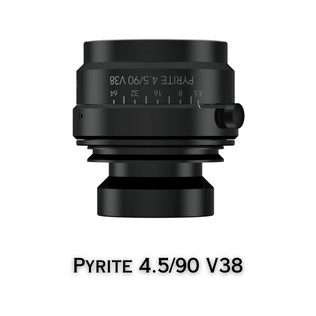

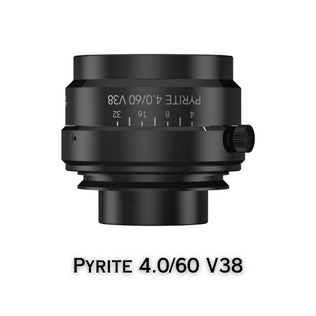

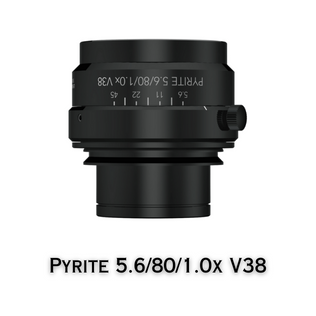

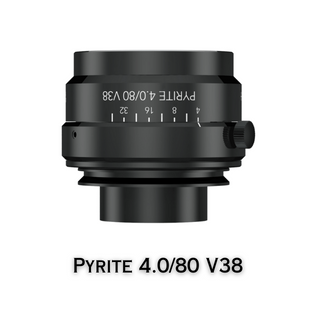

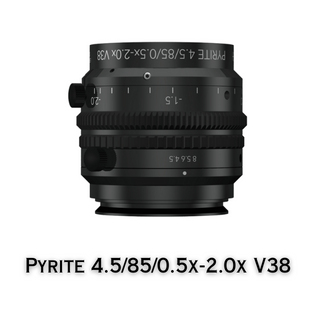

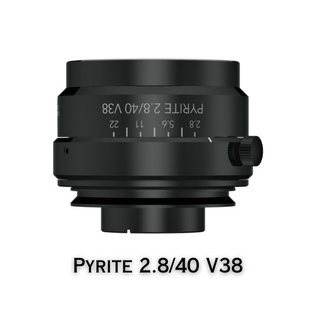

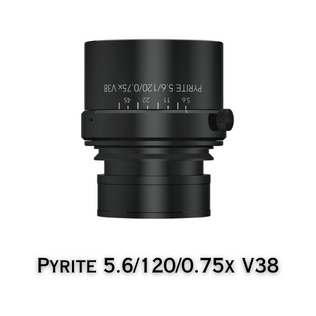

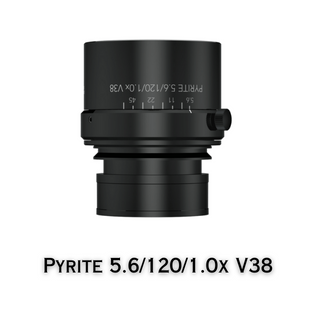

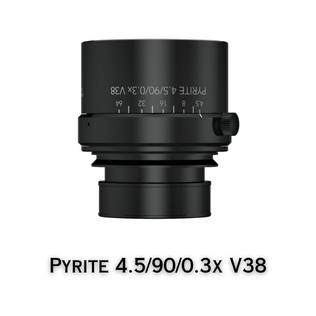

2.8/28 V38 2.8/35 V38 2.8/40 V38 4.0/45 V38 2.8/50 V38 4.0/60 V38 4.0/80 V38 5.6/80/1.0x V38 4.5/85/0.5x-2.0x V38 4.5/90 V38 4.5/90/0.3x V38 5.6/100 V38 5.6/120/1.0x V38 5.6/120/0.75x V38 5.6/120/0.5x V38 5.6/120/0.33x V38
F#
2.8 - 16
2.8 - 22
2.8 - 22
4.0 - 32
2.8 - 32
4.0 - 32
4.0 - 45
5.6 - 45
4.5 - 8
4.5 - 64
4.5 - 64
5.6 - 64
5.6 - 64
5.6 - 64
5.6 - 64
5.6 - 64
f' (mm) 28 35 40 45 50 60 80 80 85 90 90 100 120 120 120 120
Mount V38 V38 V38 V38 V38 V38 V38 V38 V38 V38 V38 V38 V38 V38 V38 V38
Sensor Size 30 30 43.2 43.2 43.2 62.5 82 100
62.5
 90 90 100 90 90 90 90
Type Standard Standard Standard Standard Standard Standard Standard Standard Standard Standard Standard Standard Standard Standard Standard Standard
Size D x L (mm x mm)
46 x 33.9
46 x 36.5
46 x 39
46 x 36.5
46 x 39.3
46 x 41.8
46 x 42
46 x 47
48.5 x 48
46 x 48
46 x 52
46 x 40
46 x 54.7
46 x 54.7
46 x 54.7
46 x 54.7
Weight (g) 99 108 102 94 107 114 109 130 270 134
129
 174 164 164 164 164
Filter Thread
M37 x 0.75
M37 x 0.75
M37 x 0.75
M37 x 0.75
M37 x 0.75
M37 x 0.75
M37 x 0.75
M37 x 0.75
M37 x 0.75
 M37 x 0.75
M40.5 x 0.5
M37 x 0.75
 M40.5 x 0.5 M40.5 x 0.5 M40.5 x 0.5 M40.5 x 0.5
Code
1097781
 1097782 1097232 1097783 1097301 1097302 1097276 1097785 1072517 1097789 1097784 1097303 1097277 1097786 1097787 1097788
