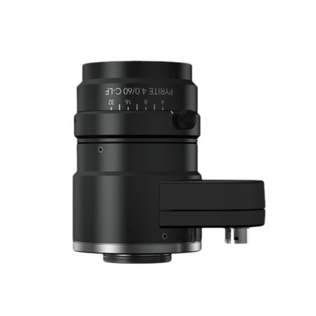

Schneider Pyrite LF

Pyrite’s Key Features:

Focus tunable liquid lens included
Large working distance range
Fast focus within milliseconds
Large image circle

Schneider Datasheet

This product is already in your proposal request list.

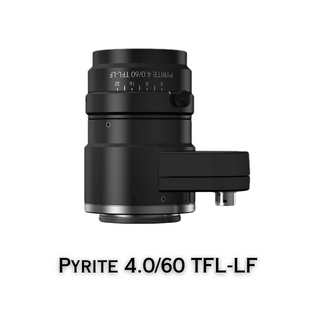

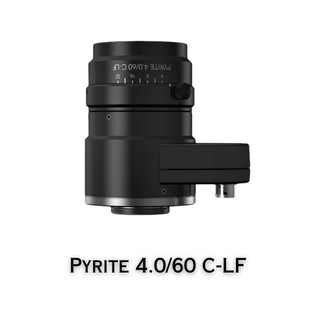

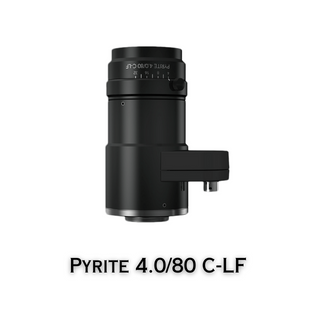

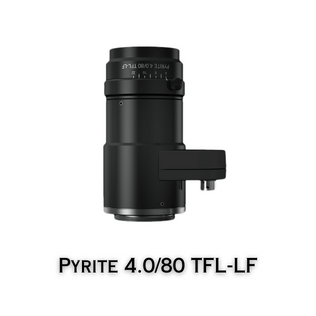

	4.0/60 C-LF	4.0/60 TFL-LF	4.0/80 C-LF	4.0/80 TFL-LF
F#	4.0 –32	4.0 –32	4.0 –45	4.0 –45
f' (mm)	60	60	80	80
Mount	C	TFL	C	TFL
Sensor Size	24	32	24	36
Type	Liquid Lens Focus	Liquid Lens Focus	Liquid Lens Focus	Liquid Lens Focus
Size D x L (mm x mm)	47* x 71	47* x 71	47* x 96	47* x 96
Weight (g)	280	280	310	310
Filter Thread	M37 x 0.75	M37 x 0.75	M37 x 0.75	M37 x 0.75
Code	1102613	1102615	1102609	1102611
