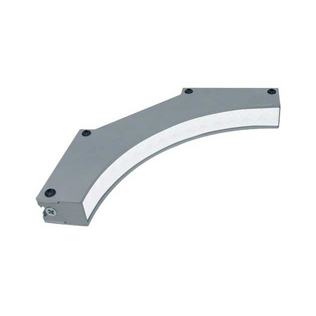

The DFLB-460 Dark Field Linear Light provides a round 90° light illumination, allowing the light to “wrap” around a curved surface. Daisy-chain up to 4 lights together to cover an area up to 360°. Use NPN or PNP trigger signal to control the light’s pulse. The DFLB-460 features a factory-installed 2447 diffuser backlight lens and is a viable option for silhouetting objects. Control intensity via a 110V analog signal line.
| Product Details | |
| Illumination Type | Dark Field |
| IP Rating | IP50 |
| Min Working Distance | 50 mm |
| Max Working Distance | 500 mm |
| Mode | Continuous |
| Wavelength | WHI- White / 470 - Blue / 505 - Cyan / 530 - Green / 625 - Red / 850 - IR / 940 - IR |
| Lens Configuration | Line - 10° width, 50° fan angle / Narrow - 14° / Wide - 30° |
The modular design of the LX150 linear light, part of the Direct Connect Linear Light Series, offers integrated light-to-light connectors, eliminating the need for cable connectors to string lights together. The light operates in continuous operation. This innovative design requires a power connection to the first light but eliminates the need for jumper cables to pass power through to the next, enabling tailored-length solutions in increments of 150 mm. Direct connect up to sixteen LX150 together.
The modular design of the ODLX150 linear light, part of the Direct Connect Linear Light Series, offers integrated light-to-light connectors, eliminating the need for cable connectors to string lights together. The light operates in OverDrive™ strobe-only mode. This innovative design requires a power connection to the first light but eliminates the need for jumper cables to pass power through to the next, enabling tailored-length solutions in increments of 150 mm. Direct connect up to sixteen ODLX150 together.
The ODL300 Bar/Linear Light utilizes 12 high-intensity LEDs and features an integrated OverDrive™ strobe driver with a maximum strobe rate of 5000 strobes per second. NPN or PNP trigger signals can be used to control the pulse of the light. The intensity of the light can be controlled via 1-10VDC analog signal line or manual potentiometer. Daisy-chain up to six ODL300 lights together.
The LHI-DO Series is an OverDriveTM only light source meant to provide external illumination for logistics. This light can be used to create tunnel systems capable of illuminating any package of any size and ensure perfect readability no matter the shape or material. The LHI-DO Series is available in 300- and 600 mm lengths.
Get more light with less power with exceptional energy management
Our specially designed onboard charging capacitors ensure powerful bursts of energy with a low consistent electrical draw.
The Lightgistics Series: Brighter. Faster. Better.
The LHI-DO is part of the Lightgistics Series – machine vision lights made for the logistics industry.
