More light in less space

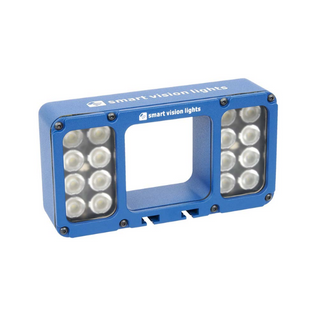

The JWL150 is an intense, compact light source to provide external illumination for machine vision cameras or smart cameras where the built-in illumination is not enough.
Camera integration
Connect the JWL150 directly to camera housings through optional mounting plates to get the light you need in a small footprint. The JWL is compatible with many machine vision cameras and can be directly connected and controlled through a camera’s trigger output.
The options you need
With a working distance from 500 mm all the way to 2000 mm, the JWL offers high intensity light even at longer distances. The built-in Multi-Drive™ driver offers both continuous operation and OverDrive mode in the same light.
| Product Details | |
| Illumination Type | Bright Field, Direct Lighting |
| IP Rating | IP65 |
| Min Working Distance | 500 mm |
| Max Working Distance | 2000 mm |
| Mode | Multi-Drive™ |
| SmartVisionLink | Compatible |
| Wavelength | WHI - White / 470 - Blue / 625 - Red / 850 - IR |
| Lens Configuration | Narrow - 10° / Narrow - 14° (Standard) / Wide - 30° |
| Linear Polarizer | None / Factory Installed |
The LB300 array utilizes 12 high-intensity LEDs, features an integrated constant current driver built into the light and operates in continuous operation. The LB300 features a factory-installed 2447 diffuser backlight lens and is a viable option for silhouetting objects. NPN or PNP trigger signals can be used to control the on/off input of the light. The intensity of the light can be controlled via 1-10VDC analog signal line or manual potentiometer. Daisy-chain up to six LB300 lights together.
The LM150 miniature linear light features an integrated Multi-DriveTM current driver that can operate in either continuous or OverDriveTM mode depending on the wiring configuration selected by the user. This light also features over-current protection and can be enabled/ strobed with either NPN or PNP inputs.
he LZE300, a SmartVisionLink™ enabled linear light, has similar features and functions as the LXE300, with the addition of communication with a SmartVisionLink™ managing device, such as the BTM-1000. When the LZE300 is connected to the BTM-1000, its intensity can be fully controlled, either for the entire light or for each of the three LED zones. Individual zones may also be turned off. The standard LZE300 has a 12 LED configuration.
The LZE300 is available in three different connector options:
The LZE300 also comes with NanoDrive technology, which enables a faster “on” and “off” compared to other technology.
We’re revolutionizing washdown lights with the new LZEW300. The aluminum housing with non-stick coating is FDA-compliant and costs significantly less than stainless steel. Prefer stainless? The LZEW300 is also available in 316 stainless steel.
The LZEW300 is a SmartVisionLinkTM-enabled washdown linear light. With the addition of the BTM-1000 Bluetooth module, the LZEW300 can be wirelessly adjusted for intensity levels. Connect the LZEW300 in a series of up to six lights through daisy-chain, to create a total of 18 independently controllable lighting zones.
