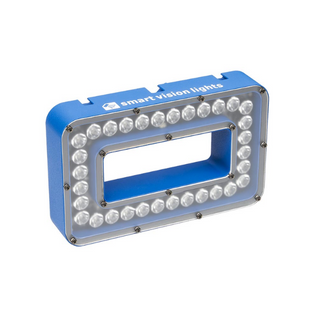

The JWL225-MD, part of the Camera to Light (CTL) Series, is an intense light source meant to provide external illumination for machine vision cameras or smart cameras where the built-in illumination is not enough. This light can be connected directly to camera housings through optional mounting plates to illuminate areas larger than what is normally covered by the camera’s internal light source. The JWL225-MD is compatible with many machine vision cameras and can be directly connected and controlled through a camera’s trigger output.
| Product Details | |
| IP Rating | IP65 |
| Min Working Distance | 300 mm |
| Max Working Distance | 1500 mm |
| Illumination Type | Bright Field, Direct Lighting |
| Mode | Multi-Drive™ |
| SmartVisionLink | Compatible |
| Wavelength | WHI - White / 470 - Blue / 625 - Red / 850 - IR |
| Lens Configuration | Narrow - 10° / Narrow - 14° (Standard) / Wide - 30° |
| Linear Polarizer | None / Factory Installed |
The LB300 array utilizes 12 high-intensity LEDs, features an integrated constant current driver built into the light and operates in continuous operation. The LB300 features a factory-installed 2447 diffuser backlight lens and is a viable option for silhouetting objects. NPN or PNP trigger signals can be used to control the on/off input of the light. The intensity of the light can be controlled via 1-10VDC analog signal line or manual potentiometer. Daisy-chain up to six LB300 lights together.
The LTF (Linear Tunable Field Of View) series (patent pending), a SmartVisionLinkTM-enabled light, features three independently adjustable beam angle lighting channels. When used with the BTM-1000 Bluetooth accessory* and the SmartVisionLinkTM app, lighting channels can be set to produce unique beam- angle combinations – optimizable for many different applications over a wide range of working distances and field of view requirements.
LTF Series Highlights
The modular design of the LX150 linear light, part of the Direct Connect Linear Light Series, offers integrated light-to-light connectors, eliminating the need for cable connectors to string lights together. The light operates in continuous operation. This innovative design requires a power connection to the first light but eliminates the need for jumper cables to pass power through to the next, enabling tailored-length solutions in increments of 150 mm. Direct connect up to sixteen LX150 together.
We’re revolutionizing washdown lights with the new LZEW300. The aluminum housing with non-stick coating is FDA-compliant and costs significantly less than stainless steel. Prefer stainless? The LZEW300 is also available in 316 stainless steel.
The LZEW300 is a SmartVisionLinkTM-enabled washdown linear light. With the addition of the BTM-1000 Bluetooth module, the LZEW300 can be wirelessly adjusted for intensity levels. Connect the LZEW300 in a series of up to six lights through daisy-chain, to create a total of 18 independently controllable lighting zones.
