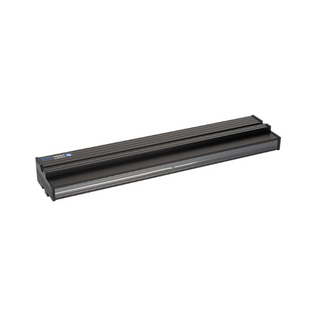

The LCHPX is a low-cost, high-powered line scan light capable of over 800,000 lux. Fan-free passive cooling means less maintenance and fewer issues. Multiple lens configurations optimize illumination for your working distance. The LCHPX is fully enclosed and can be mounted using standard T-slot mounting hardware.
High power, low cost, with just the features you need.
Lens Position
Use the table below to determine the best lens position for your application.
| Lens Position | Working Distance (mm) | Beam Width (mm) | Illuminance (Lux) Values |
|---|---|---|---|
| 1 | 35 | 2.5 | 805,000 |
| 2 | 50 | 3 | 644,000 |
| 3 | 100 | 4.5 | 290,000 |
| 4 | 100 | 8 | 274,000 |
| Illumination measurement taken on white light, 5700 K | |||
| Product Details | |
| Illumination Type | Bright Field, Projector |
| IP Rating | IP50 |
| Size | 300 mm / 600 mm / 900 mm /1200 mm |
| Wavelength | WHI - White / 365 - UV / 395 - UV / 470 - Blue / 625 - Red / 850 - IR |
| Lens Position | 1 / 2 (Factory Default) / 3 /4 |
The ODLW300 Series features a 100% waterproof stainless-steel enclosure specially designed for the food industry and washdown environments where water and harsh detergents are present. The integrated OverDrive™ driver allows for a maximum strobe rate of 5000 strobes per second. NPN or PNP trigger signal input can be used to control the pulse of the light. The intensity of the light can be controlled via 1-10VDC analog signal line or the onboard manual potentiometer. Daisy-chain up to six ODLW300 lights together.
The LTF (Linear Tunable Field Of View) series (patent pending), a SmartVisionLinkTM-enabled light, features three independently adjustable beam angle lighting channels. When used with the BTM-1000 Bluetooth accessory* and the SmartVisionLinkTM app, lighting channels can be set to produce unique beam- angle combinations – optimizable for many different applications over a wide range of working distances and field of view requirements.
LTF Series Highlights
The LHI-DO Series is an OverDriveTM only light source meant to provide external illumination for logistics. This light can be used to create tunnel systems capable of illuminating any package of any size and ensure perfect readability no matter the shape or material. The LHI-DO Series is available in 300- and 600 mm lengths.
Get more light with less power with exceptional energy management
Our specially designed onboard charging capacitors ensure powerful bursts of energy with a low consistent electrical draw.
The Lightgistics Series: Brighter. Faster. Better.
The LHI-DO is part of the Lightgistics Series – machine vision lights made for the logistics industry.
he LZE300, a SmartVisionLink™ enabled linear light, has similar features and functions as the LXE300, with the addition of communication with a SmartVisionLink™ managing device, such as the BTM-1000. When the LZE300 is connected to the BTM-1000, its intensity can be fully controlled, either for the entire light or for each of the three LED zones. Individual zones may also be turned off. The standard LZE300 has a 12 LED configuration.
The LZE300 is available in three different connector options:
The LZE300 also comes with NanoDrive technology, which enables a faster “on” and “off” compared to other technology.
