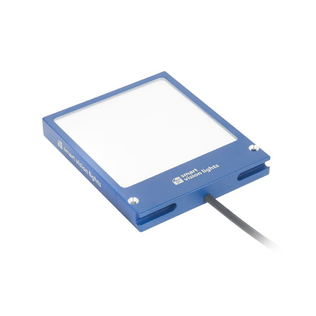

The MBL Series of backlights is a mini back light with an ultra-slim design. Edge-enhancing technology is built-in to provide maximum contrast to backlit objects, providing the ability to get sharp images of round and highly reflective objects. The MBL Series is a Multi-Drive™ light capable of being adjusted remotely from a smartphone or tablet through SmartVisionLink.
MBL mini backlights provide a high density of LEDs with an active area ranging from 25 x 25 mm to 100 x 100 mm. The integrated constant current Multi-Drive™ LED driver simplifies installation and use while delivering either constant or strobe operation. And with a surface illuminance of up to 190,000 lux in continuous mode and 2,180,000 lux in OverDrive™, these are seriously bright backlights.
Built-in edge enhancing technology provides collimated lighting for uniform, consistent light. Get excellent edge contrast for shiny parts and curved edges while improving overall image clarity.
| Product Details | |
| Illumination Type | Backlight, Bright Field |
| IP Rating | IP50 |
| Mode | Multi-Drive™ |
| SmartVisionLink | Compatible |
| Size | 100 mm x 100 mm / 25 mm x 25 mm / 50 mm x 50 mm / 75 mm x 75 mm |
| Wavelength | WHI- White / 470 - Blue / 625 - Red / 850 - IR |
The ODL300 Bar/Linear Light utilizes 12 high-intensity LEDs and features an integrated OverDrive™ strobe driver with a maximum strobe rate of 5000 strobes per second. NPN or PNP trigger signals can be used to control the pulse of the light. The intensity of the light can be controlled via 1-10VDC analog signal line or manual potentiometer. Daisy-chain up to six ODL300 lights together.
The LTF (Linear Tunable Field Of View) series (patent pending), a SmartVisionLinkTM-enabled light, features three independently adjustable beam angle lighting channels. When used with the BTM-1000 Bluetooth accessory* and the SmartVisionLinkTM app, lighting channels can be set to produce unique beam- angle combinations – optimizable for many different applications over a wide range of working distances and field of view requirements.
LTF Series Highlights
The LC300 features 12 high-bright LEDs, operates in continuous mode, and includes a built-in constant-current driver. The LC300 is a more cost effective light due to the analog intensity control line not being included and not being capable of daisy-chaining to additional linear lights. NPN or PNP trigger signals can be used to control the on/off input of the light.
The Right Light for Your Application
We’re revolutionizing washdown lights with the new LZEW300. The aluminum housing with non-stick coating is FDA-compliant and costs significantly less than stainless steel. Prefer stainless? The LZEW300 is also available in 316 stainless steel.
The LZEW300 is a SmartVisionLinkTM-enabled washdown linear light. With the addition of the BTM-1000 Bluetooth module, the LZEW300 can be wirelessly adjusted for intensity levels. Connect the LZEW300 in a series of up to six lights through daisy-chain, to create a total of 18 independently controllable lighting zones.
