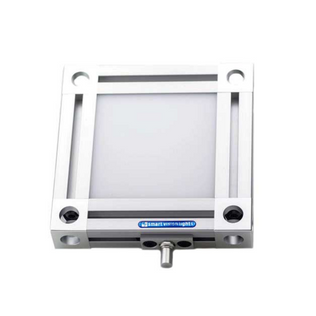

The MOBL Backlight Series is designed for maximum output. The series works in continuous operation mode or can operate with either an NPN or PNP trigger signal when using on/off input mode. The MOBL Backlight runs on an industry-standard 24VDC. The 1-10VDC analog control line gives the user total control over intensity. Proper heat dissipation is achieved using the side extrusion and the heat sink installed on the bottom of the light. The 45 mm extrusion makes mounting the light easy when using drop-in T-nuts. The MOBL Backlight has a built-in driver. No external driver is required. This product comes in the following sizes: 150 mm x 150 mm, 300 mm x 150 mm, and 300 mm x 300 mm.
| Product Details | |
| Illumination Type | Backlight |
| IP Rating | IP50 |
| Mode | Continuous |
| Wavelength | WHI- White / 470 - Blue / 505 - Cyan / 530 - Green / 625 - Red / 850 - IR |
| Size | 150 mm x 150 mm / 300 mm x 150 mm / 300 mm x 300 mm |
| Patterned Area Lighting | Yes / No |
The LWB300 series features a 100% waterproof stainless-steel enclosure specially designed for the food industry and washdown environments where water and harsh detergents are present. The LWB300 features an integrated constant current driver built into the light and runs in continuous operation. NPN or PNP trigger signal input can be used to control the turning on/off input of the light. The intensity of the light can be controlled via a 1-10VDC analog signal line or onboard manual potentiometer. Daisy-chain up to six LWB300 together.
The L300 Bar/Linear Light utilizes 12 high-intensity LEDs and features an integrated constant current driver built into the light. Connect-a-Light Series of Linear Lights uses 24VDC and can operate in continuous mode. NPN or PNP strobe triggers can be used to control the on/off input of the light. Control intensity via a 1-10V analog signal line or manual potentiometer. Daisy-chain up to six L300 lights together.
The LM150 miniature linear light features an integrated Multi-DriveTM current driver that can operate in either continuous or OverDriveTM mode depending on the wiring configuration selected by the user. This light also features over-current protection and can be enabled/ strobed with either NPN or PNP inputs.
The LC300 features 12 high-bright LEDs, operates in continuous mode, and includes a built-in constant-current driver. The LC300 is a more cost effective light due to the analog intensity control line not being included and not being capable of daisy-chaining to additional linear lights. NPN or PNP trigger signals can be used to control the on/off input of the light.
The Right Light for Your Application
