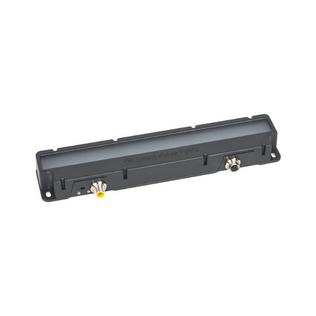

The ODL300 Bar/Linear Light utilizes 12 high-intensity LEDs and features an integrated OverDrive™ strobe driver with a maximum strobe rate of 5000 strobes per second. NPN or PNP trigger signals can be used to control the pulse of the light. The intensity of the light can be controlled via 1-10VDC analog signal line or manual potentiometer. Daisy-chain up to six ODL300 lights together.
| Product Details | |
| Illumination Type | Bright Field, Dark Field, Direct Lighting |
| IP Rating | IP50 |
| Min Working Distance | 300 mm |
| Max Working Distance | 4000 mm |
| Mode | Bright Field, Dark Field, Direct Lighting |
| Wavelength | WHI- White / 365 - UV / 395 - UV / 470 - Blue / 505 - Cyan / 530 - Green / 625 - Red / 850 - IR / 940 - IR |
| Lens Configuration | Line - 10° width, 50° fan angle / Narrow - 10° / Wide - 30° |
The modular design of the ODLX150 linear light, part of the Direct Connect Linear Light Series, offers integrated light-to-light connectors, eliminating the need for cable connectors to string lights together. The light operates in OverDrive™ strobe-only mode. This innovative design requires a power connection to the first light but eliminates the need for jumper cables to pass power through to the next, enabling tailored-length solutions in increments of 150 mm. Direct connect up to sixteen ODLX150 together.
The LM45 compact linear light features an integrated Multi-Drive™ constant-current driver that operates in continuous operation or in OverDrive™ strobe mode depending on the wiring method. The light can be mounted via a rear T-slot channel, also offers over-current protection and PNP and NPN strobe trigger inputs. With housing 51 mm long, the LM45 puts out unprecedented levels of light in one of the industry’s smallest footprints.
The LW300 series features a 100% waterproof stainless-steel enclosure specially designed for the food industry and washdown environments where water and harsh detergents are present. The LW300 features an integrated constant current driver built into the light and runs in continuous operation mode. NPN or PNP trigger signal inputs can be used to control the on/off input of the light. The intensity of the light can be controlled via 1-10VDC analog signal line or the onboard manual potentiometer. Daisy-chain up to six LW300 lights together.
The LM150 miniature linear light features an integrated Multi-DriveTM current driver that can operate in either continuous or OverDriveTM mode depending on the wiring configuration selected by the user. This light also features over-current protection and can be enabled/ strobed with either NPN or PNP inputs.
