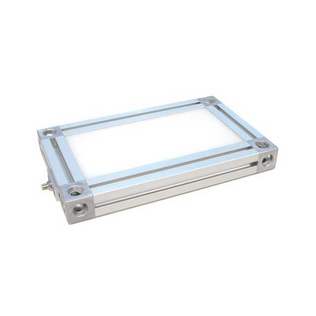

The ODMOBL Backlight Series is designed for OverDrive™ strobing and produces maximum light output. NPN or PNP trigger signals can be used to control the pulse of the light. The intensity of the light can be controlled via 1-10VDC analog signal line. Proper heat dissipation is achieved using the side extrusion installed on the bottom of the light. The 45 mm extrusion makes mounting the light easy when using drop-in T-nuts. The ODMOBL Backlight has a built-in driver. No external driver is required. This product comes in the following sizes: 150 mm x 150 mm, 300 mm x 150 mm, and 300 mm x 300 mm.
| Product Details | |
| Illumination Type | Backlight |
| IP Rating | IP50 |
| Mode | OverDrive™ |
| Wavelength | WHI- White / 470 - Blue / 505 - Cyan / 530 - Green / 625 - Red / 850 - IR |
| Size | 150 mm x 150 mm / 300 mm x 150 mm / 300 mm x 300 mm |
| Patterned Area Lighting | Yes / No |
The LM75 compact linear light features an integrated Multi-Drive™ constant-current driver that operates in continuous operation or in OverDrive™ strobe mode depending on the wiring method. The light can be mounted via a rear T-slot channel, also offers over-current protection and PNP and NPN strobe trigger inputs. The LM75 has a 80 mm long housing and features 8 high-current LEDs.
The modular design of the ODLX150 linear light, part of the Direct Connect Linear Light Series, offers integrated light-to-light connectors, eliminating the need for cable connectors to string lights together. The light operates in OverDrive™ strobe-only mode. This innovative design requires a power connection to the first light but eliminates the need for jumper cables to pass power through to the next, enabling tailored-length solutions in increments of 150 mm. Direct connect up to sixteen ODLX150 together.
The ODL300 Bar/Linear Light utilizes 12 high-intensity LEDs and features an integrated OverDrive™ strobe driver with a maximum strobe rate of 5000 strobes per second. NPN or PNP trigger signals can be used to control the pulse of the light. The intensity of the light can be controlled via 1-10VDC analog signal line or manual potentiometer. Daisy-chain up to six ODL300 lights together.
The LTF (Linear Tunable Field Of View) series (patent pending), a SmartVisionLinkTM-enabled light, features three independently adjustable beam angle lighting channels. When used with the BTM-1000 Bluetooth accessory* and the SmartVisionLinkTM app, lighting channels can be set to produce unique beam- angle combinations – optimizable for many different applications over a wide range of working distances and field of view requirements.
LTF Series Highlights
