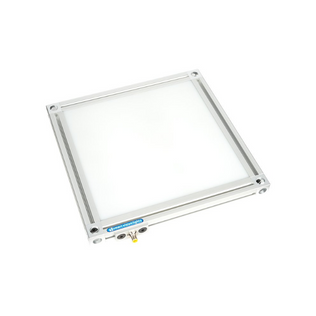

The SOBL Backlight Series is an innovative and highly versatile light. SOBL backlights are area lit for a more intense and highly diffuse lighting output. Lights have built-in drivers, so no external driver is needed. At just 30 mm in-depth, the lights can be easily mounted in tight locations. Active area dimensions (in millimeters) include but are not limited to 150 x 100, 150 x 150, 200 x 150, 200 x 200, 300 x 150, 300 x 200, 300 x 300, and 450 x 450. Custom sizes available upon request.
| Product Details | |
| Illumination Type | Backlight |
| IP Rating | IP50 |
| Mode | Continuous |
| Wavelength | WHI- White / 470 - Blue / 505 - Cyan / 530 - Green / 625 - Red / 850 - IR |
| Size | 150 mm x 100 mm / 150 mm x 150 mm / 200 mm x 150 mm / 200 mm x 200 mm / 300 mm x 150 mm / 300 mm x 200 mm / 300 mm x 300 mm / 450 mm x 450 mm |
| Patterned Area Lighting | Yes / No |
The modular design of the LX150 linear light, part of the Direct Connect Linear Light Series, offers integrated light-to-light connectors, eliminating the need for cable connectors to string lights together. The light operates in continuous operation. This innovative design requires a power connection to the first light but eliminates the need for jumper cables to pass power through to the next, enabling tailored-length solutions in increments of 150 mm. Direct connect up to sixteen LX150 together.
The modular design of the ODLX300 linear light, part of the Direct Connect Linear Light Series, offers integrated light-to-light connectors, eliminating the need for cable connectors to string lights together. The light operates in OverDrive™ strobe-only mode. This innovative design requires a power connection to the first light but eliminates the need for jumper cables to pass power through to the next, enabling tailored-length solutions in increments of 300 mm. Direct connect up to eight ODLX300 together.
The modular design of the LXB150 linear light, part of the Direct Connect Linear Light Series, offers integrated light-to-light connectors, eliminating the need for cable connectors to string lights together. The LXB150 features a factory-installed 2447 diffuser backlight lens and is a viable option for silhouetting objects. The light operates in continuous operation. This innovative design requires a power connection to the first light but eliminates the need for jumper cables to pass power through to the next, enabling tailored-length solutions in increments of 150 mm. Direct connect up to sixteen LXB150 together.
The ODL300 Bar/Linear Light utilizes 12 high-intensity LEDs and features an integrated OverDrive™ strobe driver with a maximum strobe rate of 5000 strobes per second. NPN or PNP trigger signals can be used to control the pulse of the light. The intensity of the light can be controlled via 1-10VDC analog signal line or manual potentiometer. Daisy-chain up to six ODL300 lights together.
