Smart Vision Lights SWB75 Brick Light Washdown

Name: Smart Vision Lights SWB75 Brick Light Washdown
SKU: 1338
Availability: InStock

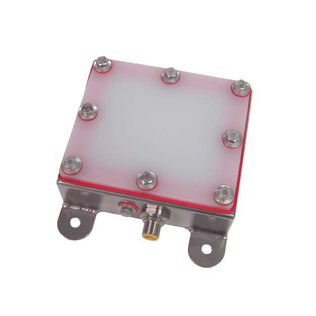

The SWB75 Brick Light Series of spot lights features a stainless-steel IP68-rated enclosure specially designed for the food industry and washdown environments. The SWB75 features a diffused lens and is a viable option for silhouetting objects. NPN or PNP trigger signal inputs can be used to control the pulse of the light. The intensity of the light can be controlled via 1-10VDC analog signal line or by adjusting the built-in manual potentiometer.

Smart Vision Lights Datasheet

Add to Proposal

This product is already in your proposal request list.

Browse List

Product Details
Illumination Type	Backlight
IP Rating	IP68
Mode	Continuous
Wavelength	WHI- White / 470 - Blue / 505 - Cyan / 530 - Green / 625 - Red / 850 - IR / 940 - IR

Product Advantages

Built-In Driver: This light features a built-in constant current driver, no external driver is needed.
IEC Safety: This light is in compliance with IEC 62471 standards and has been tested in our in house IEC safety laboratory.
Multi-Drive^™ Allows the light to work in continuous operation or OverDrive^™ strobe mode.
SafeStrobe^™ Technology: This unique technology applies safe working parameters to ensure the LEDs are not damaged by driving them beyond their limits.
Best Lead Time: Most of our standard products ship within three business days.
Best Warranty: Learn more about the best warranty – up to 10 years – available today.

Smart Vision Lights LZEW300 Washdown Linear Light

FDA compliant. IP68 rated. Affordable.

We’re revolutionizing washdown lights with the new LZEW300. The aluminum housing with non-stick coating is FDA-compliant and costs significantly less than stainless steel. Prefer stainless? The LZEW300 is also available in 316 stainless steel.

All the features of the LZE300, now in a washdown

The LZEW300 is a SmartVisionLink^TM-enabled washdown linear light. With the addition of the BTM-1000 Bluetooth module, the LZEW300 can be wirelessly adjusted for intensity levels. Connect the LZEW300 in a series of up to six lights through daisy-chain, to create a total of 18 independently controllable lighting zones.

Product Highlights

Connect up to six LZEW300 linear lights
SmartVisionLink^TM-enabled provides easy intensity adjustment in both continuous and OverDrive^TM modes
NanoDrive^TM provides the ability to turn the light fully on in less than 500 ns
FDA compliant non-stick coated aluminum housing or 316 stainless steel housing

Smart Vision Lights ODLX150 OverDrive™ Direct Connect Bar/Linear Light

The modular design of the ODLX150 linear light, part of the Direct Connect Linear Light Series, offers integrated light-to-light connectors, eliminating the need for cable connectors to string lights together. The light operates in OverDrive^™ strobe-only mode. This innovative design requires a power connection to the first light but eliminates the need for jumper cables to pass power through to the next, enabling tailored-length solutions in increments of 150 mm. Direct connect up to sixteen ODLX150 together.

Product Advantages

Built-In Driver: This light features a built-in constant current driver, no external driver is needed.
IEC Safety: This light is in compliance with IEC 62471 standards and has been tested in our in house IEC safety laboratory.
SafeStrobe^™ Technology: This unique technology applies safe working parameters to ensure the LEDs are not damaged by driving them beyond their limits.
Best Lead Time: Most of our standard products ship within three business days.
Best Warranty: 10-year warranty on most of our products.

Smart Vision Lights L300 Linear Connect-a-Light

The L300 Bar/Linear Light utilizes 12 high-intensity LEDs and features an integrated constant current driver built into the light. Connect-a-Light Series of Linear Lights uses 24VDC and can operate in continuous mode. NPN or PNP strobe triggers can be used to control the on/off input of the light. Control intensity via a 1-10V analog signal line or manual potentiometer. Daisy-chain up to six L300 lights together.
