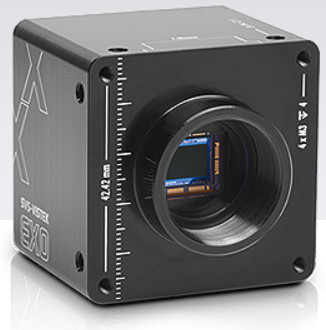

SVS-VISTEK EXO USB3

The EXO is one of the most flexible and scalable cameras for the industrial market segment. The USB3 Vision interface is easy to integrate in your system, with a data rate up to effective 360 MB/sec. Single cable interface for power an data reduces cable complexity. integrated multi channel GenICam LED light controller provides currents up to 3 A. EXO provides Plug-and-play capability for the whole range of 2.3 to 31 MP resolution.

  • Up to 360 MB/sec effective transfer rate
  • Leverages existing infrastructure for cables and connectors
  • Integrated strobe controller
  • GenICam compliant camera with latest sensors
  • Cost effective / Easy implementation and interfacing



SVS-VISTEK Datasheet
Add to Proposal
Model MP Resolution Chroma Sensor Size Frame Rates (fps)
exo174MU3 2.3 1920 x 1200 pixel Monochrome 1/1.2" CMOS 160
exo249MU3 2.3 1920 x 1200 pixel Monochrome 1/1.2" CMOS 41
exo252MU3 3.1 2048 x 1536 pixel Monochrome 1/1.8" CMOS 115
exo265MU3 3.1 2048 x 1536 pixel Monochrome 1/1.8" CMOS 55
exo4000MU3 4 2048 x 2048 pixel Monochrome 1" CMOS 74
exo250ZU3 5 2048 x 2048 pixel Monochrome Polarized 2/3" CMOS 75
exo250MU3 5 2048 x 2048 pixel Monochrome 2/3" CMOS 75
exo264MU3 5 2048 x 2048 pixel Monochrome 2/3" CMOS 35
exo264ZU3 5 2048 x 2048 pixel Monochrome 2/3" CMOS 35
exo428MU3 7.1 3208 x 2200 pixel Monochrome 1.1" CMOS 51.4
exo255MU3 8.8 4096 x 2160 pixel Monochrome 1" CMOS 42
exo267MU3 8.8 4096 x 2160 pixel Monochrome 1" CMOS 21
exo253MU3 12.3 4096 x 3000 pixel Monochrome 1.1" CMOS 30
exo304MU3 12.3 4096 x 3000 pixel Monochrome 1.1" CMOS 23
exo542MU3 16.1 5320 x 3032 pixel Monochrome 16.8mm (Type 1.1) CMOS 23
exo387MU3 16.8 5456 x 3076 pixel Monochrome 21.7mm (4/3) CMOS, 22
exo367MU3 19.6 4416 x 4428 pixel Monochrome 21.6mm (4/3) CMOS, 19
exo183MU3 20.2 5496 x 3672 pixel Monochrome 1" CMOS 17
exo541MU3 20.3 4504 x 4504 pixel Monochrome 17.5mm (Type 1.1) CMOS 18.4
exo540MU3 24.5 5320 x 4600 pixel Monochrome 19.3mm (Type 1.2) CMOS 15
exo342MU3 31.4 6464 x 4852 pixel Monochrome 27.9mm (APS-C) CMOS 12
exo174CU3 2.3 1920 x 1200 pixel Color (Bayer) 1/1.2" CMOS 160
exo249CU3 2.3 1920 x 1200 pixel Color (Bayer) 1/1.2" CMOS 41
exo252CU3 3.1 2048 x 1536 pixel Color (Bayer) 1/1.8" CMOS 115
exo265CU3 3.1 2048 x 1536 pixel Color (Bayer) 1/1.8" CMOS 55
exo4000CU3 4 2048 x 2048 pixel Color (Bayer) 1" CMOS 74
exo250CU3 5 2048 x 2048 pixel Color (Bayer) 2/3" CMOS 75
exo264CU3 5 2048 x 2048 pixel Color (Bayer) 2/3" CMOS 35
exo428CU3 7.1 3208 x 2200 pixel Color (Bayer) 1.1" CMOS 51.4
exo255CU3 8.8 4096 x 2160 pixel Color (Bayer) 1" CMOS 42
exo267CU3 8.8 4096 x 2160 pixel Color (Bayer) 1" CMOS 32
exo253CU3 12.3 4096 x 3000 pixel Color (Bayer) 1.1" CMOS 30
exo253ZU3 12.3 4096 x 3000 pixel Monochrome Polarized 1.1" CMOS 30
exo304CU3 12.3 4096 x 3000 pixel Color (Bayer) 1.1" CMOS 23
exo542CU3 16.1 5320 x 3032 pixel Color (Bayer) 16.8mm (Type 1.1) CMOS 23
exo387CU3 16.8 5456 x 3076 pixel Color (Bayer) 21.7mm (4/3) CMOS 22
exo367CU3 19.6 4416 x 4428 pixel Color (Bayer) 21.6mm (4/3) CMOS 19
exo183CU3 20.2 5496 x 3672 pixel Color (Bayer) 1" CMOS 17
exo541CU3 20.3 4504 x 4504 pixel Color (Bayer) 17.5mm (Type 1.1) CMOS 18.4
exo540CU3 24.5 5320 x 4600 pixel Color (Bayer) 19.3mm (Type 1.2) CMOS 15
exo342CU3 31.4 6464 x 4852 pixel Color (Bayer) 27.9mm (APS-C) CMOS 12
