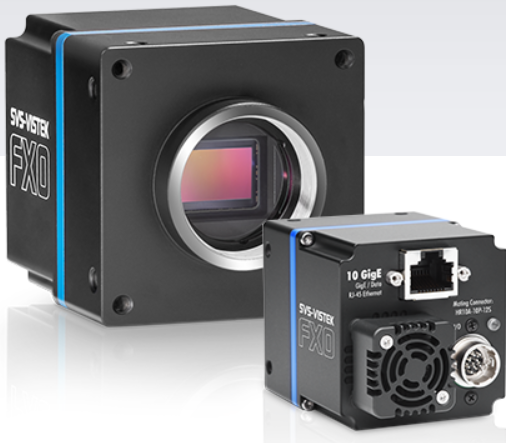

The FXO stands for excellent image quality. The fast 10GigE interface is an extremely economical interface and at the same time offers excellent conditions for use in larger networks. The large framebuffer and packet resend ensure reliable top frame rates. Up to 100 m cable length is supported by the modern network technology of the FXO.
An excellent, low-noise image with high dynamics is complemented by a comprehensive feature set. The Sony Pregius S sensors used are characterized by high light sensitivity and best homogeneity. Signal voltages, temperature resistance, I/O control, integrated strobe controller and firmware features are aimed at applications in industrial automation.
Technical highlights:
| Model | MP | Resolution | Chroma | Sensor Size | Frame Rates (fps) |
| fxo547MXGE | 5 | 2448 x 2048 pixel | Monochrome | 8.8mm (Type 1/1.8) CMOS | 124 |
| fxo546MXGE | 8.1 | 2840 x 2840 pixel | Monochrome | 11.1mm (Type 2/3) CMOS | 88 |
| fxo545MXGE | 12.3 | 4096 x 3000 pixel | Monochrome | 14mm (Type 1/1.1) CMOS | 61 |
| fxo542MXGE | 16.1 | 5320 x 3032 pixel | Monochrome | 16.8mm (Type 1.1) CMOS | 45.6 |
| fxo541MXGE | 20.3 | 4504 x 4504 pixel | Monochrome | 17.5mm (Type 1.1) CMOS | 35.7 |
| fxo540MXGE | 24.5 | 5320 x 4600 pixel | Monochrome | 19.3mm (Type 1.2) CMOS | 30.4 |
| fxo547CXGE | 5 | 2448 x 2048 pixel | Color (Bayer) | 8.8mm (Type 1/1.8) CMOS | 124 |
| fxo546CXGE | 8.1 | 2840 x 2840 pixel | Color (Bayer) | 11.1mm (Type 2/3) CMOS | 88 |
| fxo545CXGE | 12.3 | 4096 x 3000 pixel | Color (Bayer) | 14mm (Type 1/1.1) CMOS | 61 |
| fxo542CXGE | 16.1 | 5320 x 3032 pixel | Color (Bayer) | 16.8mm (Type 1.1) CMOS | 45.6 |
| fxo541CXGE | 20.3 | 4504 x 4504 pixel | Color (Bayer) | 17.5mm (Type 1.1) CMOS | 35.7 |
| fxo540CXGE | 24.5 | 5320 x 4600 pixel | Color (Bayer) | 19.3mm (Type 1.2) CMOS | 30.4 |
SVS-Vistek SWIR cameras incorporate Sony SenSWIR technology and the proven EXO and FXO camera platforms. Thanks to their wide spectral range and high sensitivity, SVS-Vistek SWIR cameras combine the benefits of an extremely compact footprint with a range from 400nm VIS to the SWIR range at 1700nm. With an innovative thermal design, users can have outstanding optical quality and dynamic range results, potentially using a single camera for multiple areas of the light spectrum.
Key Features:
EXO Camera Link models let you maintain the existing and proven infrastructure for years to come, while making use of the newest range of image sensors. The serialized interface has gained wide popularity and acceptance thanks to its high bandwidth. The EXO series was the first Camera Link model to include features such as 4IO strobe controller and LUT.
The successful EXO series is the shining basis of the EXO Tracer. The Tracer comes with identical camera features and additionally with a fully functional lens control (focus, zoom, aperture). Lens mount is a Micro Four Thirds (MFT) mount, covering all electric connections. Due to the size of the MFT Bayonet, the Tracer is a bit larger than the original EXO in dimensions. Still, the excellent thermal concept of the EXO qualifies for a operating temperature of up to 60°C.
All MFT lenses feature a specific beam geometry on the sensor side of the lens, which works in perfect harmony to sensors between 2/3″ and 1.2″. A nearly perfect flatfield is the compelling result. Together with up to 72dB dynamic range and up to 20 MP resolution, the Tracer delivers excellent image quality with its highly sensitive sensors.
The lens properties are integrated into the camera’s GenICam 3.0 tree, any GenICam-driven software is immediately able to use lens control without additional drivers. Same thing is valid for the integrated LED strobe control: All items adjustable via GenICam properties. This permits effortless and quick machine vision integration.
Tests at SVS-Vistek showed a surprising high repeatability of the lenses, even after 1 Mio focus cycles. Focus and zoom times are similar to what you know from lenses in photography.
