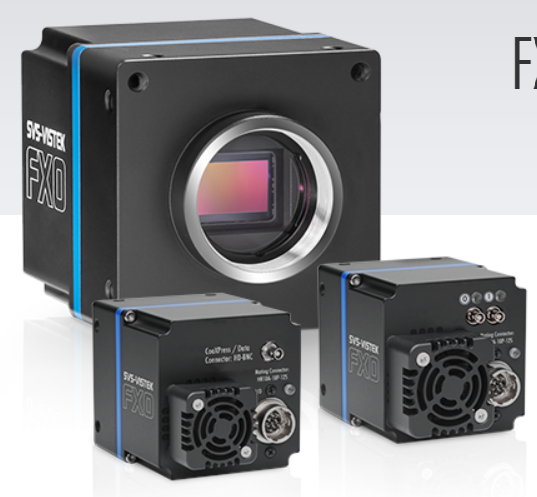

The FXO stands for excellent image quality. The fast CoaXPress-12 interface gives the camera outstanding properties in terms of trigger latency and constant data rate.
An excellent, low-noise image with high dynamics is complemented by a comprehensive feature set. The Sony Pregius S sensors used are characterized by high light sensitivity and best homogeneity. Signal voltages, temperature resistance, I/O control, integrated strobe controller and firmware features are geared towards applications in demanding industrial automation.
Technical highlights:
| Model | MP | Resolution | Chroma | Sensor Size | Frame Rates (fps) |
| fxo990MCX | 1.3 | 1280 x 1024 pixel | - | 8.2mm (Typ 1/2) CMOS | 134 |
| fxo547MCX | 5 | 2448 x 2048 pixel | Monochrome | 8.8mm (Type 1/1.8) CMOS | 124 |
| fxo546MCX | 8 | 2832 x 2840 pixel | Monochrome | 11.1mm (Type 2/3) CMOS | 88 |
| fxo545MCX | 12.3 | 4096 x 3000 pixel | Monochrome | 14mm (Type 1/1.1) CMOS | 61 |
| fxo542MCX | 16.1 | 5320 x 3032 pixel | Monochrome | 16.8mm (Type 1.1) CMOS | 45.6 |
| fxo541MCX | 20.2 | 4480 x 4504 pixel | Monochrome | 17.5mm (Type 1.1) CMOS | 35.7 |
| fxo540MCX | 24.4 | 5312 x 4600 pixel | Monochrome | 19.3mm (Type 1.2) CMOS | 30.4 |
| fxo547CCX | 5 | 2448 x 2048 pixel | Color (Bayer) | 8.8mm (Type 1/1.8) CMOS | 124 |
| fxo546CCX | 8 | 2832 x 2840 pixel | Color (Bayer) | 11.1mm (Type 2/3) CMOS | 88 |
| fxo487MCX | 8.1 | 2832 x 2840 pixel | - | 11.1mm (Type 2/3) CMOS | 87 |
| fxo545CCX | 12.3 | 4096 x 3000 pixel | Color (Bayer) | 14mm (Type 1/1.1) CMOS | 61 |
| fxo542CCX | 16.1 | 5320 x 3032 pixel | Color (Bayer) | 16.8mm (Type 1.1) CMOS | 45.6 |
| fxo541CCX | 20.2 | 4480 x 4504 pixel | Color (Bayer) | 17.5mm (Type 1.1) CMOS | 35.7 |
| fxo540CCX | 24.2 | 5312 x 4600 pixel | Color (Bayer) | 19.3mm (Type 1.2) CMOS | 30.4 |
The successful EXO series is the shining basis of the EXO Tracer. The Tracer comes with identical camera features and additionally with a fully functional lens control (focus, zoom, aperture). Lens mount is a Micro Four Thirds (MFT) mount, covering all electric connections. Due to the size of the MFT Bayonet, the Tracer is a bit larger than the original EXO in dimensions. Still, the excellent thermal concept of the EXO qualifies for a operating temperature of up to 60°C.
All MFT lenses feature a specific beam geometry on the sensor side of the lens, which works in perfect harmony to sensors between 2/3″ and 1.2″. A nearly perfect flatfield is the compelling result. Together with up to 72dB dynamic range and up to 20 MP resolution, the Tracer delivers excellent image quality with its highly sensitive sensors.
The lens properties are integrated into the camera’s GenICam 3.0 tree, any GenICam-driven software is immediately able to use lens control without additional drivers. Same thing is valid for the integrated LED strobe control: All items adjustable via GenICam properties. This permits effortless and quick machine vision integration.
Tests at SVS-Vistek showed a surprising high repeatability of the lenses, even after 1 Mio focus cycles. Focus and zoom times are similar to what you know from lenses in photography.
The EXO is one of the most flexible and scalable cameras for the industrial market segment. The USB3 Vision interface is easy to integrate in your system, with a data rate up to effective 360 MB/sec. Single cable interface for power an data reduces cable complexity. integrated multi channel GenICam LED light controller provides currents up to 3 A. EXO provides Plug-and-play capability for the whole range of 2.3 to 31 MP resolution.
The ECO-series is compelling by virtue of its extremely compact design (38 x 38 x 33 mm) and offers the best value for money. Resolution ranging from VGA to 5 MegaPixel combined with high frame rates. The ECO is small, robust, fit for the factory floor, manufactured with precision, safe to connect, offers an LED controller, is PLC ready and reliable.
The RAZOR series cameras incorporate the most popular sensor resolutions with the ultimate in image performance, frame rates and economy. With scalable 1, 2 or 4 output links, RAZOR cameras offer users an easy and very cost-effective upgrade path to existing Camera Link systems.
Key Features:
