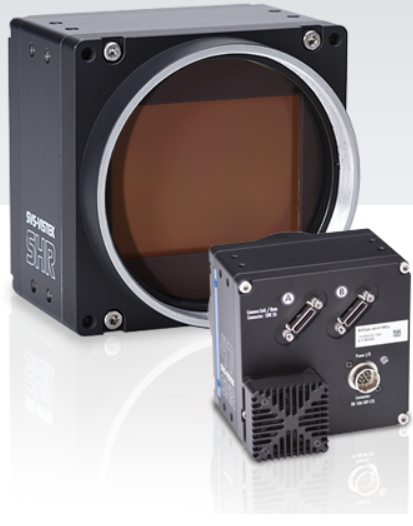

With a resolution of 47 MP 5.5µm pixels and global shutter, the SHR features a low-noise half-frame CCD multi-tap sensor that is in a class of its own. State-of-the-art tap sensor balancing and the highest structural precision of the sensor adjustment in a massive housing make the SHR with its lens shading correction the ideal partner for the most demanding optical applications.
The SHR Camera Link fits seamlessly into existing Camera Link based infrastructures. The possibilities offered by Camera Link also permit features that are not feasible with other types of interfaces.
Camera Link specific features
| Model | MP | Resolution | Chroma | Sensor Size | Frame Rates (fps) |
| hr25MCL | 25 | 5120 x 5120 pixel | M0nochrome | APS-H (32,58mm) CMOS | 31.8 |
| hr49MCL | 49 | 7008 x 7000 pixel | M0nochrome | 37.4mm CMOS | 17 (Grade 2 Sensor) |
| hr65MCL | 65 | 9344 x 7000 pixel | M0nochrome | 37.4mm CMOS | 13 |
| hr65MCL-G2 | 65 | 9344 x 7000 pixel | M0nochrome | 37.4mm CMOS | 13 (Grade 2 Sensor) |
| hr120MCL | 122 | 13272 x 9176 pixel | M0nochrome | APS-H" CMOS | 6.8 |
| hr120MCL-F | 122 | 13272 x 9176 pixel | M0nochrome | APS-H" CMOS | 6.8 |
| hr25CCL | 25 | 5120 x 5120 pixel | Color (Bayer) | APS-H (32,58mm) CMOS | 31.8 |
| hr49CCL | 49 | 7008 x 7000 pixel | Color (Bayer) | 37.4mm CMOS | 17 (Grade 2 Sensor) |
| hr65CCL | 65 | 9344 x 7000 pixel | Color (Bayer) | 37.4mm CMOS | 13 |
| hr65CCL-G2 | 65 | 9344 x 7000 pixel | Color (Bayer) | 37.4mm CMOS | 13 (Grade 2 Sensor) |
| hr120CCL-F | 122 | 13272 x 9176 pixel | Color (Bayer) | APS-H" CMOS | 6.8 |
| hr120CCL | 122 | 13272 x 9176 pixel | Color (Bayer) | APS-H" CMOS | 6.8 |
Key Features:
Our ultraviolet cameras are based on the proven design of the FXO series. The fast CoaXPress-12 interface provides outstanding performance in terms of ultra-low trigger latency, faster frame rate and constant data rate. The 10GigE interface option is an economical, highly stable alternative with advantages for long data lines up to 100m. Sony Pregius UV sensors combine high resolution, high dynamic range and superior sensitivity in the wavelength range of 200 – 400 nm.
Our ultraviolet cameras are optimized for deployment in industrial automation processes thanks to advanced signal voltages, temperature stability, I/O control, integrated strobe controller, and feature-rich firmware.
Technical highlights:
The successful EXO series is the shining basis of the EXO Tracer. The Tracer comes with identical camera features and additionally with a fully functional lens control (focus, zoom, aperture). Lens mount is a Micro Four Thirds (MFT) mount, covering all electric connections. Due to the size of the MFT Bayonet, the Tracer is a bit larger than the original EXO in dimensions. Still, the excellent thermal concept of the EXO qualifies for a operating temperature of up to 60°C.
All MFT lenses feature a specific beam geometry on the sensor side of the lens, which works in perfect harmony to sensors between 2/3″ and 1.2″. A nearly perfect flatfield is the compelling result. Together with up to 72dB dynamic range and up to 20 MP resolution, the Tracer delivers excellent image quality with its highly sensitive sensors.
The lens properties are integrated into the camera’s GenICam 3.0 tree, any GenICam-driven software is immediately able to use lens control without additional drivers. Same thing is valid for the integrated LED strobe control: All items adjustable via GenICam properties. This permits effortless and quick machine vision integration.
Tests at SVS-Vistek showed a surprising high repeatability of the lenses, even after 1 Mio focus cycles. Focus and zoom times are similar to what you know from lenses in photography.
Camera Link offers high data rates, deterministic timing and very direct access to the image sensor. Our high resolution industrial cameras with Camera Link provide a wide range of core features:
Camera Link permits settings and operating modes that are not available with other interfaces:
