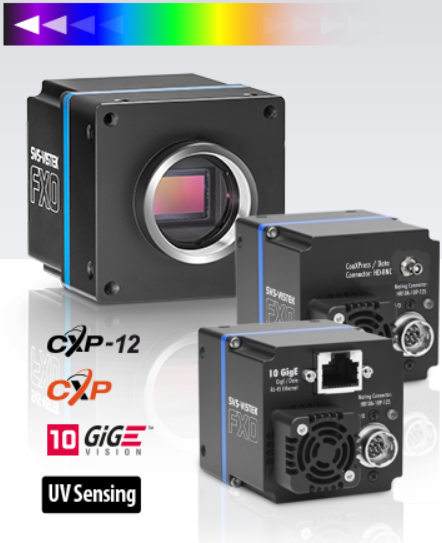

Our ultraviolet cameras are based on the proven design of the FXO series. The fast CoaXPress-12 interface provides outstanding performance in terms of ultra-low trigger latency, faster frame rate and constant data rate. The 10GigE interface option is an economical, highly stable alternative with advantages for long data lines up to 100m. Sony Pregius UV sensors combine high resolution, high dynamic range and superior sensitivity in the wavelength range of 200 – 400 nm.
Our ultraviolet cameras are optimized for deployment in industrial automation processes thanks to advanced signal voltages, temperature stability, I/O control, integrated strobe controller, and feature-rich firmware.
Technical highlights:
SVS-Vistek SWIR cameras incorporate Sony SenSWIR technology and the proven EXO and FXO camera platforms. Thanks to their wide spectral range and high sensitivity, SVS-Vistek SWIR cameras combine the benefits of an extremely compact footprint with a range from 400nm VIS to the SWIR range at 1700nm. With an innovative thermal design, users can have outstanding optical quality and dynamic range results, potentially using a single camera for multiple areas of the light spectrum.
The EXO is one of the most flexible and scalable cameras for the industrial market segment. The USB3 Vision interface is easy to integrate in your system, with a data rate up to effective 360 MB/sec. Single cable interface for power an data reduces cable complexity. integrated multi channel GenICam LED light controller provides currents up to 3 A. EXO provides Plug-and-play capability for the whole range of 2.3 to 31 MP resolution.
The successful EXO series is the shining basis of the EXO Tracer. The Tracer comes with identical camera features and additionally with a fully functional lens control (focus, zoom, aperture). Lens mount is a Micro Four Thirds (MFT) mount, covering all electric connections. Due to the size of the MFT Bayonet, the Tracer is a bit larger than the original EXO in dimensions. Still, the excellent thermal concept of the EXO qualifies for a operating temperature of up to 60°C.
All MFT lenses feature a specific beam geometry on the sensor side of the lens, which works in perfect harmony to sensors between 2/3″ and 1.2″. A nearly perfect flatfield is the compelling result. Together with up to 72dB dynamic range and up to 20 MP resolution, the Tracer delivers excellent image quality with its highly sensitive sensors.
The lens properties are integrated into the camera’s GenICam 3.0 tree, any GenICam-driven software is immediately able to use lens control without additional drivers. Same thing is valid for the integrated LED strobe control: All items adjustable via GenICam properties. This permits effortless and quick machine vision integration.
Tests at SVS-Vistek showed a surprising high repeatability of the lenses, even after 1 Mio focus cycles. Focus and zoom times are similar to what you know from lenses in photography.
The ECO-series is compelling by virtue of its extremely compact design (38 x 38 x 33 mm) and offers the best value for money. Resolution ranging from VGA to 5 MegaPixel combined with high frame rates. The ECO is small, robust, fit for the factory floor, manufactured with precision, safe to connect, offers an LED controller, is PLC ready and reliable.
