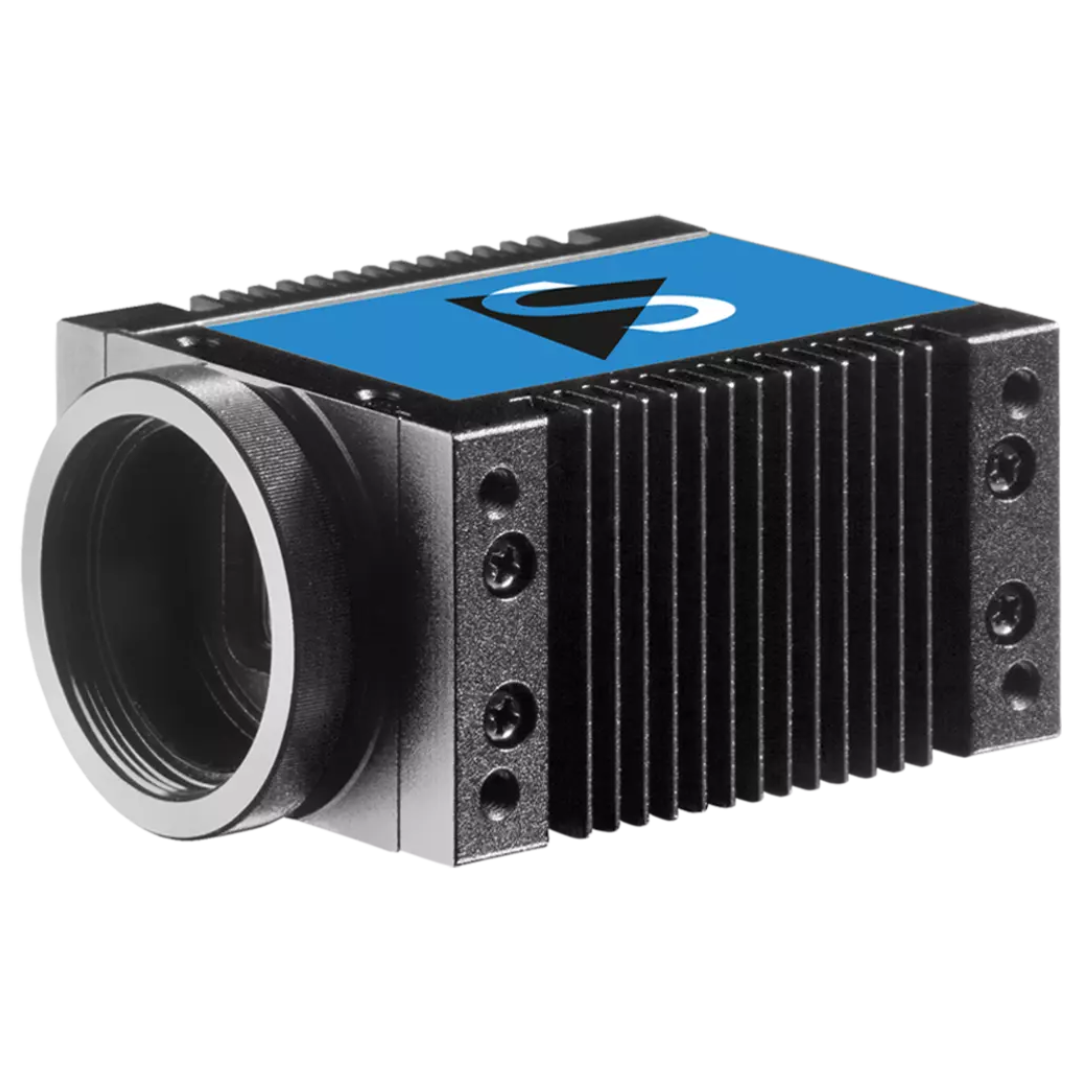

Features:
● Sony Pregius and STARVIS sensors
● Frame buffer
● Onboard image pre-processing
| Product code | Megapixel | Resolution | FPS | Format | Sensor | Auto iris control | Trigger | I/Os | Sensor type | Shutter |
|---|---|---|---|---|---|---|---|---|---|---|
| DFK 33GP1300e | 1.3 MP | 1,280×1,024 | 90 | 1/2 inch | PYTHON 1300 | ✘ | ✔ | ✔ | CMOS Python | global |
| DFK 33GX290e | 2.1 MP | 1,920×1,080 | 56 | 1/2.8 inch | IMX290 | ✘ | ✔ | ✔ | CMOS STARVIS | rolling |
| DFK 33GX174e | 2.3 MP | 1,920×1,200 | 50 | 1/1.2 inch | IMX174 | ✘ | ✔ | ✔ | CMOS Pregius | global |
| DFK 33GX249e | 2.3 MP | 1,920×1,200 | 48 | 1/1.2 inch | IMX249 | ✘ | ✔ | ✔ | CMOS Pregius | global |
| DFK 33GX265e | 3.1 MP | 2,048×1,536 | 36 | 1/1.8 inch | IMX265 | ✘ | ✔ | ✔ | CMOS Pregius | global |
| DFK 33GX264e | 5 MP | 2,448×2,048 | 24 | 2/3 inch | IMX264 | ✘ | ✔ | ✔ | CMOS Pregius | global |
| DFK 33GX178e | 6.3 MP | 3,072×2,048 | 19 | 1/1.8 inch | IMX178 | ✘ | ✔ | ✔ | CMOS STARVIS | rolling |
| DFK 33GJ003e | 10.7 MP | 3,856×2,764 | 11 | 1/2.3 inch | MT9J003 | ✘ | ✔ | ✔ | CMOS | rolling |
The high resolution SHR series offers outstanding image quality. This is made possible by the excellent physical characteristics of large pixels in large format sensors. The thermally highly optimized housing guarantees highest optical precision. The large M72 lens mount (FFD 19,55) can be adapted to any lens.
Highlights of the SHR series (some features only on some models)
10 GigE interface
The economical high-performance 10 GigE interface offers high data transfer speeds of up to 1.1 GB/s for these large images. A special frame grabber is not required.
10 GigE and Dual GigE Vision are the most easy way to profit of high interface bandwidth together with the advantages of standard networking technologies. An advantage is the reliable, cost-effective transmission of the image data over a distance of more than 100 m with standard network technology. The 10GigE and GigE cameras of the HR series impress with their housing concept, the wide-range lenses and the unique picture quality. The clean design according to well established standards like GigE Vision, 10 GigE Vision and GenICam ensure rapid integration into the final application.
The SHR features low-noise half-frame CCD and CMOS images sensors with large pixels in a class of its own. State-of-the-art tap sensor balancing and user defined fixed pattern noise reduction guarantee outstanding image quality. The highest structural precision of the sensor adjustment in a massive housing make the SHR with its lens shading correction the ideal partner for the most demanding optical applications.
CoaXPress specific features
CoaXPress currently is the fastest standardized industrial solution for long-distance industrial cameras with thin cables. The industrial camera I/O interface facilitates integration.
The interface standard CoaXPress was developed to meet the need for higher bandwidth generated by recently launched sensors. SVS-Vistek is providing CoaXPress cameras with 4 CXP-6 lines. Thus, the CXP data interface is providing 25 GBit/s.
The HR series with CoaXPress is focusing on latest CMOS sensors with highest resolutions. Excellent thermal design and electronics provide superb image quality and low (structured) noise. The HR is a high end industrial camera packed with features:
