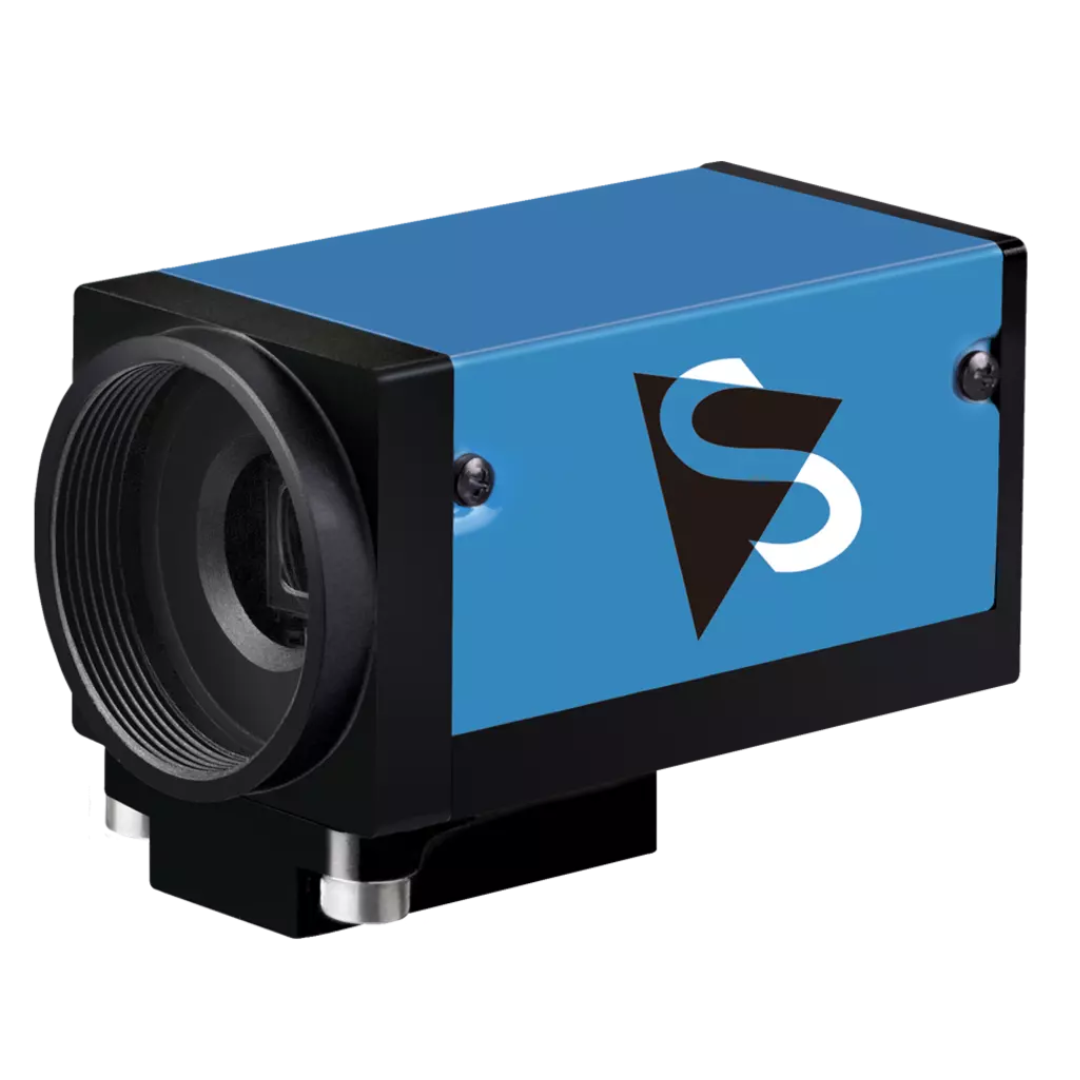

Features:
● Resolution: VGA to 5 MP
● Frame rate: Up to 75 fps
● Dimensions: 29 x 29 x 43mm
● Sony Polarsens sensors: color and monochrome
● Four-directional, on-chip polarization
● Free software for camera control
| Product code | Format | Sensor | Chroma | Trigger | I/Os | Sensor type | Shutter |
|---|---|---|---|---|---|---|---|
| DYK 33GX250 | 2/3 inch | IMX250MYR | Color | CMOS Pregius Polarsens | global | ||
| DZK 33GX250 | 2/3 inch | IMX250MZR | Mono | CMOS Pregius Polarsens | global |
A wide variety of CMOS sensors are installed in the EXO. It offers a wide range of interfaces such as GigE Vision, Camera Link and USB3 Vision, all with an integrated strobe controller.
The precisely crafted unibody housing and a wide range of CMOS sensors from Sony and CMOSIS form the basis for this versatile industrial camera. The EXO is easy to integrate thanks to the large number of standardized mounting holes and offers a stable connection for any type of lens.
With an excellent image, outstanding temperature performance, multiple inputs, PLC functionality and a multichannel strobe controller, the EXO offers an extremely flexible, powerful and economical overall package.
Small, very robust, easy to integrate: The EXO Camera Link series offers resolutions from 2.3 to 20.2 MP.
The EXO series with GigE Vision interface offers cameras with resolutions from 1.6 to 24.5 MP.
Particularly versatile: The EXO series with USB3 interface offers resolutions from 2.3 MP (160 fps) to 31.4 MP (12 fps).
The EXO Tracer series with MFT mount is available with GigE Vision and USB3 interface.
A close thermal connection of the low-power optimized electronics and the sensor to the unibody housing enables operating temperatures of 60°C for most EXOs. The EXO is available with the established GigE Vision, Camera Link and USB3 Vision interfaces and supports the latest standards such as GenICam 3.0 and USB 3.1. In the tracer version, it controls all lens functions such as zoom, focus and iris with its MFT bayonet. The integrated power I/O interface enables simple control tasks to be performed with hardware precision via the PLC functionality and/or up to 4 LED lights to be controlled directly without additional drivers.
The EXO series therefore fulfills a wide range of different requirements: A robust and precise industrial camera, extremely scalable with a wide range of CMOS sensors, easy to integrate thanks to standardized pinouts and consistent dimensions, extremely flexible due to availability in the most important interface standards and rich in important features.
The HR series combines high-resolution image sensors with powerful machine vision interfaces. With state-of-the-art interfaces, the HR achieves data rates of up to 50 Gbit/s and resolutions of up to 122 MP.
The 10GigE version also offers a world first: thermoelectric cooling/heating and an innovative ventilation system ensure an absolutely stable sensor temperature and therefore excellent image quality.
The HR series, equipped with state-of-the-art 10GigE interface and resolutions up to 65 MP, sets new standards in terms of speed, reliability, and flexibility. Thanks to the brand new TEC technology in the -T versions, these HR cameras deliver an unbeatable stable image even at fluctuating temperatures.
The HR CXP-6 and CXP-12 cameras are equipped with the latest CoaXPress technology, which enables lightning-fast data transfer speeds of up to 12.5 Gbps per channel. This not only ensures seamless integration into existing systems, but also the ability to capture and process high-resolution images in real time.
The HR series with Camera Link Interface combines the advantages of this interface, the performance, with safe and easy handling.
HR series cameras combine high resolutions with high data rates. The elaborately designed solid housing ensures excellent temperature management, which guarantees stable operation even with large sensors. The HR series is ideally equipped with the latest machine vision interfaces (10GigE Vision, Camera Link, CoaXPress).
High-resolution sensors require special care when adjusting the homogeneity of the image. Shading correction for demanding optical tasks and user-defined Defect Pixel Correction ensure outstanding linearity, homogeneity and low noise.
The M58 lens thread was designed so that almost all lenses can be connected using appropriate adapters (F-mount and EF-mount) and can be optimally adapted to your imaging task.
The IO concept offers programmable IO logic, sequencer, timer, SafeTrigger and an integrated 4-channel LED flash controller. The controller integrated in the GenICam tree of the camera can be controlled via any GenICam application (e.g. HALCON, MERLIC, MatLab, VisionPro) or the SV-Capture from the SVS-Vistek SDK.
The high resolution enables an extremely wide field of view and makes the HR series ideal for applications such as optical metrology, quality control and monitoring of large areas. The HR is available with 10GigE, CoaXPress or Camera Link interface.
Features:
● Compatible to UVC and USB3 Vision
● Sony Pregius and Pregius S CMOS sensors
● Onboard image pre-processing
Having superb image quality, the all-new IC-X25B-CL provides the best performance-for-value ratio of all of ISVI’s new compact cameras. Using its Full Configuration Camera Link interface it achieves a frame rate of 30Hz. Its compact size and wide selection of standard lens mounts makes it a popular choice for users requiring a high-resolution camera but do not need the high frame rates of our CXP cameras.
Key Features:
