Application:
| Model | Optics | Electric | Size (External x Internal x Height) | Weight (g) | ||||
| Color | Working distance (mm) | Light Emitting L x W (mm) | Voltage (V) | W (2) * | ||||
| Red | White, Blue, Green | |||||||

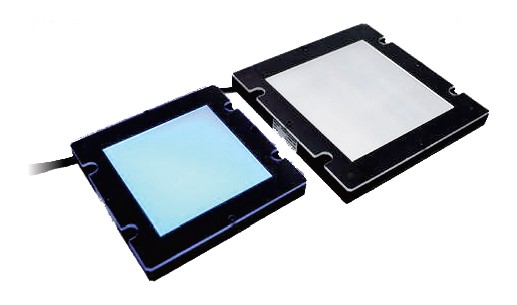

| BLNP-25x25-00 | Red, White, Blue, Green | 30-100 | 25x25 | 24 | 1.5 | 3 | 60x60x11.5 | 150 |
| BLNP-50x50-00 | Red, White, Blue, Green | 30-100 | 50x50 | 24 | 2.3 | 4 | 85x85x11.5 | 170 |
| BLNP-70x70-00 | Red, White, Blue, Green | 30-100 | 70x70 | 24 | 3 | 7 | 105x105x11.5 | 240 |
| BLNP-90x90-00 | Red, White, Blue, Green | 30-100 | 90x90 | 24 | 3.8 | 6.2 | 125x125x11.5 | 370 |
| BLNP-110x110-00 | Red, White, Blue, Green | 30-100 | 110x110 | 24 | 4.2 | 6.8 | 145x145x11.5 | 470 |
| BLNP-150x100-00 | Red, White, Blue, Green | 30-100 | 150x100 | 24 | 4.5 | 8.5 | 185x135x11.5 | 490 |
| BLNP-200x160-00 | Red, White, Blue, Green | 30-100 | 200x160 | 24 | 6 | 10 | 235x195x11.5 | 820 |
| BLNP-200x200-00 | Red, White, Blue, Green | 30-100 | 200x200 | 24 | 12 | 20 | 235x235x11.5 | 1020 |
| BLNP-250x200-00 | Red, White, Blue, Green | 30-100 | 250x200 | 24 | 6 | 12 | 285x235x11.5 | 1240 |
| BLNP-300x200-00 | Red, White, Blue, Green | 30-100 | 300x200 | 24 | 9 | 15 | 335x235x11.5 | 1450 |
| BLNP-300x300-00 | Red, White, Blue, Green | 30-100 | 300x300 | 24 | 18 | 30 | 335x335x11.5 | 1980 |
| BLNP-400x300-00 | Red, White, Blue, Green | 30-100 | 400x300 | 24 | 10 | 17 | 435x335x11.5 | 2500 |
| BLNP-600x400-00 | Red, White, Blue, Green | 30-100 | 600x400 | 24 | 18 | 26 | 635x435x11.5 | 4480 |
The L300G2 linear light features an integrated Multi-Drive™ driver that can produce up to 390,000 lux. NPN or PNP triggers can control the light for either OverDrive™ or continuous operation. Control light intensity via 1 – 10 VDC analog intensity line or remotely using SmartVisionLink™. Daisy-chain up to six L300G2 lights in series using a standard 5-pin M12 jumper cable.
The modular design of the ODLX300 linear light, part of the Direct Connect Linear Light Series, offers integrated light-to-light connectors, eliminating the need for cable connectors to string lights together. The light operates in OverDrive™ strobe-only mode. This innovative design requires a power connection to the first light but eliminates the need for jumper cables to pass power through to the next, enabling tailored-length solutions in increments of 300 mm. Direct connect up to eight ODLX300 together.
The ODL300 Bar/Linear Light utilizes 12 high-intensity LEDs and features an integrated OverDrive™ strobe driver with a maximum strobe rate of 5000 strobes per second. NPN or PNP trigger signals can be used to control the pulse of the light. The intensity of the light can be controlled via 1-10VDC analog signal line or manual potentiometer. Daisy-chain up to six ODL300 lights together.
The modular design of the LXB300 linear light, part of the Direct Connect Linear Light Series, offers integrated light-to-light connectors, eliminating the need for cable connectors to string lights together. The LXB300 features a factory-installed 2447 diffuser backlight lens and is a viable option for silhouetting objects. The light operates in continuous operation. This innovative design requires a power connection to the first light but eliminates the need for jumper cables to pass power through to the next, enabling tailored-length solutions in increments of 300 mm. Direct connect up to eight LXB300 together.
