Benefits:
Application:

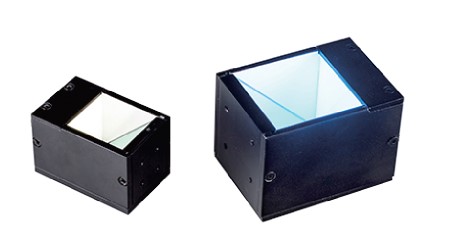

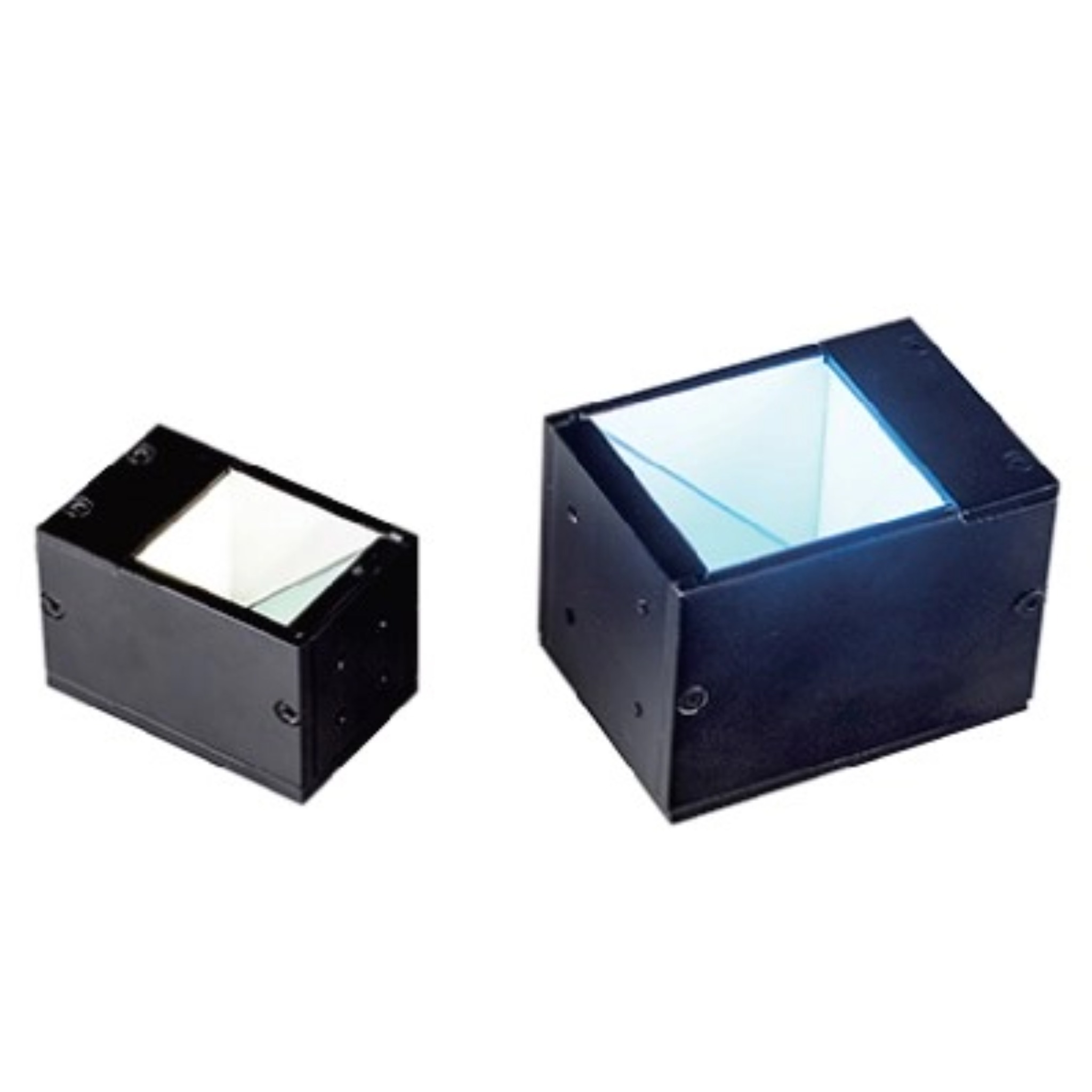

| Model | Optics | Electric | Size L x W x H (mm) | Weight (g) | |||
| Color | Light Emitting L x W (mm | Voltage (V) | W * | ||||
| Red | White, Blue, Green | ||||||
| CAL-20-00 | Red, White, Blue, Green | 20x20 | 24 | 2.2 | 2.1 | 64x31x27 | 110 |
| CAL-30-00 | Red, White, Blue, Green | 30x30 | 24 | 1.8 | 2.5 | 74x40x37 | 135 |
| CAL-40-00 | Red, White, Blue, Green | 40x40 | 24 | 2.7 | 3.7 | 86x50x47 | 220 |
| CAL-50-00 | Red, White, Blue, Green | 50x50 | 24 | 5.3 | 6.1 | 96x60x57 | 320 |
| CAL-60-00 | Red, White, Blue, Green | 60x60 | 24 | 7.2 | 9.8 | 106x70x67 | 420 |
| CAL-70-00 | Red, White, Blue, Green | 75x73 | 24 | 10.1 | 12.0 | 120x85.4x79 | 590 |
| CAL-80-00 | Red, White, Blue, Green | 85x83 | 24 | 13.2 | 17.1 | 130x95.4x89 | 710 |
| CAL-100-00 | Red, White, Blue, Green | 100x100 | 24 | 17.7 | 26.8 | 146x110x107 | 1010 |
| CAL-120-00 | Red, White, Blue, Green | 120x120 | 24 | 21.2 | 27.0 | 166x130x127 | 1400 |
| CAL-150x120-00 | Red, White, Blue, Green | 150x120 | 24 | 22.5 | 20.7 | 166x160x127 | 1660 |
| CAL-200x180-00 | Red, White, Blue, Green | 200x180 | 24 | 24.2 | 25.2 | 310x212x187 | 4800 |
| CAL-240x180-00 | Red, White, Blue, Green | 240x180 | 24 | 35 | 45 | 262x197x264.5 | 6000 |
The LHI-DO Series is an OverDriveTM only light source meant to provide external illumination for logistics. This light can be used to create tunnel systems capable of illuminating any package of any size and ensure perfect readability no matter the shape or material. The LHI-DO Series is available in 300- and 600 mm lengths.
Get more light with less power with exceptional energy management
Our specially designed onboard charging capacitors ensure powerful bursts of energy with a low consistent electrical draw.
The Lightgistics Series: Brighter. Faster. Better.
The LHI-DO is part of the Lightgistics Series – machine vision lights made for the logistics industry.
The LM45 compact linear light features an integrated Multi-Drive™ constant-current driver that operates in continuous operation or in OverDrive™ strobe mode depending on the wiring method. The light can be mounted via a rear T-slot channel, also offers over-current protection and PNP and NPN strobe trigger inputs. With housing 51 mm long, the LM45 puts out unprecedented levels of light in one of the industry’s smallest footprints.
The modular design of the ODLX300 linear light, part of the Direct Connect Linear Light Series, offers integrated light-to-light connectors, eliminating the need for cable connectors to string lights together. The light operates in OverDrive™ strobe-only mode. This innovative design requires a power connection to the first light but eliminates the need for jumper cables to pass power through to the next, enabling tailored-length solutions in increments of 300 mm. Direct connect up to eight ODLX300 together.
The LW300 series features a 100% waterproof stainless-steel enclosure specially designed for the food industry and washdown environments where water and harsh detergents are present. The LW300 features an integrated constant current driver built into the light and runs in continuous operation mode. NPN or PNP trigger signal inputs can be used to control the on/off input of the light. The intensity of the light can be controlled via 1-10VDC analog signal line or the onboard manual potentiometer. Daisy-chain up to six LW300 lights together.
