| Model | Optics | Electric | Size L x W x H (mm) | Weight (g) | |||
| Color | Light Emitting L x W (mm | Voltage (V) | W * | ||||
| Red | White, Blue, Green | ||||||

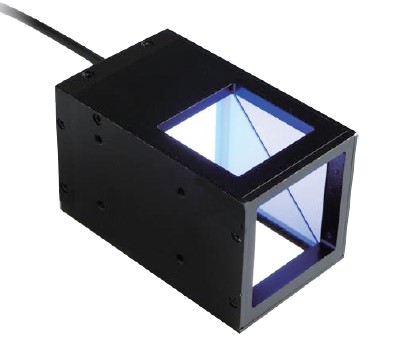

| CALP-30-00 | Red, White, Blue, Green | 30x29 | 24 | 1.7 | 2.2 | 74x40x37 | 130 |
| CALP-50-00 | Red, White, Blue, Green | 50x49 | 24 | 5.5 | 5.5 | 96x60x57 | 310 |
| CALP-60-00 | Red, White, Blue, Green | 60x60 | 24 | 6.1 | 12.1 | 106x70x67 | 420 |
| CALP-70-00 | Red, White, Blue, Green | 75x73 | 24 | 7.8 | 14.4 | 120x79x85.4 | 590 |
The modular design of the LX300 linear light, part of the Direct Connect Linear Light Series, offers integrated light-to-light connectors, eliminating the need for cable connectors to string lights together. The light operates in continuous operation. This innovative design requires a power connection to the first light but eliminates the need for jumper cables to pass power through to the next, enabling tailored-length solutions in increments of 300 mm. Direct connect up to eight LX300 together.
The L300 Bar/Linear Light utilizes 12 high-intensity LEDs and features an integrated constant current driver built into the light. Connect-a-Light Series of Linear Lights uses 24VDC and can operate in continuous mode. NPN or PNP strobe triggers can be used to control the on/off input of the light. Control intensity via a 1-10V analog signal line or manual potentiometer. Daisy-chain up to six L300 lights together.
The LM75 compact linear light features an integrated Multi-Drive™ constant-current driver that operates in continuous operation or in OverDrive™ strobe mode depending on the wiring method. The light can be mounted via a rear T-slot channel, also offers over-current protection and PNP and NPN strobe trigger inputs. The LM75 has a 80 mm long housing and features 8 high-current LEDs.
The LC300 features 12 high-bright LEDs, operates in continuous mode, and includes a built-in constant-current driver. The LC300 is a more cost effective light due to the analog intensity control line not being included and not being capable of daisy-chaining to additional linear lights. NPN or PNP trigger signals can be used to control the on/off input of the light.
The Right Light for Your Application
