| Model | Optics | Electric | Size L x W x H (mm) | Weight (g) | |||
| Color | Light Emitting L x W (mm | Voltage (V) | W * | ||||
| Red | White, Blue, Green | ||||||

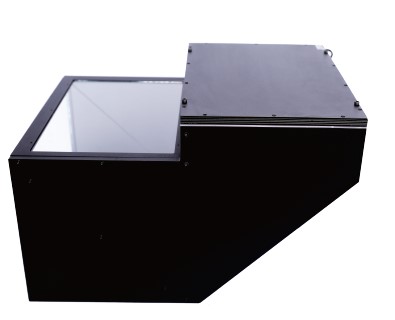

| CPL-100x80-00 | Red, White, Blue, Green | 100x80 | 24 | 6.2 | 11.8 | 208x155x130 | 2300 |
| CPL-220x155-00 | Red, White, Blue, Green | 220x155 | 24 | 14.5 | 23.6 | 370x255x240 | 4200 |
The modular design of the LXB300 linear light, part of the Direct Connect Linear Light Series, offers integrated light-to-light connectors, eliminating the need for cable connectors to string lights together. The LXB300 features a factory-installed 2447 diffuser backlight lens and is a viable option for silhouetting objects. The light operates in continuous operation. This innovative design requires a power connection to the first light but eliminates the need for jumper cables to pass power through to the next, enabling tailored-length solutions in increments of 300 mm. Direct connect up to eight LXB300 together.
The LB300 array utilizes 12 high-intensity LEDs, features an integrated constant current driver built into the light and operates in continuous operation. The LB300 features a factory-installed 2447 diffuser backlight lens and is a viable option for silhouetting objects. NPN or PNP trigger signals can be used to control the on/off input of the light. The intensity of the light can be controlled via 1-10VDC analog signal line or manual potentiometer. Daisy-chain up to six LB300 lights together.
he LZE300, a SmartVisionLink™ enabled linear light, has similar features and functions as the LXE300, with the addition of communication with a SmartVisionLink™ managing device, such as the BTM-1000. When the LZE300 is connected to the BTM-1000, its intensity can be fully controlled, either for the entire light or for each of the three LED zones. Individual zones may also be turned off. The standard LZE300 has a 12 LED configuration.
The LZE300 is available in three different connector options:
The LZE300 also comes with NanoDrive technology, which enables a faster “on” and “off” compared to other technology.
The LW300 series features a 100% waterproof stainless-steel enclosure specially designed for the food industry and washdown environments where water and harsh detergents are present. The LW300 features an integrated constant current driver built into the light and runs in continuous operation mode. NPN or PNP trigger signal inputs can be used to control the on/off input of the light. The intensity of the light can be controlled via 1-10VDC analog signal line or the onboard manual potentiometer. Daisy-chain up to six LW300 lights together.
