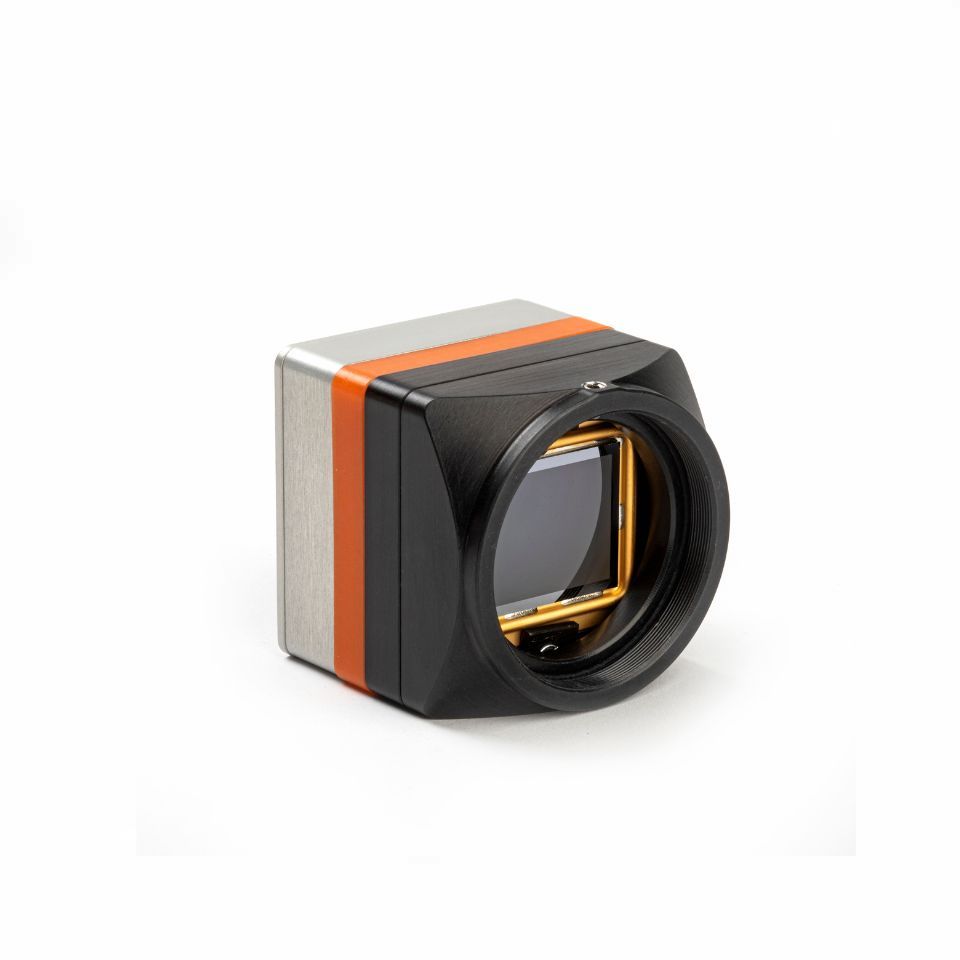

The Dione 1024 CAM series is based upon the Dione 1024 OEM thermal imaging core with 1024×768 pixels and 12 μm pixel pitch. The NETD is less than 40 mK (available upon request) or 50 mK. The maximum frame rate is 80 Hz.
Dione 1024 CAM is a LWIR uncooled thermal imaging SWaP module with housing supporting M34/M45 lens (optional).
Dione 1024 CAM series benefit from Xenics image enhancement for advanced image processing while keeping power consumption low. Moreover, GenICam compliance and the availability of multiple lenses (optional) provides a high level of tunability for optimal integration into many systems.
The compact Dione 1024 CAM series find applications in safety and security, transportation and industrial process monitoring.
Benefits and Features
• Ultra-compact size, low weight and power (SWaP)
• 1024×768 microbolometer detector with 12 μm pixel pitch
• Frame rates up to 80 Hz
• Detector NETD is less than 40 mK (available upon request) or 50 mK
• Uncooled and shutterless
| Dione 1024 CAM 40 mK | Dione 1024 CAM 50 mK | |
| Approximate dimensions - excluding lens [width x height x length] [mm] | 40 x 40 x 34* | 50 x 50 x 35* | 40 x 40 x 34* | 50 x 50 x 35* |
| Weight [gr] - excluding lens | 78* | 80* | 78* | 80* |
| Optical interface (optional) | M34x0.5 or M45x0.75 | M34x0.5 or M45x0.75 |
| Connector general I/O | SAMTEC ST5-30-1.50-L-D-P-TR | SAMTEC ST5-30-1.50-L-D-P-TR |
| Dione 1024 CAM 40 mK | Dione 1024 CAM 50 mK | |
| Ambient operating temperature range [°C] | From -40 to +70 | From -40 to +70 |
| Storage temperature [°C] | From -40 to +85 | From -40 to +85 |
| Average power consumption | 1.9 W (at 30 Hz) & 2.1 W (at 60 Hz) | 1.9 W (at 30 Hz) & 2.1 W (at 60 Hz) |
| Power supply voltage | DC 5 V | DC 5 V |
| Shock | 40 g, 11 ms, MIL-STD810G | 40 g, 11 ms, MIL-STD810G |
| Vibration | 5 g [20 to 2000 Hz], MIL-STD810G | 5 g [20 to 2000 Hz], MIL-STD810G |
| Regulatory compliance | RoHS | RoHS |
| Dione 1024 CAM 40 mK | Dione 1024 CAM 50 mK | |
| Image format [pixels] | 1024 x 768 | 1024 x 768 |
| Pixel pitch [µm] | 12 | 12 |
| Detector type | Microbolometer | Microbolometer |
| Integration type | Rolling shutter | Rolling shutter |
| Active area and diagonal [mm] | 12.29 x 9.432 [15.49 diagonal] | 12.29 x 9.432 [15.49 diagonal] |
| Detector NETD [Noise Equivalent Temperature Difference] [mK] | <40 [at 30 Hz, 300K, F/1], available upon request | <50 [at 30 Hz, 300K, F/1] |
| Spectral range [µm] | 8 - 14 | 8 - 14 |
| Pixel operability | >99.5% | >99.5% |
| Max frame rate [full frame] [Hz] | 80 | 80 |
| Integration time range [µs] | 20 - 65 | 20 - 65 |
| Region of interest | No | No |
| Analog-to-Digital [ADC] [bits] | 16 | 16 |
| Command and control | SAMTEC ST5 connector | SAMTEC ST5 connector |
| Digital output format | 16bit DV**, MIPI CSI-2** | 16bit DV**, MIPI CSI-2** |
| Trigger | SAMTEC ST5 connector | SAMTEC ST5 connector |
