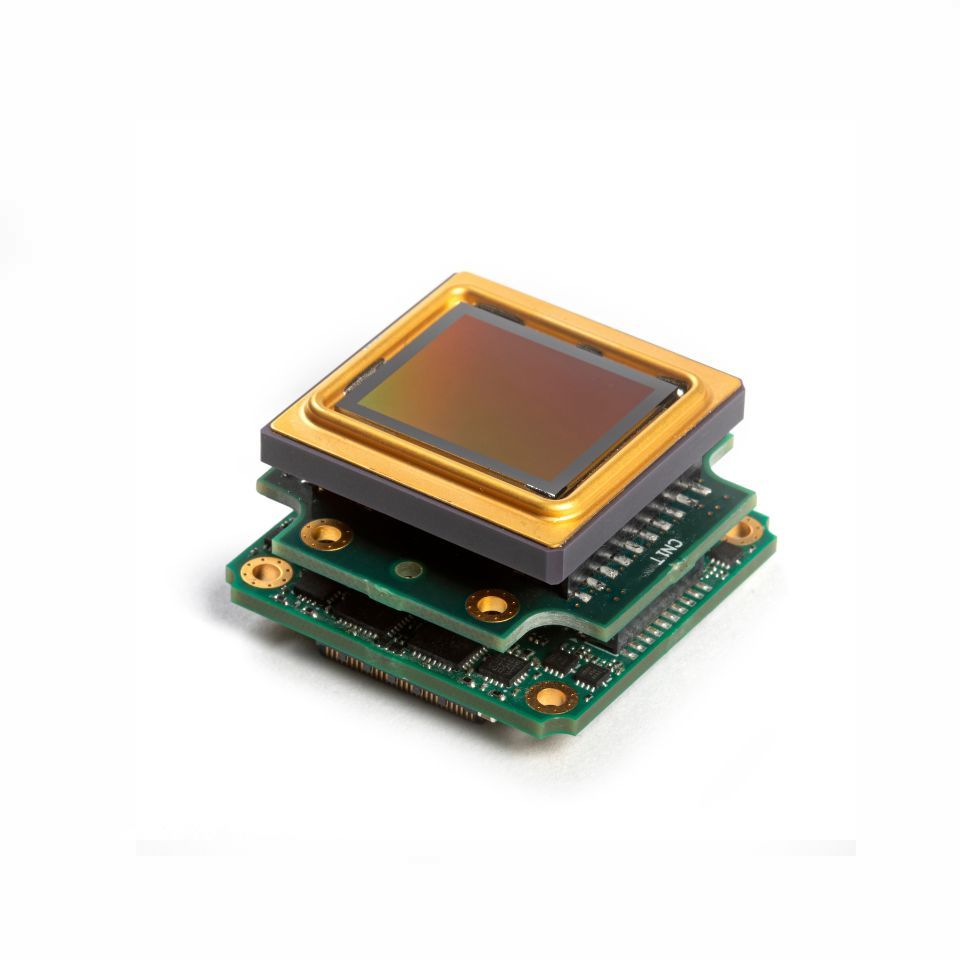

The Dione 1024 OEM Series is based on a state-of-the-art detector with 1024×768 pixels and 12 μm pixel pitch. The NETD is less than 40 mK (available upon request) or 50 mK. The maximum frame rate is 80 Hz. It utilizes Xenics image enhancement for advanced image processing while keeping power consumption low.
The cores are optimized for low SWaP (Size, Weight and Power). The overall size of the OEM core is 35x35x21.5 mm3 and the weight is 25 gr.
All Dione 1024 versions have the same SAMTEC ST5 connector and are GenICam compliant.
The compact Dione 1024 OEM series find application in safety & security, transportation and process monitoring.
Benefits and Features
• Ultra-compact size, low weight and power (SWaP)
• 1024×768 microbolometer detector with 12 μm pixel pitch
• Frame rates up to 80 Hz
• Detector NETD is less than 40 mK (available upon request) or 50 mK
• Uncooled and shutterless
| Dione 1024 OEM 40 mK | Dione 1024 OEM 50 mK | |
| Approximate dimensions - excluding lens [width x height x length] [mm] | 35 x 35 x 21.5 | 35 x 35 x 21.5 |
| Weight [gr] - excluding lens | 25 | 25 |
| Connector general I/O | SAMTEC ST5-30-1.50-L-D-P-TR | SAMTEC ST5-30-1.50-L-D-P-TR |
| Dione 1024 OEM 40 mK | Dione 1024 OEM 50 mK | |
| Ambient operating temperature range [°C] | From -40 to +70 | From -40 to +70 |
| Storage temperature [°C] | From -40 to +85 | From -40 to +85 |
| Average power consumption | 1.9 W (at 30 Hz) & 2.1 W (at 60 Hz) | 1.9 W (at 30 Hz) & 2.1 W (at 60 Hz) |
| Power supply voltage | DC 5 V | DC 5 V |
| Shock | 40 g, 11 ms, MIL-STD810G | 40 g, 11 ms, MIL-STD810G |
| Vibration | 5 g [20 to 2000 Hz], MIL-STD810G | 5 g [20 to 2000 Hz], MIL-STD810G |
| Regulatory compliance | RoHS | RoHS |
| Dione 1024 OEM 40 mK | Dione 1024 OEM 50 mK | |
| Image format [pixels] | 1024 x 768 | 1024 x 768 |
| Pixel pitch [µm] | 12 | 12 |
| Detector type | Microbolometer | Microbolometer |
| Integration type | Rolling shutter | Rolling shutter |
| Active area and diagonal [mm] | 12.29 x 9.432 [15.49 diagonal] | 12.29 x 9.432 [15.49 diagonal] |
| Detector NETD [Noise Equivalent Temperature Difference] [mK] | <40 [at 30 Hz, 300K, F/1], available upon request | <50 [at 30 Hz, 300K, F/1] |
| Spectral range [µm] | 8 - 14 | 8 - 14 |
| Pixel operability | >99.5% | >99.5% |
| Max frame rate [full frame] [Hz] | 80 | 80 |
| Integration time range [µs] | 20 - 65 | 20 - 65 |
| Region of interest | No | No |
| Analog-to-Digital [ADC] [bits] | 16 | 16 |
| Command and control | SAMTEC ST5 connector | SAMTEC ST5 connector |
| Digital output format | 16 bit DV (standard), MIPI CSI-2 (optional) | 16 bit DV (standard), MIPI CSI-2 (optional) |
| Trigger | SAMTEC ST5 connector | SAMTEC ST5 connector |
