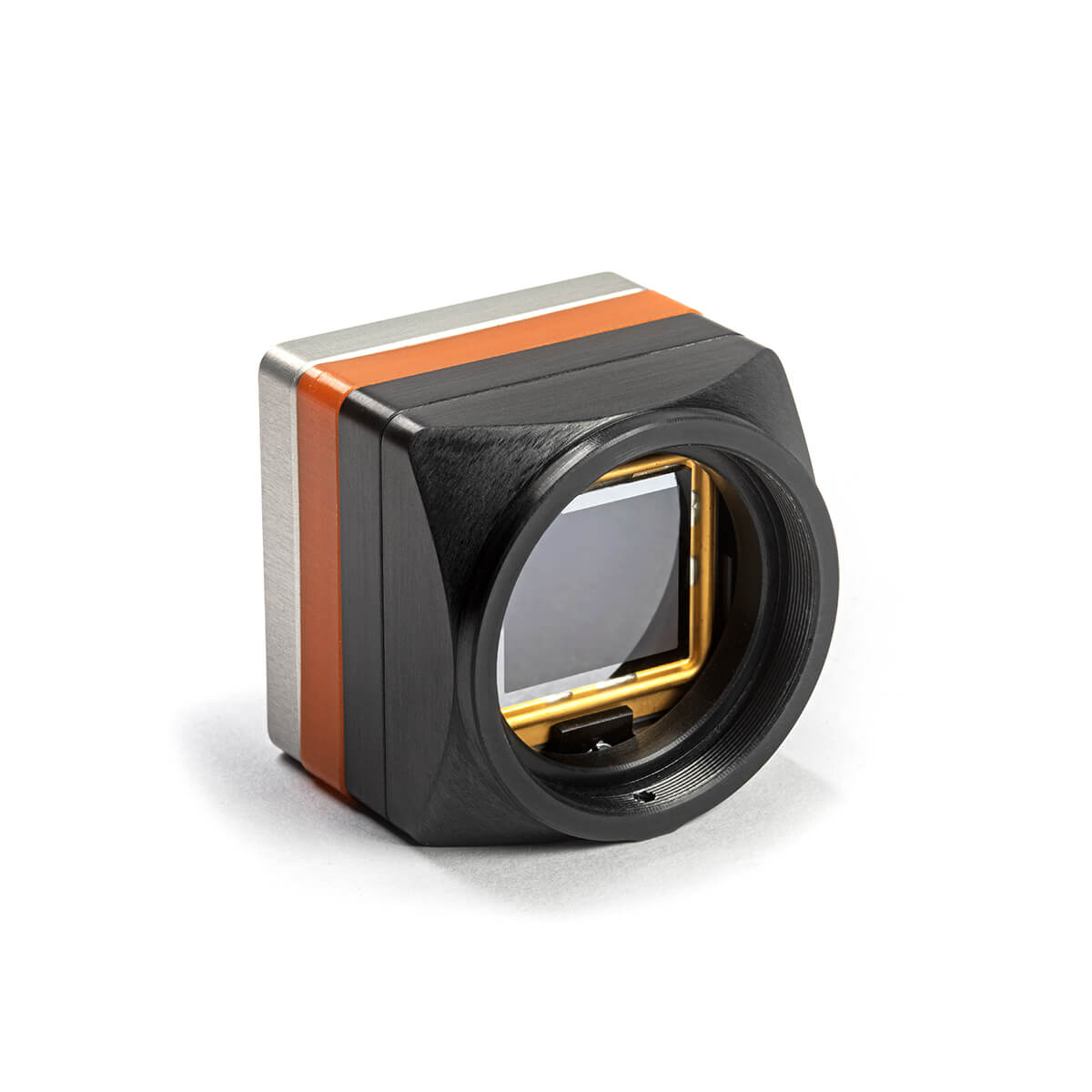

The Dione 1280 CAM series is based on the Dione 1280 OEM thermal imaging core with 1280 x 1024 pixels and 12 μm pixel pitch. The NETD is less than 40 mK (available upon request) or 50 mK. The maximum frame rate is 60 Hz.
The camera cores are optimized for low SWaP (Size, Weight and Power). The Dione 1280 CAM is both lightweight and small. It utilizes Xenics image enhancement for advanced image processing while keeping power consumption low.
Dione 1280 CAM is a LWIR uncooled thermal imaging SWAP module with housing supporting M34/M45 lens (optional).
The ultra-compact Dione 1280 CAM series find application in safety and security systems, as well as in industrial thermal imaging systems.
Benefits & Features
• State-of-the-art 1280 × 1024 microbolometer detector with 12 μm pitch
• Low SWaP (Size, Weight and Power)
• GenICam compliant
• Shutterless and uncooled operation
• Availability of multiple lenses (optional) adds flexibility to integration programs
| Dione 1280 CAM 40 mK | Dione 1280 CAM 50 mK | |
| Approximate dimensions - excluding lens [width x height x length] [mm] | 40 x 40 x 35* | 50 x 50 x 36* | 40 x 40 x 35* | 50 x 50 x 36* |
| Weight [gr] - excluding lens | 78* | 80* | 78* | 80* |
| Optical interface | M34x0.5 or M45x0.75 | M34x0.5 or M45x0.75 |
| Connector general I/O | SAMTEC ST5-30-1.50-L-D-P-TR | SAMTEC ST5-30-1.50-L-D-P-TR |
| Dione 1280 CAM 40 mK | Dione 1280 CAM 50 mK | |
| Ambient operating temperature range [°C] | From -40 to +70 | From -40 to +70 |
| Storage temperature [°C] | From -40 to +85 | From -40 to +85 |
| Average power consumption | 1.9 W (at 30 Hz) & 2.1 W (at 60 Hz) | 1.9 W (at 30 Hz) & 2.1 W (at 60 Hz) |
| Power supply voltage | DC 5 V | DC 5 V |
| Shock | 40 g, 11 ms, MIL-STD810G | 40 g, 11 ms, MIL-STD810G |
| Vibration | 5 g [20 to 2000 Hz], MIL-STD810G | 5 g [20 to 2000 Hz], MIL-STD810G |
| Regulatory compliance | RoHS | RoHS |
| Dione 1280 CAM 40 mK | Dione 1280 CAM 50 mK | |
| Image format [pixels] | 1280 x 1024 | 1280 x 1024 |
| Pixel pitch [µm] | 12 | 12 |
| Detector type | Microbolometer | Microbolometer |
| Integration type | Rolling shutter | Rolling shutter |
| Active area and diagonal [mm] | 15.36 x 12.29 [19.67 diagonal] | 15.36 x 12.29 [19.67 diagonal] |
| Detector NETD [Noise Equivalent Temperature Difference] [mK] | <40 [at 30 Hz, 300K, F/1], available upon request | <50 [at 30 Hz, 300K, F/1] |
| Spectral range [µm] | 8 - 14 | 8 - 14 |
| Pixel operability | >99.5% | >99.5% |
| Max frame rate [full frame] [Hz] | 60 | 60 |
| Integration time range [µs] | 20 - 65 | 20 - 65 |
| Region of interest | Yes | Yes |
| Min region size [pixels] | 80 x 80 | 80 x 80 |
| Analog-to-Digital [ADC] [bits] | 14 | 14 |
| Command and control | SAMTEC ST5 connector | SAMTEC ST5 connector |
| Digital output format | 16bit DV**, MIPI CSI-2**, USB** | 16bit DV**, MIPI CSI-2**, USB** |
| Trigger | SAMTEC ST5 connector | SAMTEC ST5 connector |
